Reliable Termination Performance for the Foxboro I/A Series

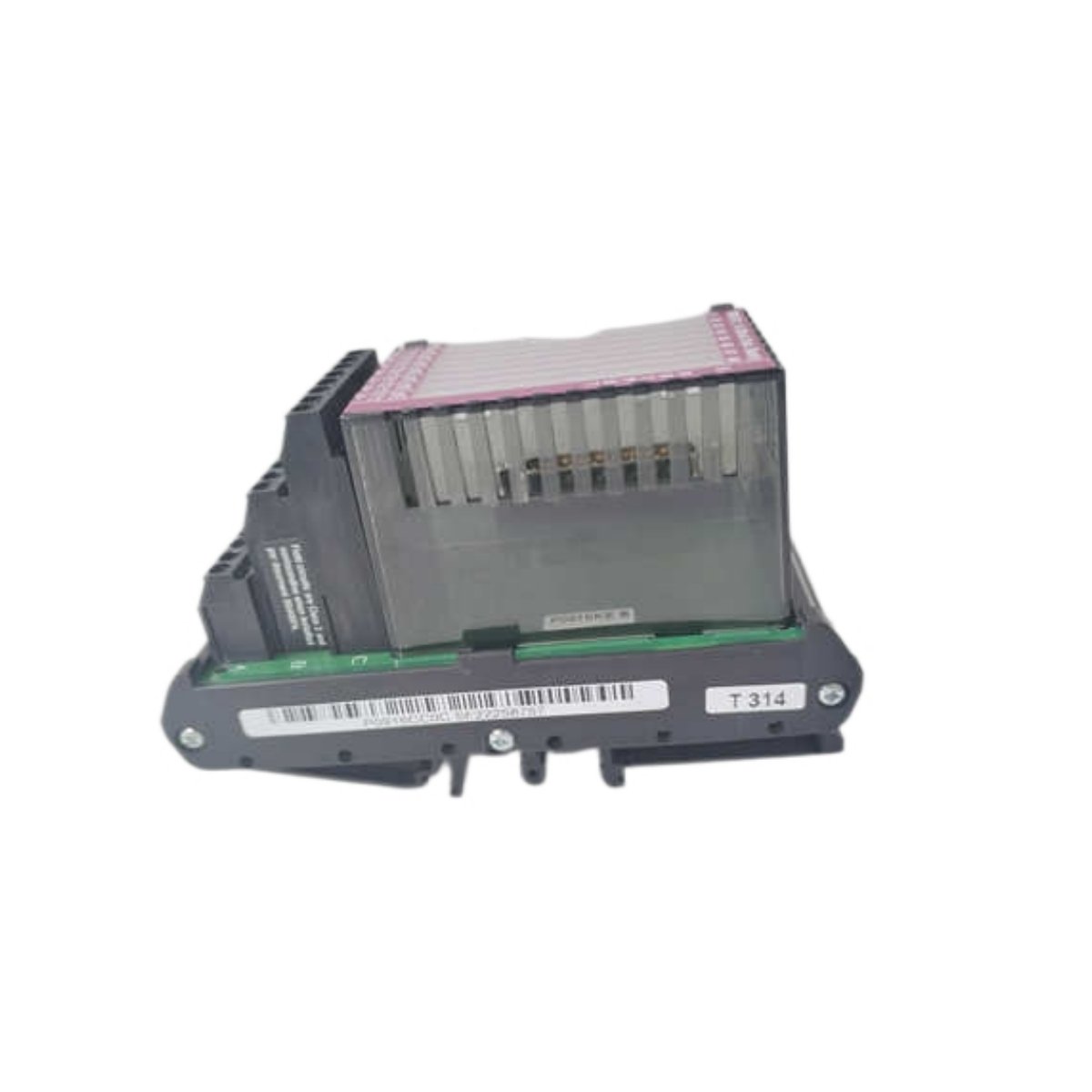

The Foxboro P0916CC Termination Module supports stable field wiring within the I/A Series architecture. I enhance the description by focusing on practical engineering value, because users often search for detailed specifications when selecting reliable termination hardware. Moreover, this module delivers consistent performance in demanding automation environments, so it remains a strong choice for industrial control panels.

Channel Capacity and Interface Design

The P0916CC module handles up to 32 input or output channels, and therefore it adapts easily to various control strategies. I emphasize connection security, since many integrators evaluate termination modules based on interface robustness. The screw-type terminal blocks create firm electrical contact and simplify wiring during installation or maintenance.

Environmental and Electrical Characteristics

Automation systems frequently run in harsh industrial conditions, so the P0916CC adopts a rugged design. It operates safely from −20°C to +70°C, and thus supports outdoor cabinets and high-temperature equipment rooms. In addition, the module maintains strong humidity resistance and protects signal integrity through excellent noise-rejection performance.

Noise Rejection and Signal Stability

To improve measurement accuracy, the P0916CC offers more than 60 dB of common-mode noise rejection at 50/60 Hz. This matters when users work with sensitive analog signals or long cable runs in noisy plants. I highlight this feature because improved CMRR directly benefits DCS reliability, which many engineers consider a key purchasing factor.

Technical Specifications

Electrical & Environmental Parameters

• Model Number: P0916CC
• Input/Output Channels: 32 channels
• Power Supply: 24 V DC (±10%)
• Noise Rejection: > 60 dB CMRR at 50/60 Hz
• Humidity Range: 5%–95% non-condensing
• Operating Temperature: −20°C to +70°C

Mechanical Interfaces

• Connector Type: Screw terminal block

Origin, Dimensions, and Weight

• Country of Origin: United States
• Dimensions: 120 mm × 75 mm × 25 mm
• Weight: 0.25 kg (0.55 lb)
