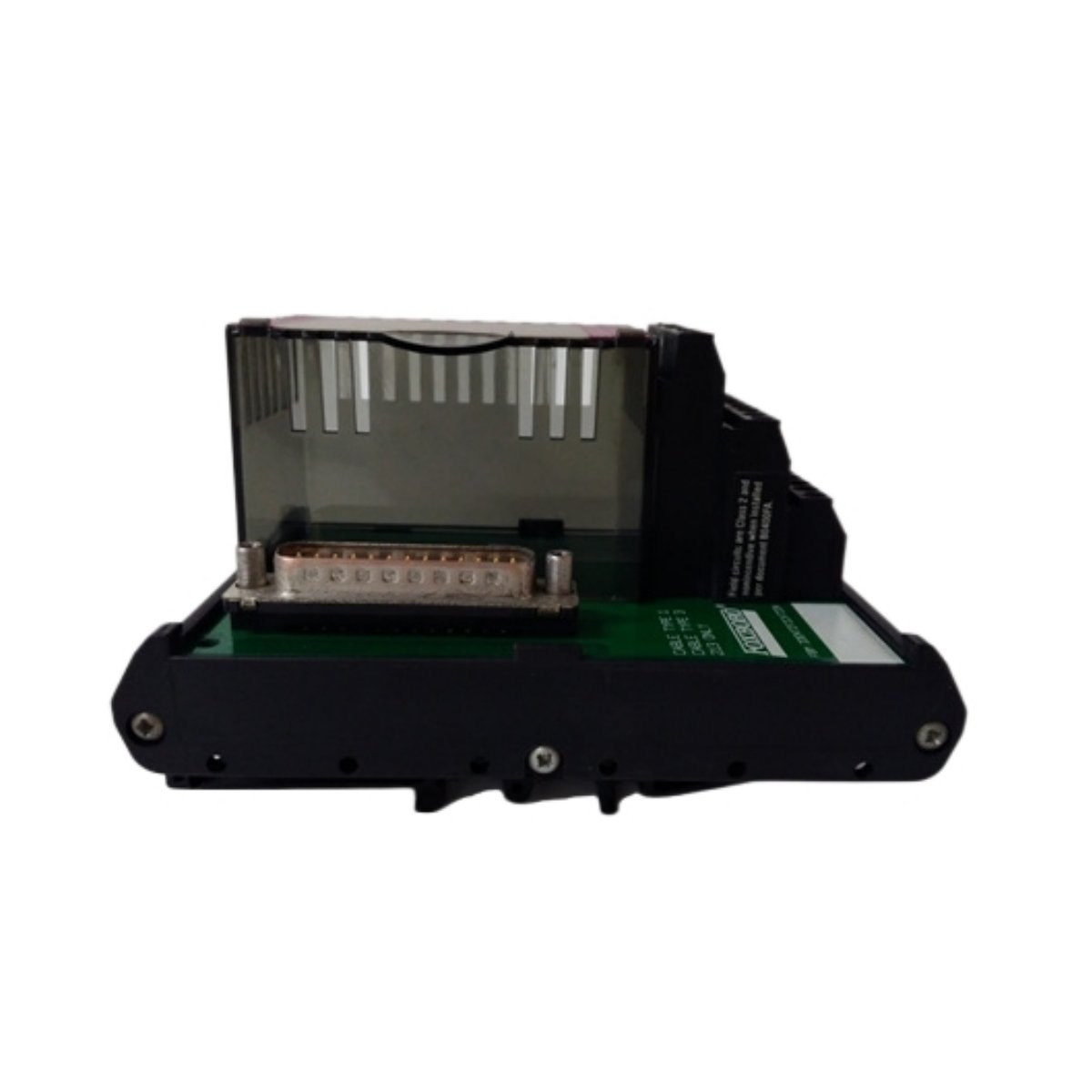

Overview of the Foxboro P0916AE Terminal Block
The Foxboro P0916AE terminal block provides reliable signal distribution for industrial automation systems. It integrates seamlessly with Foxboro I/O modules and ensures consistent electrical connectivity. Engineers select this terminal block to simplify wiring, enhance system reliability, and enable organized control panel layouts in complex installations.
Channel Configuration and Wiring Compatibility
The P0916AE terminal block supports eight channels, providing flexible connection options for various input and output signals. It accommodates solid and stranded wires from 0.2 to 4 mm², and it supports stranded wires with ferrules between 0.2 to 2.5 mm², with or without plastic collars. This flexibility reduces installation errors and allows fast system commissioning.
Mounting and Physical Features
Engineers can mount the Foxboro P0916AE easily on standard DIN rails, which ensures stable mechanical support. It supports cable lengths up to 30 meters (98 feet) without significant signal degradation. The passive feedthrough design simplifies signal routing and reduces interference within control cabinets.
Environmental Performance
The P0916AE terminal block operates reliably in temperatures from −20°C to +70°C and tolerates 5% to 95% non-condensing humidity. Its robust construction withstands typical industrial conditions, ensuring long-term signal stability and protection against environmental stressors.
Technical Specifications
| Specification | Details |
|---|---|
| Model | P0916AE |
| Mounting Type | DIN rail mount base |
| Number of Channels | 8 channels |
| Cable Length Supported | Up to 30 meters (98 feet) |
| Wiring Type | Solid/Stranded 0.2–4 mm², Stranded with ferrules 0.2–2.5 mm² |
| Connection Type | Passive feedthrough |
| Resistance Range | 0–320 ohms |
| Operating Temperature | −20°C to +70°C |
| Humidity Range | 5%–95% non-condensing |
| Weight | 0.181 kg |
Origin, Dimensions, and Weight
- Origin: United States
- Dimensions: 100 mm × 35 mm × 25 mm
- Weight: 0.181 kg
Application and Benefits
Engineers use the Foxboro P0916AE terminal block to organize and simplify wiring for Foxboro I/O modules. Its DIN rail mounting, flexible wire compatibility, and passive feedthrough design improve installation efficiency and reduce maintenance complexity in industrial automation systems.
Details
| Weight | 0.181 kg |
|---|---|
| Dimensions | 100 × 35 × 25 mm |
