Product Overview

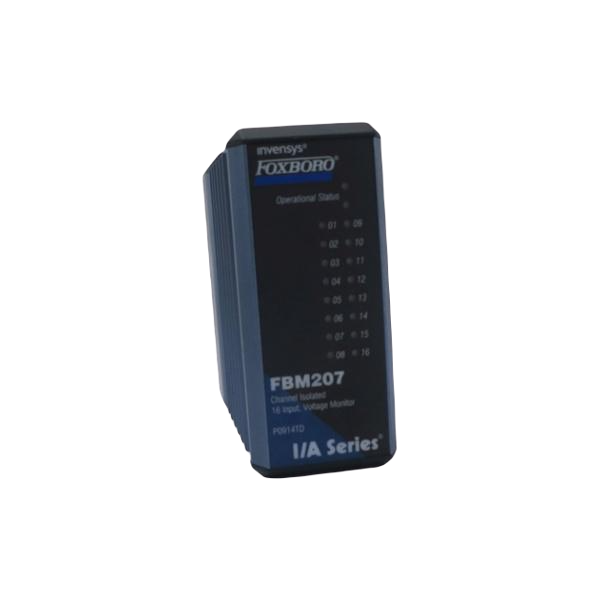

The Foxboro FBM207 P0914TD is a 16-channel isolated voltage monitoring module designed for high-reliability process control systems. Each channel operates independently, accepting signals from DC voltage sources or switch sensors, making it highly versatile. The FBM207 communicates efficiently with associated controllers through a redundant 2 Mbps Fieldbus, ensuring secure and stable data transfer.
Key Features
- Sixteen isolated channels provide accurate and interference-free monitoring.
- Wide input support for 60 V DC, 120 V AC/125 V DC, and 240 V AC.
- Pulse counting capability up to 250 Hz with no missed signals.
- Configurable debounce filtering at 0, 4, 8, 16, or 32 milliseconds.
- Robust isolation withstands 600 V AC for one minute between any channel and ground.
Technical Specifications
| Specification | Details |
|---|---|
| Channels | 16 isolated inputs |
| On-State Voltage | 15–60 V DC |
| Off-State Voltage | 0–5 V DC |
| Current Draw | 1.4 mA typical at 5–60 V DC |
| Pulse Rate Support | 0–250 Hz, no missing pulses |
| Filter/Debounce | 0, 4, 8, 16, or 32 ms configurable |
| Source Resistance (On) | Max 1 kΩ at 15 V DC |
| Source Resistance (Off) | Min 100 kΩ at 60 V DC |
| Input Voltage (Redundant) | 24 V DC +5%, -10% |
| Power Consumption | 3 W maximum |
| Heat Dissipation | 5.5 W maximum |
| Operating Temperature | -20 to +70 °C |
| Storage Temperature | -40 to +70 °C |
| Humidity | 5–95% non-condensing |
| Vibration Resistance | 7.5 m/s², 5–500 Hz |
| Contamination Resistance | Class G3 (Harsh), ISA S71.04 |
| Dimensions | 102 × 45 × 104 mm (H × W × D), 114 mm with lugs |
| Weight (Module) | 284 g |
| Termination Assembly | 272 g to 440 g depending on model |
| Isolation Rating | 600 V AC withstand, channel-to-channel and to ground |
| Part Number | FBM207 P0914TD (supersedes RH914TD) |
Applications
The FBM207 P0914TD is widely used in process industries where channel isolation and multi-voltage monitoring are essential. It supports critical tasks such as plant monitoring, switch input detection, and pulse counting with high accuracy and reliability.
Why Choose Foxboro FBM207 P0914TD?
The Foxboro FBM207 P0914TD combines robust isolation, wide input compatibility, and compact design. With its 284 g lightweight build, reliable filtering, and durable environmental resistance, it guarantees long-term stability for industrial automation systems.
FAQs
Q1: Is the Foxboro FBM207 P0914TD new and original?
Yes, we only provide brand-new and factory-sealed FBM207 modules.
Q2: Do you have the FBM207 P0914TD available in stock?
Yes, we maintain ready stock for quick customer deliveries.
Q3: How fast can you ship this module?
We usually ship within 3 days to 2 weeks, depending on order size.
Q4: Which couriers do you use for delivery?
We typically ship using DHL, FedEx, UPS, or TNT worldwide.
Q5: What if the module has a quality problem?
We support returns within 30 days for genuine quality issues.
Q6: What is the module’s power consumption?
The FBM207 P0914TD consumes a maximum of 3 W with 5.5 W heat dissipation.
Q7: How much does the FBM207 weigh?
The module itself weighs 284 g, while the termination assembly ranges from 272 g to 440 g.
