Product Overview

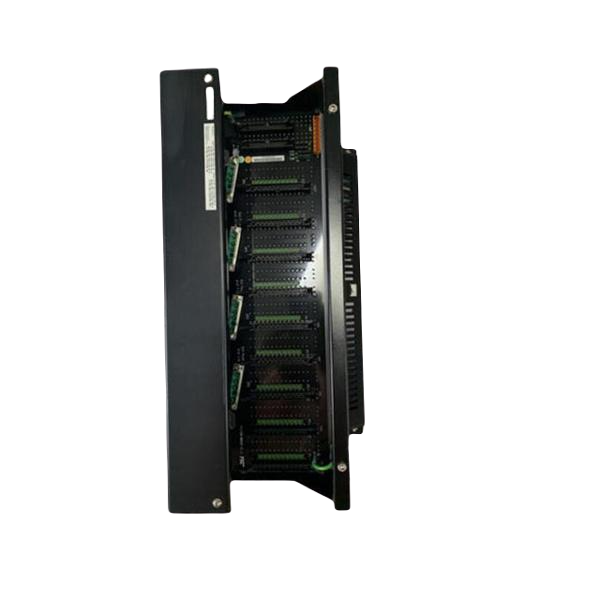

The Honeywell FC-IOCHAS-0001R is a 19-inch rack-mount chassis designed for redundant I/O modules in Safety Manager systems. It supports up to 18 modules arranged in 9 redundant pairs, providing maximum system reliability.
Moreover, the chassis features removable front and back covers for easy access to flat cables, simplifying installation and maintenance. It also includes IO extender modules (IO-0001) controlled by dual control processors for enhanced redundancy.
Key Features
- Redundant Slot Configuration: Slots 1–18 accommodate paired I/O modules, ensuring uninterrupted system performance.
- Compact 19-inch Design: Fits standard racks with minimal footprint while maintaining efficient airflow.
- Cable Management: Integrated back plate includes clamps and tie-wraps for organized cabling.
- Ease of Maintenance: Swingable front cover allows quick access to all module connections.
- High Compatibility: Optimized specifically for Honeywell Safety Manager systems.
In addition, slots 20 and 21 house the IO Extender Modules, enabling control processor separation and improved system availability.
Technical Specifications
| Category | Specification |
|---|---|
| Model | FC-IOCHAS-0001R |
| Type Numbers | FS-IOCHAS-0001R, FC-IOCHAS-0001R |
| Approvals | CE, UL, CSA, TUV, FM |
| Module Capacity | 18 I/O modules (9 redundant pairs) |
| Extender Slots | 20 (CP1), 21 (CP2) |
| Reserved Slot | 19 (Not usable) |
| Power Consumption | 35 mA per 5V rail (Slot 20 & 21) |
| Height | First chassis: 5 HE; subsequent: 4 HE |
| Width | 482.6 mm (19 inches) |
| Depth | 280 mm (11 inches) |
| Weight | 8.5 kg |
These specifications ensure high-density module support while maintaining organized cabling and easy access.
System Integration
The FC-IOCHAS-0001R chassis is ideal for Honeywell Safety Manager systems requiring redundant I/O deployment. It integrates seamlessly with control processors while supporting redundancy and high availability.
It is commonly applied in oil and gas, chemical, and power generation industries, where uninterrupted operation is critical. Moreover, its organized slot layout and cable management reduce installation errors and maintenance downtime.
