Overview

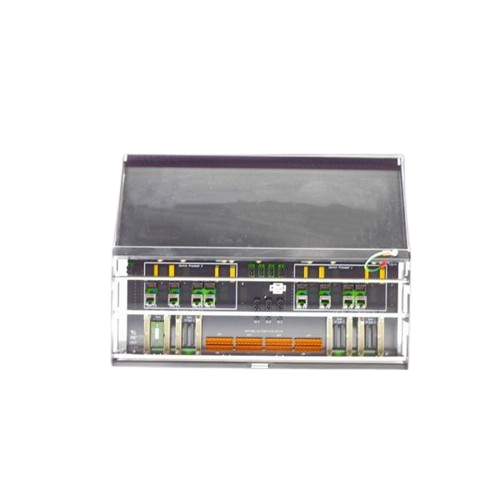

The FC-CPCHAS-0001 is a dedicated controller chassis designed to host Control Processor modules within Honeywell Safety Manager systems. It supports both redundant and non-redundant configurations, ensuring flexible deployment for diverse safety applications. Typically, the chassis is positioned at the top of the cabinet for optimal connectivity with I/O modules below.
Key Features
- Redundant and Non-Redundant Support: Accommodates either redundant or non-redundant Control Processor modules.
- 19-Inch Standard Rack: Compact design fits standard cabinets while optimizing space efficiency.
- High Reliability: Engineered for Safety Manager systems, meeting strict safety and performance standards.
- Centralized Positioning: Typically installed at the top of the rack for optimal communication with I/O chassis.
- Ease of Maintenance: Front and rear panels provide easy access for installation, maintenance, and troubleshooting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Type Numbers | FS-CPCHAS-0001, FC-CPCHAS-0001 |
| Approvals | CE, UL, CSA, TUV, FM |
| Power Consumption | 5V-1: 0.05 A, 5V-2: 0.05 A |
| Height | 4 HE (177 mm / 7 inches) |
| Width | 482.6 mm (19 inches standard rack width) |
| Depth | 280 mm (11 inches) |
| Weight | 5.8 kg (12.8 lbs) |
| Controller Housing | Robust 19-inch mechanical case |
| Controller Backplane | Electrical and data communication interface for modules |
Applications
- Industrial Safety Systems: Hosts Control Processor modules in Honeywell Safety Manager configurations.
- Automation Control: Supports process control, monitoring, and safety logic.
- Compact Cabinet Integration: Ideal for installations with limited rack space while maintaining connectivity.
FAQ
Q1: Is the FC-CPCHAS-0001 brand new and original?
A1: Yes, the FC-CPCHAS-0001 is fully original, brand new, and ready for industrial deployment.
Q2: Can it support both redundant and non-redundant modules?
A2: Yes, it can host either redundant or non-redundant Control Processor modules depending on system requirements.
Q3: What are the physical dimensions of the chassis?
A3: Height: 177 mm (4 HE), Width: 482.6 mm (19 inches), Depth: 280 mm (11 inches).
Q4: How heavy is the Honeywell controller chassis?
A4: The chassis weighs 5.8 kg (12.8 lbs).
Q5: Is it suitable for standard 19-inch racks?
A5: Yes, it is designed to fit seamlessly into standard 19-inch rack cabinets.
Details
| Weight | 5.8 kg |
|---|
