Overview

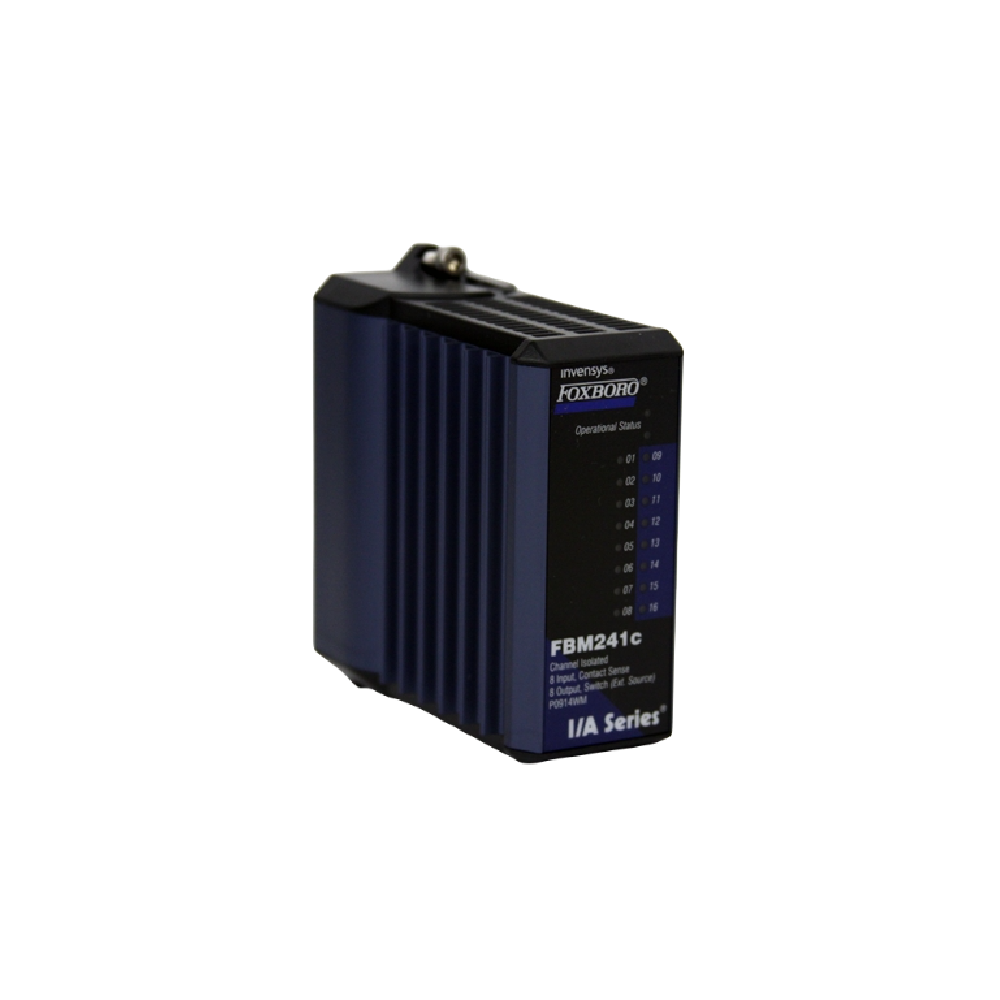

The FBM241c RH914WM is a channel-isolated discrete I/O module that supports eight input and eight output channels. Moreover, it accepts multiple voltage levels, including 15–60 V DC, 120 V AC, and 240 V AC, providing versatile field compatibility. In addition, the module ensures galvanic isolation between all channels and ground, improving safety and noise immunity in industrial environments.
Functional Highlights
This module provides high reliability and configurability for critical applications. Furthermore, configurable options include input filter time, fail-safe behavior, momentary or sustained output, and redundancy support. The rugged design meets Class G3 harsh environment standards, making it suitable for industrial installations. Moreover, the module works with termination assemblies (TAs) that offer fuses, current-limiting devices, relay outputs, and solid-state outputs for flexible integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Channels | 8 discrete input channels |
| Output Channels | 8 discrete output channels |
| Voltage Range | 15–60 V DC, 120 V AC/125 V DC, 240 V AC |
| Output Load Current | DC: 2 A max, AC: 5 A max (external supply) |
| Galvanic Isolation | Each channel isolated from others and ground |
| Filter/Debounce Time | Configurable: 0, 4, 8, 16, or 32 ms |
| Contact Sensor Function | Open-circuit: 24 V DC ±15%, short-circuit: 2.5 mA |
| Power Requirements | 24 V DC ±5%, 5 W max |
| Heat Dissipation | Max 6 W |
| Isolation Voltage | Withstands 600 V AC for 1 minute |
| Environmental Rating | Class G3, -20 to +70°C, 5–95% RH, vibration: 0.75 m/s² |
| Mounting | Modular baseplate on DIN rail or 19-inch rack |
| Module Dimensions (H x W x D) | 102 x 45 x 104 mm (4 x 1.75 x 4.11 in) |
| Module Weight | 284 g (10 oz) |
| Termination Assembly Weight | 272–908 g depending on type |
| Cable Length | Up to 30 m (98 ft) |
| Cable Materials | Polyurethane or LSZH |
| Cable Connection | 37-pin male D-sub for module to TA |
In addition, the module supports redundant fieldbus communication, ensuring continuous operation in mission-critical systems.
System Integration
The FBM241c RH914WM integrates seamlessly with Foxboro FCP/ZCP control systems and Compact 200 Series I/O. Moreover, the versatile termination assemblies provide flexible connections, high-voltage attenuation, and optional external power fusing. Therefore, the module ensures reliable operation and easy system expansion in industrial automation environments.
Details
| Weight | 0.185 kg |
|---|
