Overview

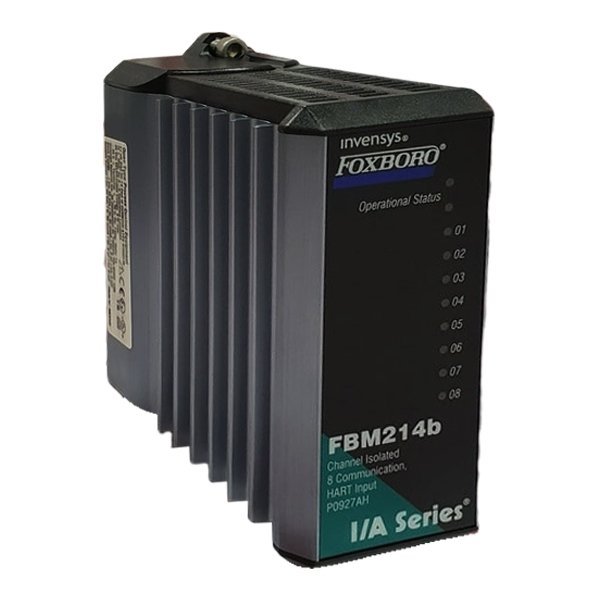

The FBM214b P0927AH is a HART communication input interface module that handles eight individually isolated 4-20 mA analog channels. Moreover, it supports any combination of standard 4-20 mA and HART signals, providing seamless integration with industrial field devices. In addition, the rugged extruded aluminum design ensures durability in harsh industrial environments, while enclosures meet ISA S71.04 environmental protection standards.
Functional Highlights
This module delivers high reliability and flexibility for industrial applications. Furthermore, each channel provides an individually isolated, current-limited loop supply. Visual inspection is facilitated by LED indicators on the module, which simplify monitoring. Moreover, it supports both horizontal and vertical DIN rail mounting, as well as 19-inch rack mounting using an optional kit. Therefore, installation is convenient across multiple system architectures.
Technical Data
| Parameter | Specification |
|---|---|
| Input Channels | 8 individually isolated 4–20 mA |
| Signal Compatibility | Standard 4–20 mA and HART signals |
| Loop Supply | Individually isolated, current-limited |
| Input Resistance | Externally powered: 282 Ω; Internally powered: 302 Ω |
| Loop Power Supply Protection | Limited to <37 mA per channel |
| Construction | Rugged extruded aluminum exterior |
| Environmental Protection | Up to ISA S71.04 |
| Mounting Options | Modular baseplate, DIN rail, 19-inch rack |
| Dimensions (H x W x D) | 102 x 45 x 104 mm (4 x 1.75 x 4.11 in) |
| Weight | Module: 284 g (10 oz); Termination: 181 g |
| Termination Cable Length | Up to 30 m (98 ft) |
| Cable Materials | Polyurethane, LSZH |
| Cable Connections | FBM Baseplate: 37-pin D-sub; Termination: 25-pin D-sub |
| Wiring Size | Solid/Stranded 0.2–4 mm², AWG 24–12 |
| Stranded with Ferrules | 0.2–2.5 mm² (with or without plastic collar) |
Moreover, the FBM214b supports HART digital communication while maintaining analog 4-20 mA functionality, allowing simultaneous process and digital signal management.
System Integration
The FBM214b P0927AH integrates with Compact 200 Series I/O subsystems, offering compatibility with FCP and ZCP controllers. In addition, the module supports flexible termination assemblies, enabling high-voltage attenuation, optical isolation, and robust external power connections. Furthermore, it ensures reliable operation in complex industrial control systems with minimal configuration effort.
