Overview

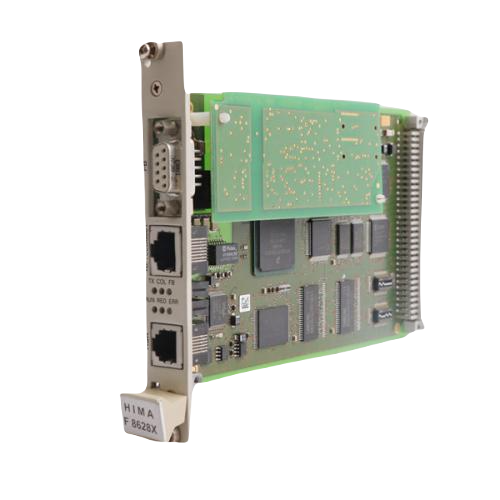

The HIMA F 8628X is a high-performance communication module designed for PROFIBUS-DP applications in H41q and H51q PES systems, starting from OS41q/51q V7.0-7. It provides reliable data transmission and seamless integration with HIMA process automation systems. The module includes the HK-COM-3 function block for managing communication within the system efficiently.
Key Features
- PROFIBUS-DP Communication: Acts as a slave module for high-speed and reliable network connectivity.
- System Compatibility: Works with H41q and H51q PES systems, supporting OS41q/51q V7.0-7 and later.
- Function Block Integration: Includes HK-COM-3 for streamlined communication configuration within HIMA systems.
- High-Speed Redundancy (HSR): Supports HSR networks via RJ-12 connection and BV 7053, ensuring fault-tolerant operation.
- Diagnostic Support: Equipped with 6 LEDs for real-time status monitoring and troubleshooting.
- Flexible Interfaces: 9-pin SUB-D for PROFIBUS-DP, RJ-45 Ethernet (10Base-T/100Base-TX), and high-speed redundancy connectivity.
- Configurable Settings: 2 DIP switches for easy module configuration.
Technical Specifications
| Specification | Details |
|---|---|
| Processor | 32-bit Motorola CPU MPC860T with integrated RISC communication controller |
| Operating Voltage | 5 VDC / 1 A |
| Module Dimensions | 3 HU (height) × 4 SU (width) |
| Serial Interface | PROFIBUS-DP slave via 9-pin SUB-D plug |
| Ethernet Interface | 10Base-T / 100Base-TX via RJ-45 |
| HSR Interface | Redundant high-speed communication via RJ-12 plug |
| Diagnostic LEDs | 6 LEDs for status monitoring |
| DIP Switches | 2 switches for module configuration |
Applications
- Industrial Automation: Provides high-speed communication for H41q and H51q process automation systems.
- Redundant Networks: Ideal for HSR-enabled critical applications requiring fault tolerance.
- System Diagnostics: Enables real-time monitoring and troubleshooting through onboard LEDs and diagnostic interfaces.
Details
| Weight | 0.16 kg |
|---|
