Essential Role in Industrial Automation

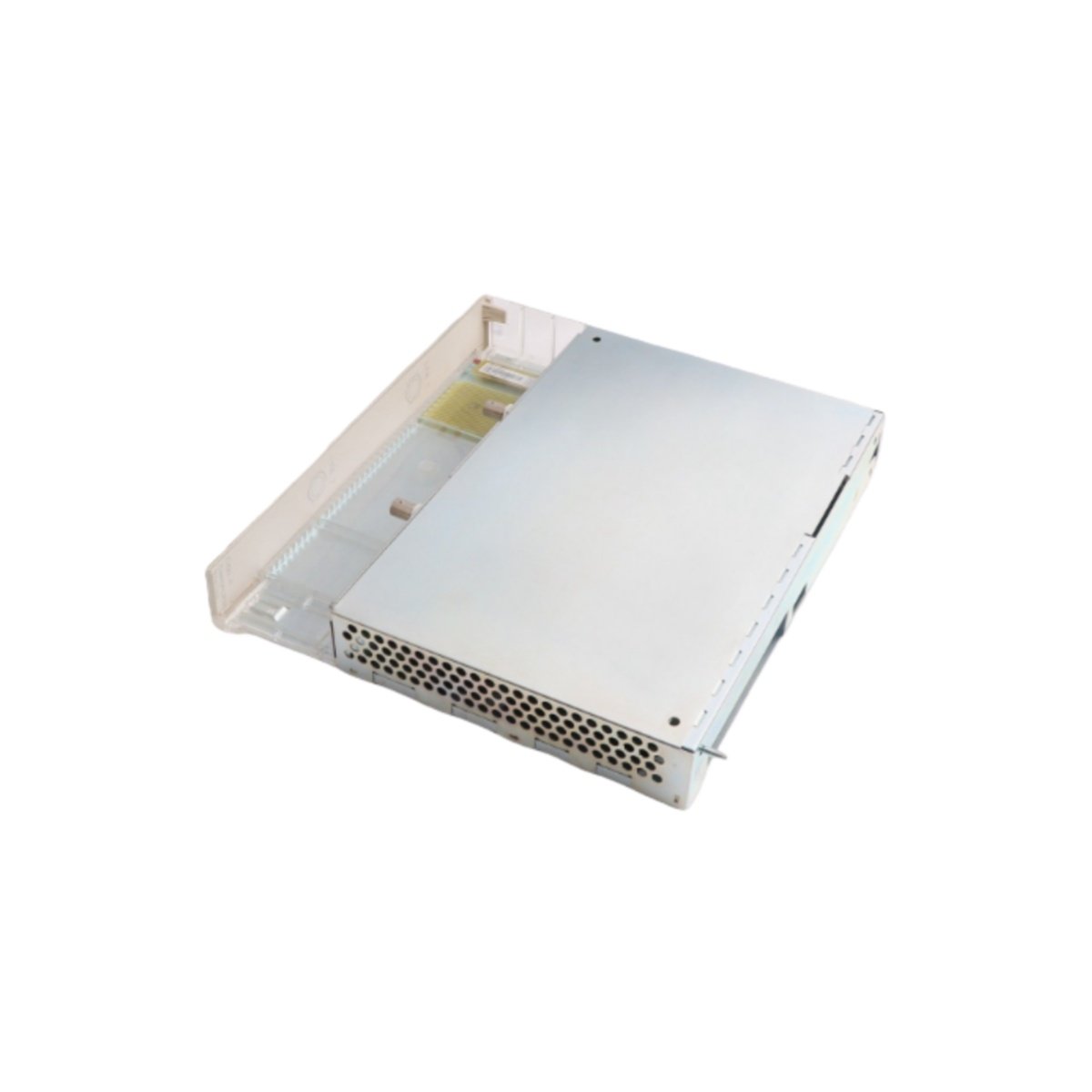

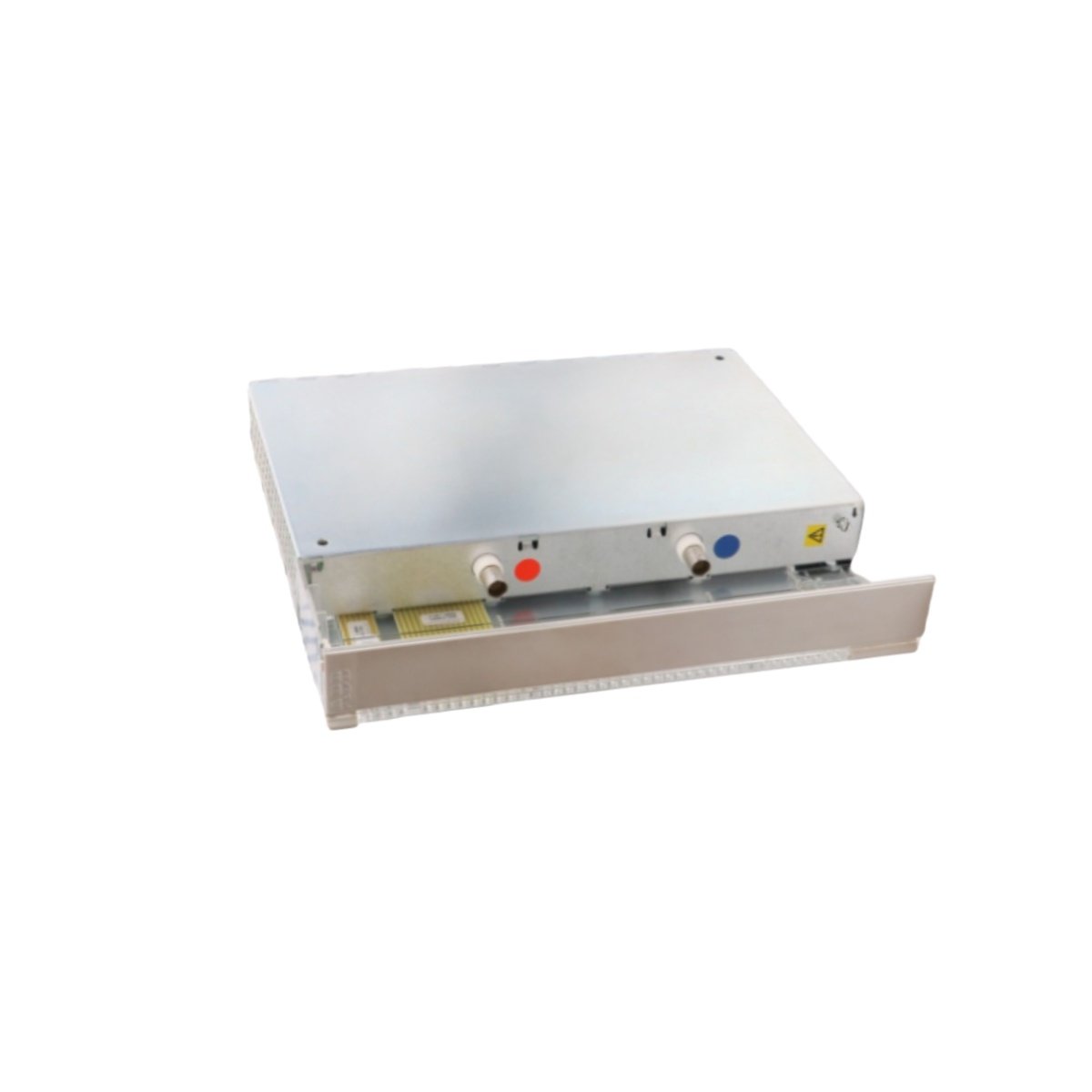

The ABB CI615 3BHT300024R1 bus coupler is a critical communication interface for legacy control architectures. This module specifically bridges the gap between higher-level controllers and distributed I/O, thereby enhancing system flexibility and scope. It enables Advant Master and AC 400 controllers to manage data from remote 5600 series I/O stations efficiently. Moreover, its dedicated CI615 bus ensures deterministic and stable communication across the automation network.
Comprehensive Technical Specifications
Engineered for panel integration, the module features a slim, rack-compatible form factor. Its design prioritizes reliable operation within the demanding conditions of industrial environments. The following table details its core technical parameters for integration planning.
| Parameter | Specification |
|---|---|
| Manufacturer / Series | ABB Advant |
| Product Model | CI615 3BHT300024R1 |
| Dimensions (H x W x D) | 273 mm x 40 mm x 252 mm |
| Weight | 1.2 kg (approx.) |
| Power Supply | 24 V DC (±20% tolerance) |
| Communication Protocol | Proprietary CI615 Bus |
| Maximum I/O Capacity | Up to 256 digital/analog points |
| Compatible I/O Stations | ABB 5600 Series I/O Modules |
| Compatible Controllers | Advant Master, AC 400 Series |
| Software Requirement | System Software Version 5.1 or later |
Key Features and Operational Benefits
This unit delivers advanced diagnostic capabilities for proactive system maintenance. Technicians can quickly identify and troubleshoot communication errors or station faults, which minimizes potential downtime. Additionally, its robust construction protects against industrial contaminants and vibration. Therefore, it is an ideal solution for heavy industries such as pulp and paper manufacturing or energy generation plants.
System Integration and Application Notes
For a functional system, you must connect the CI615 3BHT300024R1 to a compatible 24VDC power source. The module then acts as the network head for a chain of 5600 I/O stations. Importantly, you must configure the connected controller’s software to recognize the extended I/O points. This setup was common in processes requiring extensive monitoring and control across a large facility.
Legacy Status and Sourcing Information
Please note that ABB has officially discontinued the CI615 3BHT300024R1. However, it remains a vital component for maintaining and supporting existing Advant systems. Several specialized industrial automation suppliers offer fully tested refurbished units. They also stock critical spare parts to ensure the longevity of your operational infrastructure.
