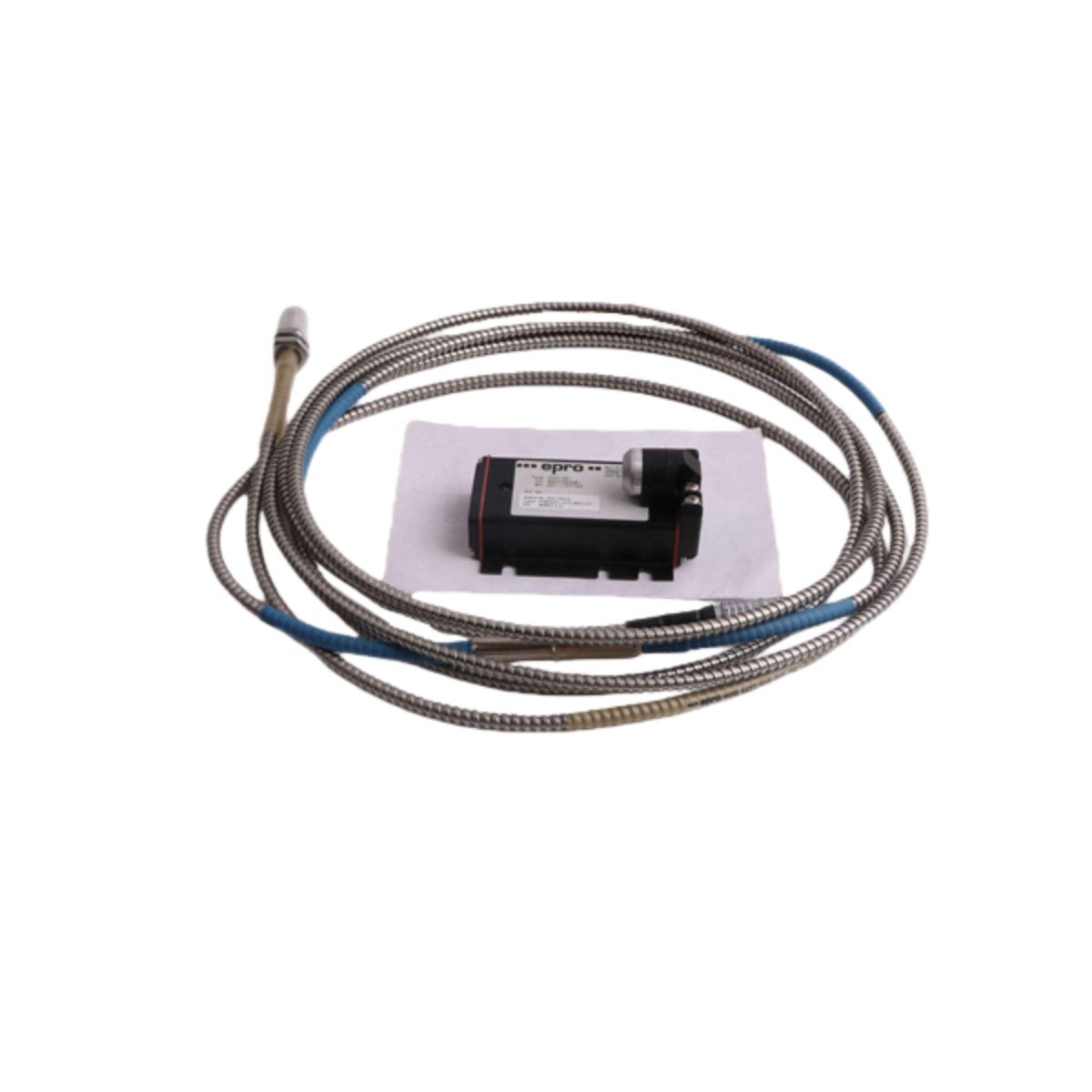

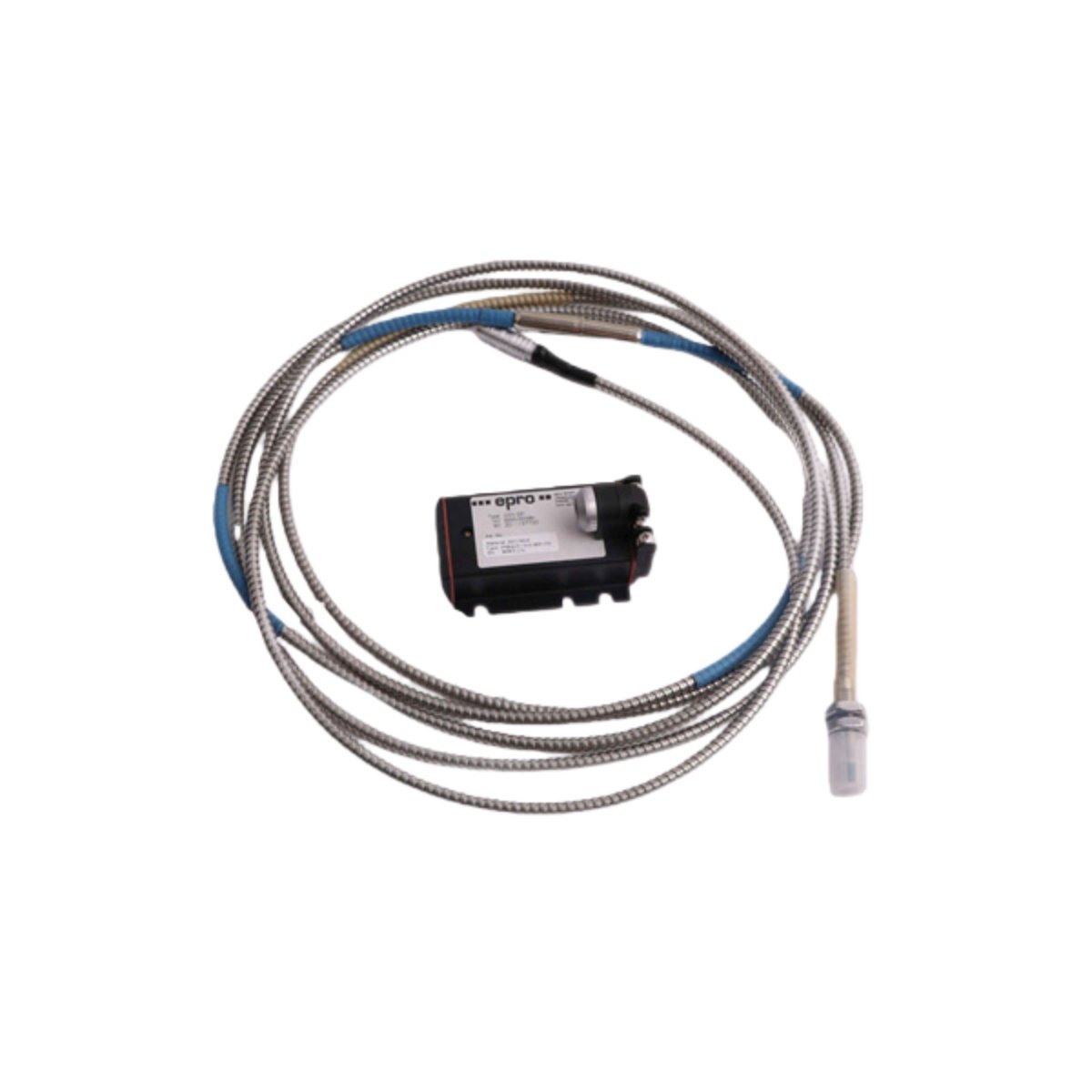

The PR6426/010-140 CON021/916-240 is an eddy current sensor designed for precise vibration and displacement monitoring. This model features an armored cable and a robust, threadless sleeve for reliable installation. It pairs seamlessly with the CON021/916-240 signal converter for accurate data processing.
System Integration and Signal Processing
The PR6426/010-140 CON021/916-240 converter conditions the analog signal from the PR6426/010-140 sensor. This EPRO system delivers a high-precision measurement range suitable for critical machinery protection. Furthermore, the converter ensures excellent signal integrity for condition monitoring systems.
Detailed Technical Parameters
The following table provides the complete technical specifications for this EPRO monitoring system.
| Parameter | Specification | |
|---|---|---|
| Manufacturer & Series | EPRO | PR6426 & CON021 |
| Sensor Model | PR6426/010-140 | |
| Converter Model | CON021/916-240 | |
| Sensor Type | Eddy Current Displacement Sensor | |
| Measuring Range | 24.0 mm (Extended Range) | |
| Linearity Error | ± 3.5% | |
| Total Sensor Length | 80 mm (Mounting Plate: 40mm) | |
| Sleeve Thread | No Thread | |
| Cable Type | Armored Cable | |
| Standard Cable Length Options | 4m (0), 5m (1), 6m (2), 8m (3), 10m (4) | |
| Cable End Connector | LEMO | |
| Adaptor Plug | Without | |
| Primary Application | Vibration, Displacement, and Gap Measurement |
Application and Installation Features
You can deploy this EPRO sensor and converter pair on turbines, compressors, and other rotating equipment. The armored cable offers superior protection in harsh industrial environments. Available cable length options provide flexibility for various machine layouts. Ultimately, this system delivers reliable data for predictive maintenance and machine safety.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 150 × 100 × 50 mm |
