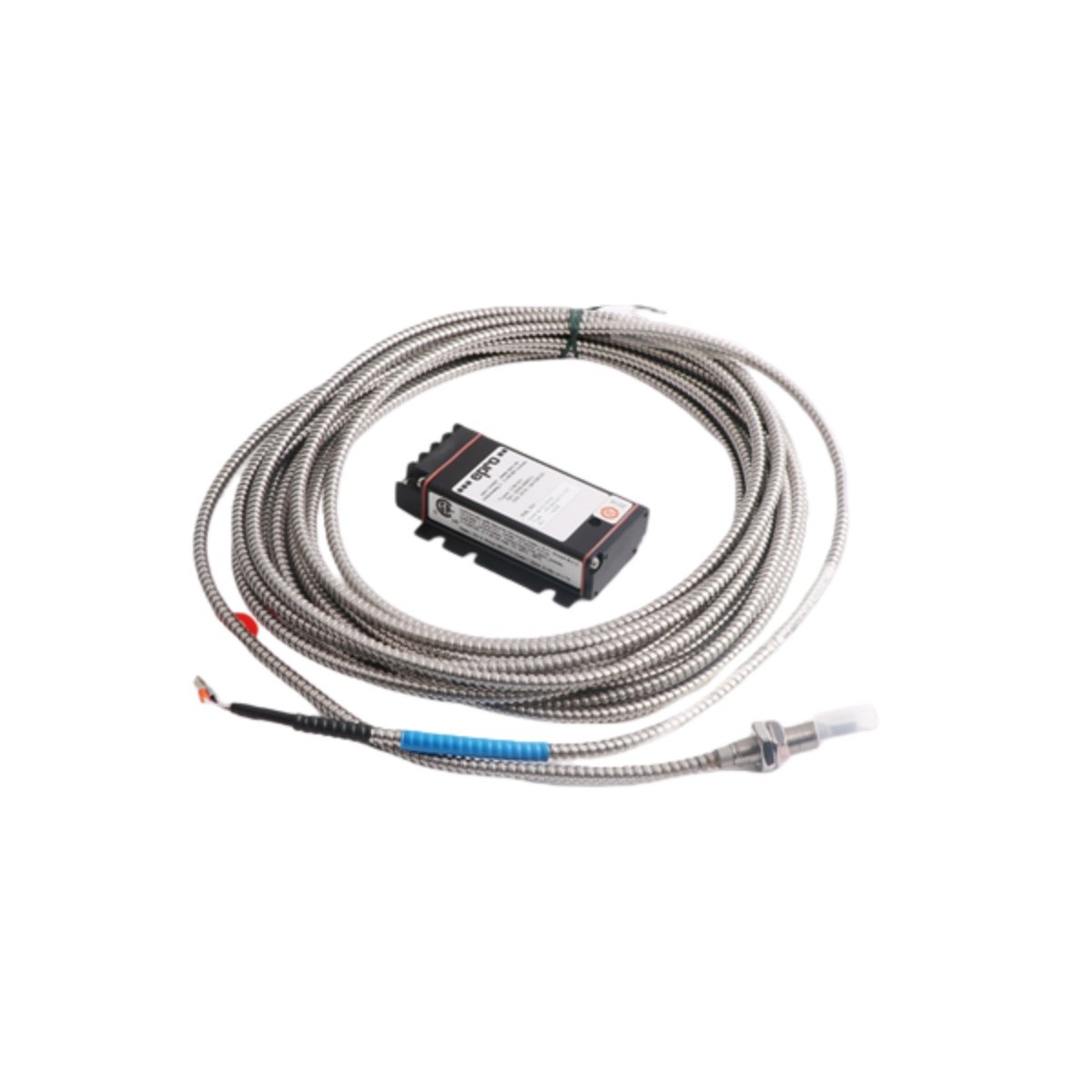

The EPRO PR6424-012-010 offers reliable non-contact measurement for industrial condition monitoring. This sensor belongs to the versatile PR 6400 series from the expert manufacturer EPRO. It provides precise gap and vibration data for various rotating machinery applications. Consequently, maintenance professionals gain critical insights for effective machinery health assessment and protection strategies.

Engineered for practical use, this sensor maintains consistent performance in typical plant environments. Moreover, it integrates directly with EPRO’s trusted monitoring systems like the MMS 3000 series. Users can therefore establish a straightforward yet effective predictive maintenance program. The PR6424-012-010 delivers essential functionality where simplicity and reliability are key priorities.

Detailed Technical Specifications

The performance of the PR6424-012-010 is defined by its specific physical and electrical parameters. For installation and calibration, always consult the official documentation from EPRO.

Technical Specifications:

• Sensor Type: Eddy Current Displacement Probe

• Probe Diameter: 5 mm

• Standard Cable Length: 0.1 meters (100 mm)

• Linear Measuring Range: 1.0 mm (±0.5 mm from electrical zero)

• Typical Sensitivity: -16.0 V/mm (subject to final calibration)

• Output Voltage Range: -2.0 V to -18.0 V DC

• Frequency Response: 0 to 10,000 Hz

• Probe Operating Temperature: -35 °C to +120 °C

• Electrical Connection: Integrated, fixed cable termination

• Cable Specification: Shielded, high-temperature resistant

• Housing Material: Stainless steel

• Approximate Weight: 90 grams (probe only)

Design Features and Application

This sensor operates on the proven eddy current principle for accurate measurement. Its probe generates a controlled electromagnetic field at the tip. A conductive target then interacts with this field during operation. Subsequently, the connected monitoring system analyzes the resulting change in the circuit. This analysis provides a stable voltage signal that is proportional to the distance to the target.

Furthermore, the very short integrated cable suits installations with severe space constraints. The robust, sealed housing protects the internal coil from environmental contaminants. Additionally, the design requires no internal power source or energy storage. It operates entirely from the excitation provided by its compatible EPRO monitor, ensuring maintenance-free and drift-resistant performance for long-term monitoring.
