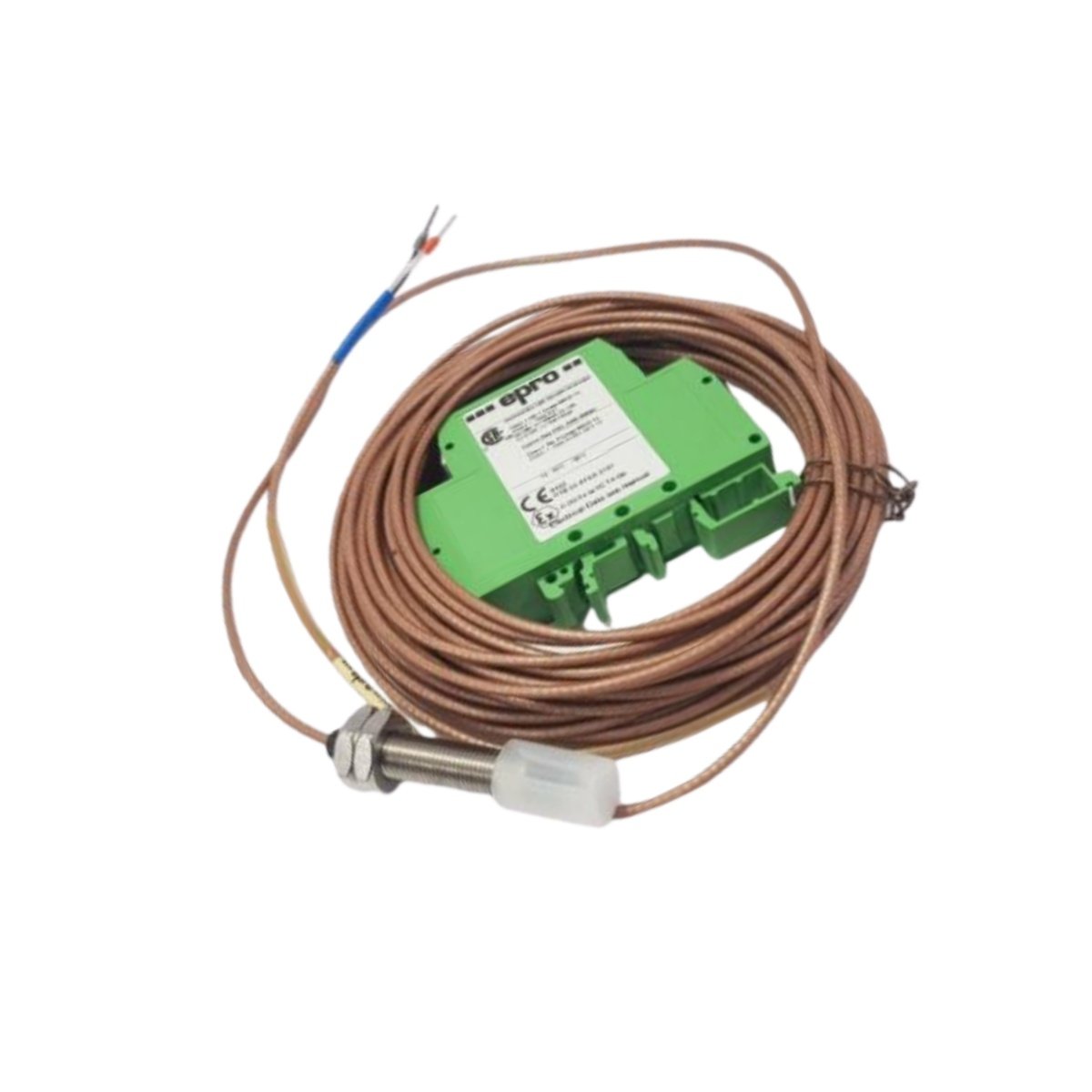

The EPRO PR6424/010-030 is a specialized eddy current sensor for industrial measurement. This device provides precise non-contact monitoring of vibration and displacement. Moreover, its compact and robust design excels in demanding turbomachinery environments. Consequently, it delivers critical data for protecting assets like turbines, compressors, and large pumps.

Reliable Non-Contact Sensing Technology

This sensor operates on a proven eddy current principle for accurate gap detection. It measures the distance to a conductive target without any physical contact. Furthermore, the system generates a linear electrical signal proportional to this distance. Therefore, you obtain stable readings for position, vibration amplitude, and shaft runout.

Compact and Durable Industrial Construction

The PR6424/010-030 features a compact probe design for installation in tight spaces. It withstands high temperatures, pressure, and exposure to oil or steam. Additionally, the sensor’s integrated cable is resistant to mechanical stress and chemical degradation. This durability ensures reliable long-term performance in critical condition monitoring systems.

Detailed Technical Specifications

Complete Specifications for EPRO PR6424/010-030:

• Manufacturer & Model: EPRO PR6424/010-030

• Product Series: PR 6424 Eddy Current Sensor System

• Measurement Type: Non-contact displacement and vibration.

• Sensing Principle: Inductive eddy current.

• Target Material: Requires an electrically conductive surface (typically steel).

• Probe Type: The /010 suffix specifies the probe’s mechanical design and measuring range.

• Nominal Measuring Range: Defined by the probe type; a common range is 0 to 2 mm.

• Output Signal: Standardized linear output, typically -2 to -18 VDC or 4-20 mA.

• Sensitivity: Defined per model (e.g., 8 mV/µm for standard voltage output systems).

• Linearity: High accuracy, typically within ±1% of the full-scale range.

• Frequency Response: Suitable for dynamic vibration measurements, often up to 10 kHz.

• Cable Length: The -030 suffix indicates a standard cable length of 0.3 meters (300 mm).

• Operating Temperature: Probe tip rated for continuous high-temperature operation (e.g., up to 150°C).

• Cable Construction: Integral, flexible, shielded cable with high-temperature insulation.

• Connector: Proprietary connector for mating with compatible EPRO oscillator/demodulator units.

• System Requirement: Must be connected to a compatible EPRO CON 0xx series oscillator for operation.

• Power Supply: Provided through the oscillator module (typically +24 VDC).

• Primary Applications: Radial vibration measurement, axial thrust position monitoring, rotor eccentricity, and keyphasor® (speed and phase reference) applications.

Enabling Advanced Condition Monitoring

Integrating this sensor is fundamental for predictive maintenance and machinery protection. It allows for the early detection of unbalance, misalignment, and bearing defects. Ultimately, the EPRO PR6424/010-030 is a key component for ensuring operational safety and maximizing equipment lifespan.
