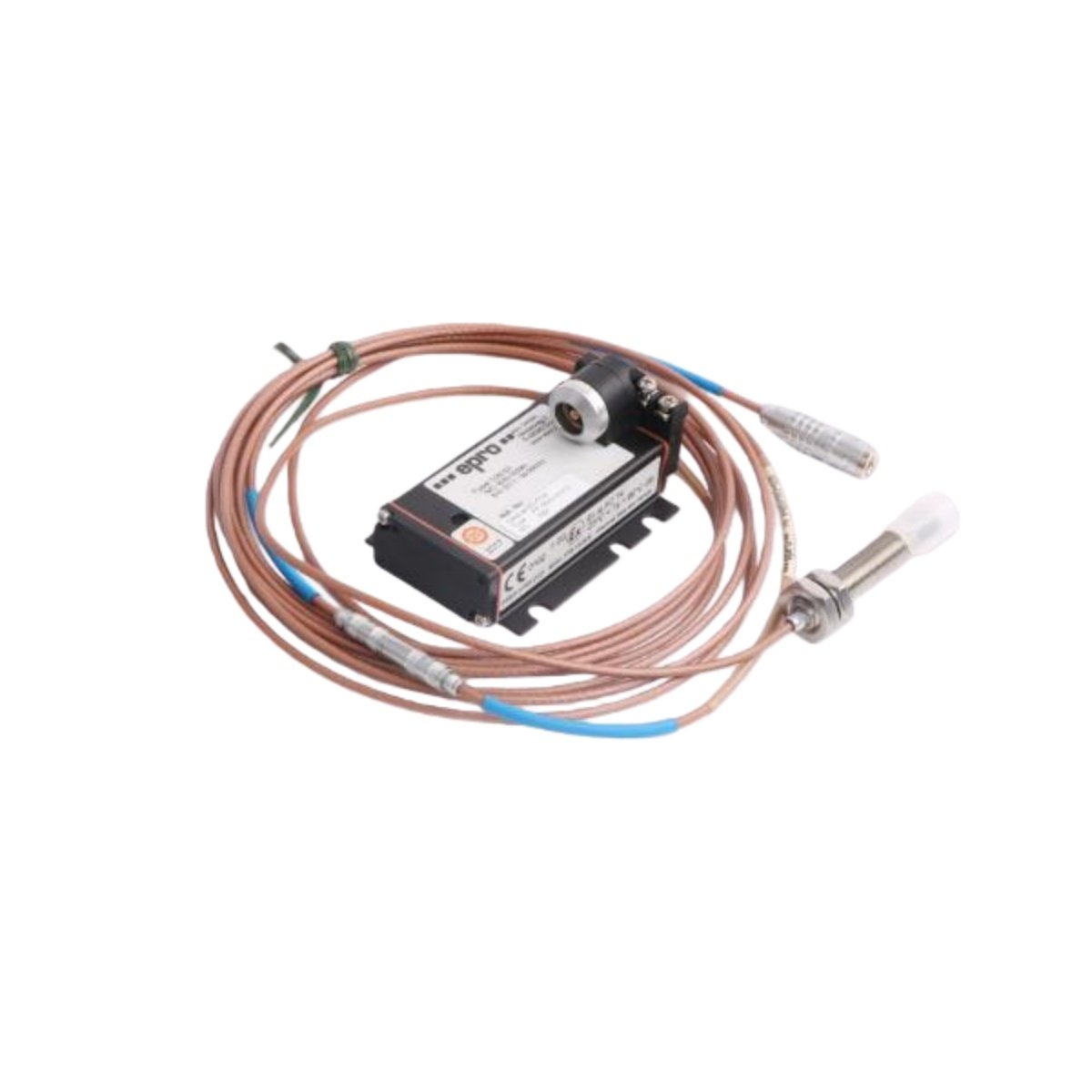

The EPRO PR6424/006-130 provides essential non-contact measurement for industrial systems. This eddy current transducer accurately monitors key mechanical parameters like displacement and vibration. Furthermore, its compact and rugged design ensures reliable performance in challenging environments.
Advanced Non-Contact Measurement Principle
This transducer and its CON signal converter together form a complete oscillator circuit. Consequently, the system’s oscillation amplitude dampens when a metallic object nears the probe. Importantly, this damping effect is directly proportional to the distance from the target. Therefore, the system delivers a precise electrical signal for accurate gap measurement.
Simplified Integration and Calibration
EPRO delivers each PR6424/006-130 system fully adjusted and ready for installation. This approach eliminates the need for complex on-site calibration procedures. Technicians only need to set the correct gap between the transducer and the target object. Finally, this simple adjustment ensures the converter output delivers the specified signal.
Key Industrial Applications
Operators rely on this versatile transducer across many industries and laboratories. It is particularly ideal for use on all kinds of turbomachines and similar rotating equipment. Specifically, the PR6424/006-130 system can monitor several critical machine health parameters.
Clearances between rotating and stator parts
Vibration of rotating and other machine components
Dynamic shaft motion, eccentricity, and axial/radial movements
Deformation or bending of rotating or stator parts
Thrust bearing positions and wear
Oil film thickness
Differential and housing expansions
Valve positions
Detailed Technical Specifications
| Parameter | Specification / Description |
|---|---|
| Measurement Principle | Non-contact eddy current / Oscillator damping |
| Core Function | Displacement & Vibration Measurement |
| System Components | Transducer Probe & CON Series Signal Converter |
| Calibration Status | Factory-adjusted, no on-site calibration required |
| Key Setup Task | Physical gap adjustment between probe and target |
| Output | Specified electrical signal from converter |
| Design | Compact, rugged, resistant to aggressive environments |
| Primary Application | Turbomachinery and critical rotating equipment monitoring |
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 150 × 100 × 50 mm |
