Core High-Frequency Displacement Measurement

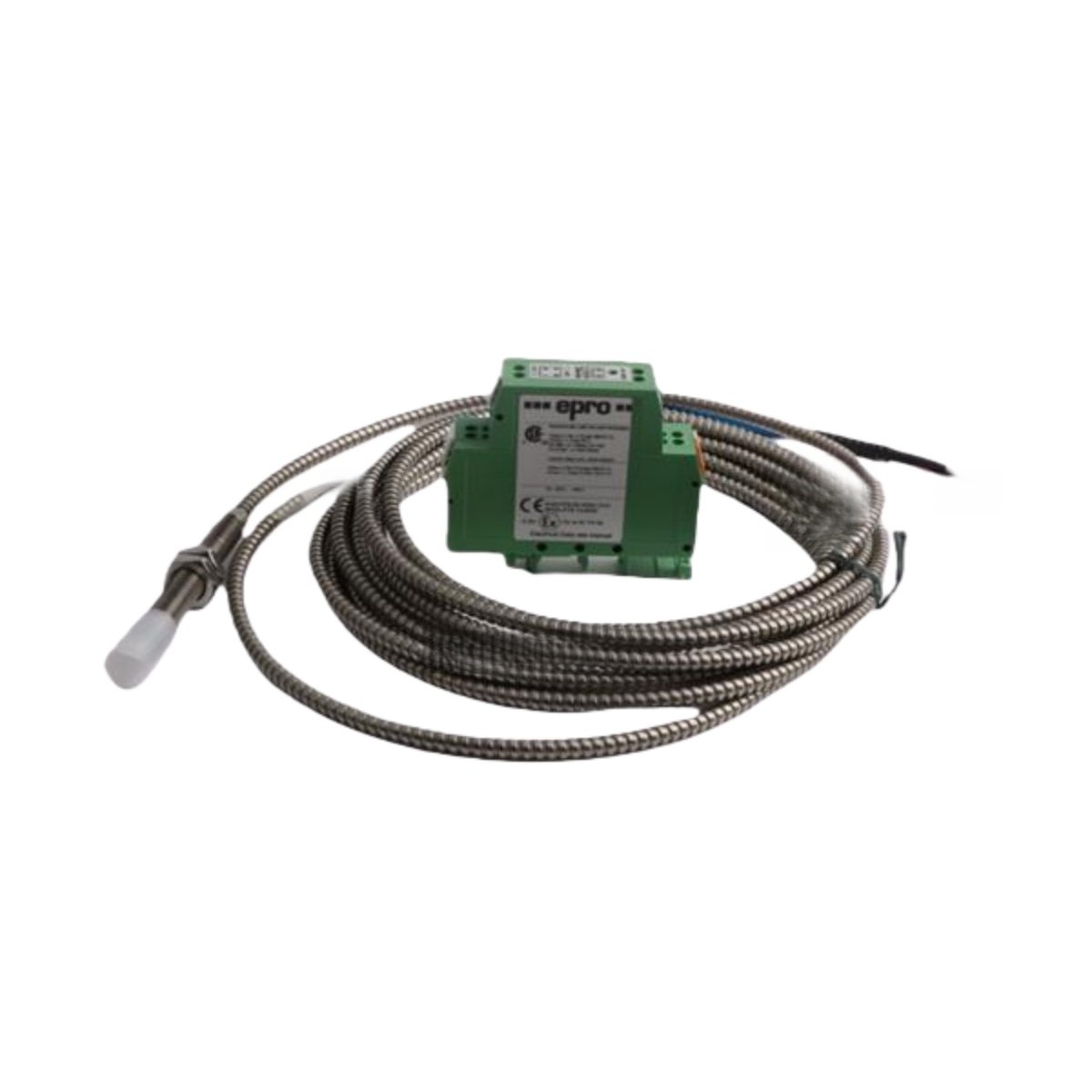

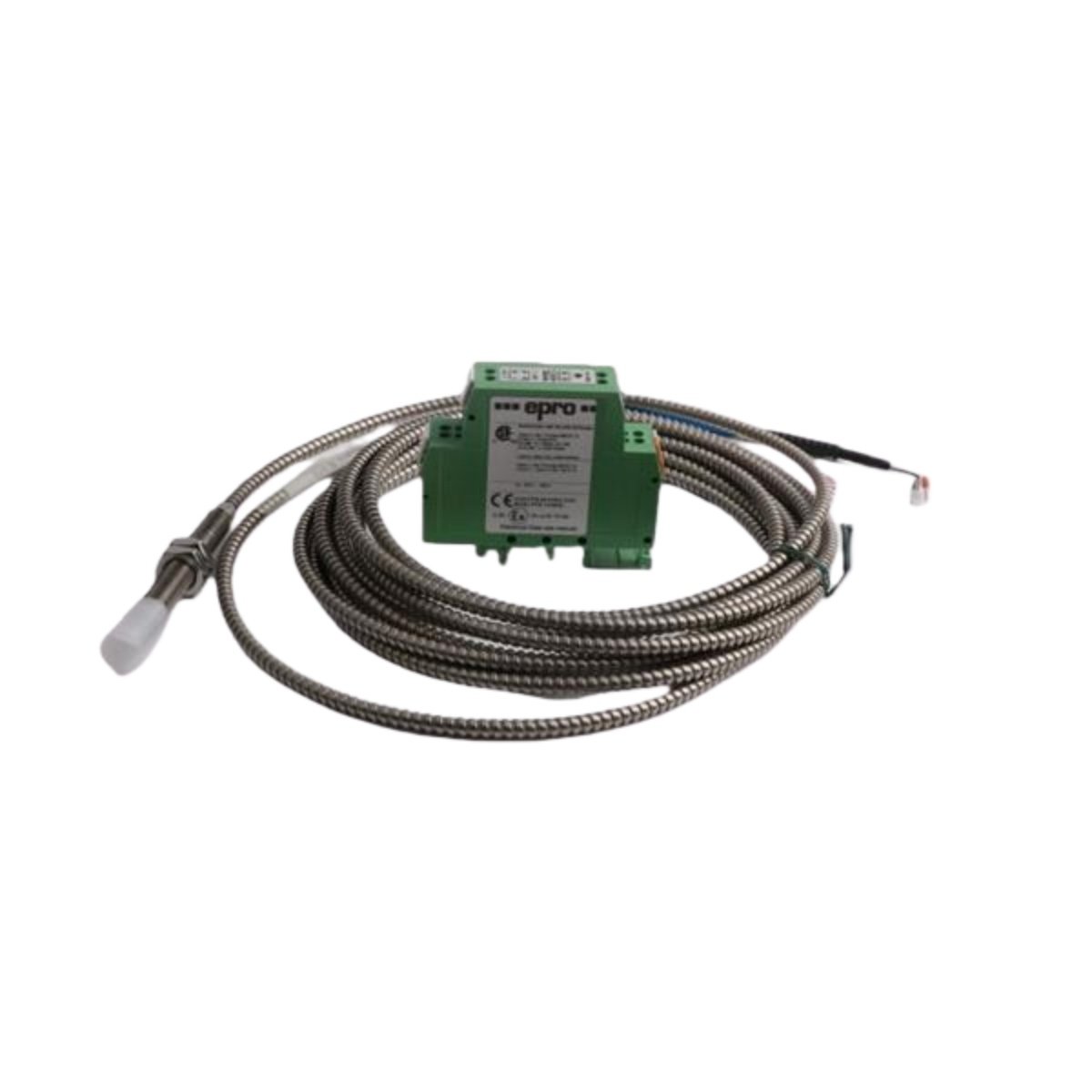

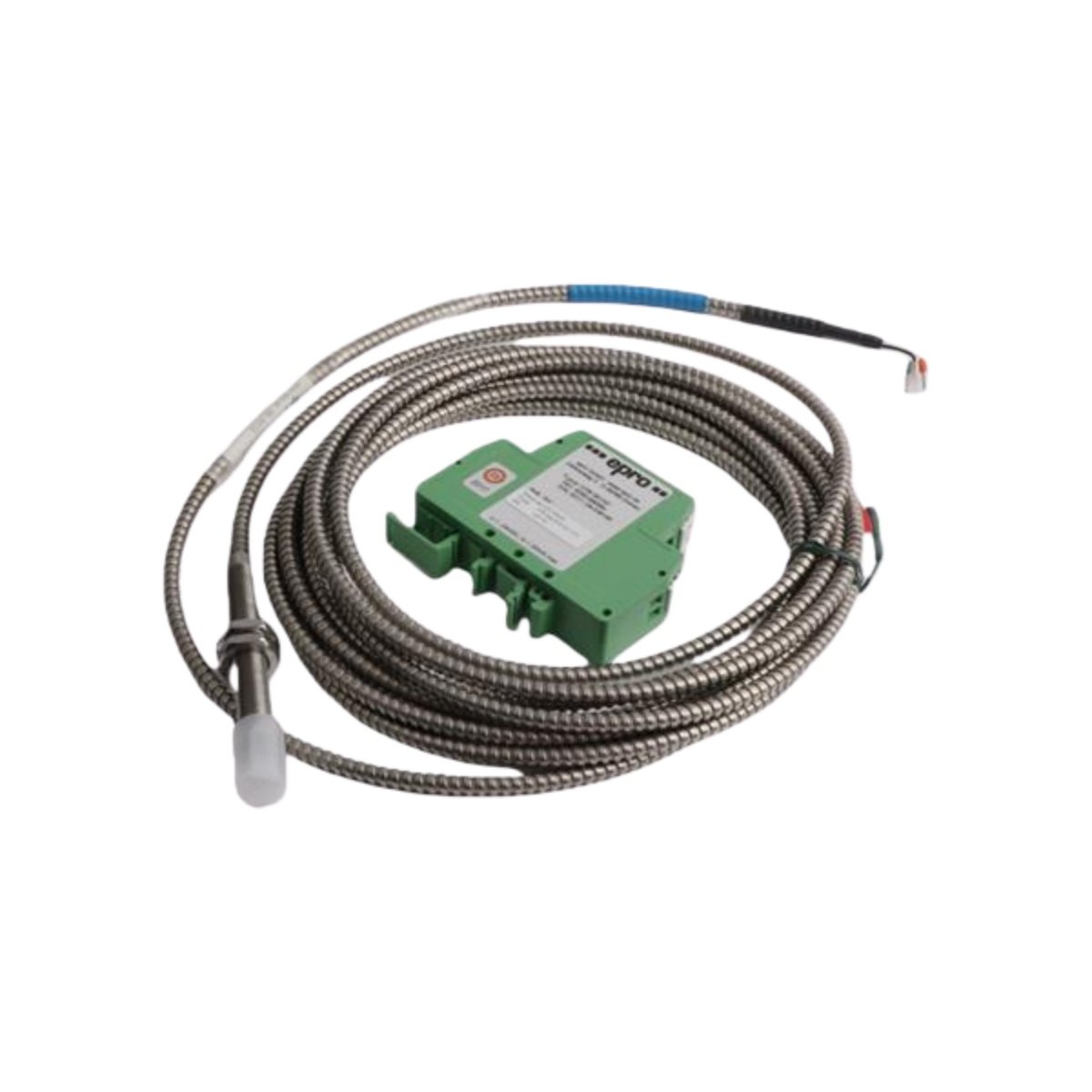

The EPRO PR6424/000-030 CON021 is a high-performance eddy current proximity transducer system. This non-contact system measures dynamic displacement and vibration on ferromagnetic steel targets. It delivers a sensitivity of 4 V/mm for precise gap measurement with minimal long-term drift. Consequently, it is essential for monitoring shaft vibration, axial position, and eccentricity in high-speed turbomachinery.
Exceptional Dynamic Performance and Range
This system offers a wide dynamic frequency range from 0 to 20,000 Hz (-3dB) for capturing both slow trends and rapid vibrations. It features a fast rise time of less than 15 microseconds for accurate transient detection. The PR6424/000-030 CON021 provides a nominal air gap of approximately 2.7 mm for optimal sensor installation. Furthermore, its linearity error is within ±1.8% for reliable and repeatable measurements.
Detailed Technical Specifications
Engineered for harsh environments, the sensor head withstands high pressure and extreme temperatures. Its stainless steel sleeve and PTFE cable offer durability in oily and hot conditions. The following table details its comprehensive measurement, electrical, environmental, and physical parameters.
| Parameter | Specification |
|---|---|
| Manufacturer / Series | EPRO / PR6424 |
| Product Model | PR6424/000-030 CON021 |
| System Type | Eddy Current Proximity Transducer |
| Measurement | Dynamic Displacement & Vibration |
| Sensitivity | 4 V/mm (101.6 mV/mil) |
| Linearity Error | ±1.8% |
| Nominal Air Gap | Approx. 2.7 mm |
| Dynamic Range | 0 to 1.02 mm (0 to 40 mils) |
| Static Range | ±2.2 mm (±87 mils) |
| Frequency Range (-3dB) | 0 to 20,000 Hz |
| Rise Time | <15 µs |
| Long-Term Drift | <0.3% |
| Target Material | Ferromagnetic Steel (e.g., 42 Cr Mo 4) |
| Min. Shaft Diameter | >80 mm |
| Supply Voltage | -23V to -32V DC (Output: -4V to -20V) |
| Operating Temperature | -35°C to +150°C |
| Pressure Resistance | 10,000 hPa (145 psi) at sensor head |
| Protection Class | IP20 |
| Housing Material | LMgSi 0.5 F22 (Aluminum Alloy) |
| Sensor+Cable Weight | 320 grams (4M cable, unarmored) |
| Cable Length | 4 meters (Standard) |
| Connector | Self-Locking Lemo Plug |
Application in Turbine and Compressor Monitoring
Install this system on steam turbines, gas turbines, and compressors to monitor radial shaft vibration and thrust position. Its high-frequency response is critical for detecting blade pass frequencies and other dynamic events. The EPRO PR6424/000-030 CON021 is a key component in machinery protection systems. Therefore, it is indispensable for predictive maintenance and safe operation in power generation and critical process industries.
