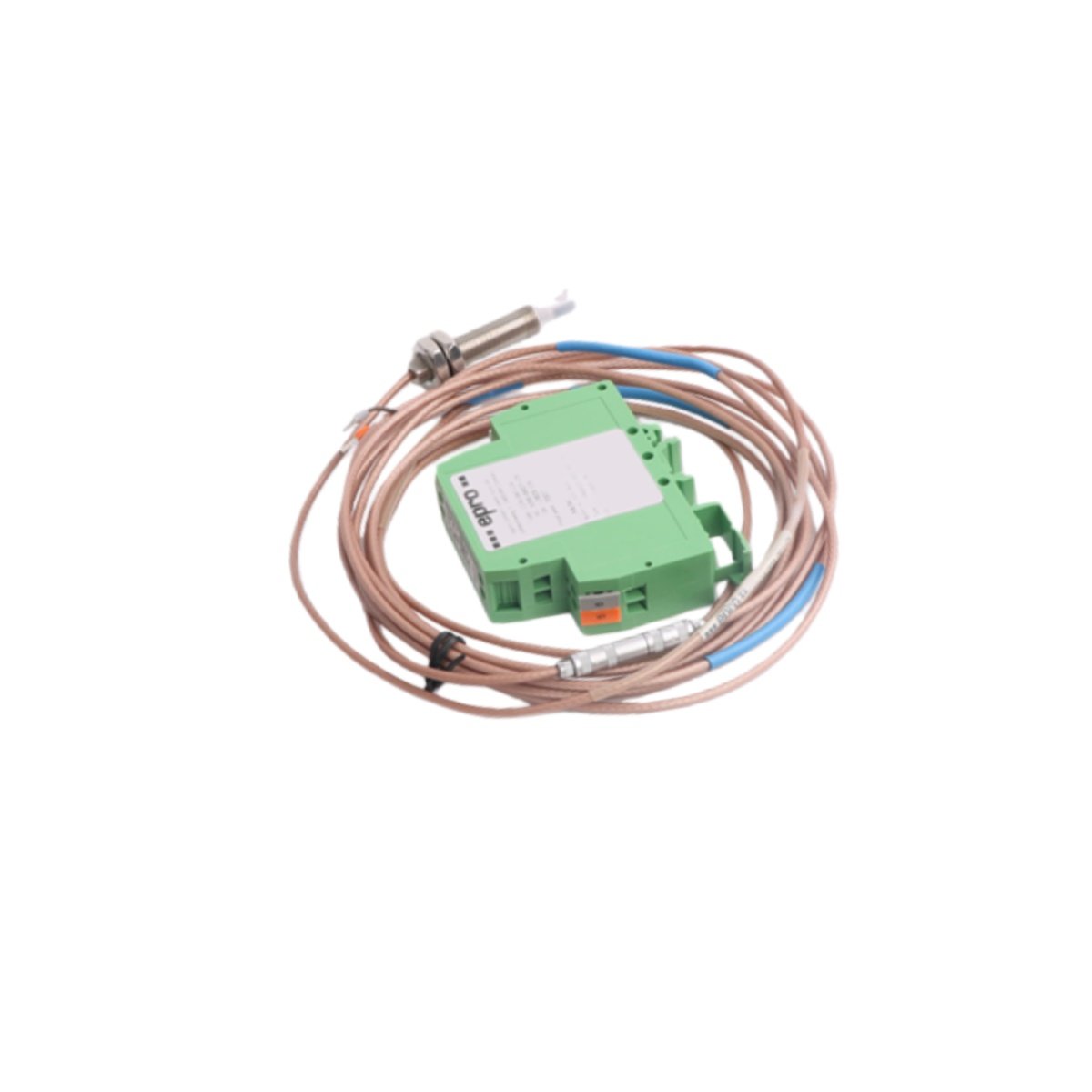

The EPRO PR6423/297-110 is a precision eddy current displacement sensor for industrial machinery monitoring. This sensor non-invasively measures the distance or vibration of conductive targets like rotating shafts. Moreover, it provides reliable data essential for predictive maintenance and equipment protection systems.

Non-Contact Measurement Principle and Application

This sensor generates a high-frequency electromagnetic field from its active probe tip. When a conductive target enters this field, it induces eddy currents that change the sensor’s impedance. Consequently, the system can precisely calculate the gap distance or dynamic vibration of the target.

Detailed Technical Specifications

The PR6423/297-110 is engineered for accuracy and durability in harsh environments. Below are its definitive technical parameters for system integration.

Technical Specifications:

• Manufacturer & Model: EPRO PR6423/297-110

• Product Series: PR6423 / MMS 6000 Machinery Protection System

• Category: Eddy Current Displacement / Vibration Sensor

• Measurement Type: Non-contact, relative displacement

• Target Material: Ferrous and non-ferrous conductive metals

• Measuring Range: Specific linear range defined by the -110 suffix (e.g., 2 mm)

• Output Signal: Typically -20 to -4 VDC or 4 to 20 mA, proportional to gap

• Sensitivity: Defined mV/µm or mA/µm (varies by exact model and range)

• Frequency Response: DC to 10 kHz or higher for vibration measurement

• Power Supply: Typically requires +24 VDC from associated monitoring electronics

• Operating Temperature: Probe: up to 150°C+; Cable: up to 200°C (with high-temp option)

• Probe Diameter: Standard 8mm or 11mm probe housing

• Cable Length: Integrated, shielded cable of specified length (e.g., 5m, 9m)

• Connector: Standardized connector for the EPRO/MMS monitoring system

• Form Factor: Stainless steel probe with integral high-temperature cable

• Dimensions: Probe length and thread per specific mounting requirements

• Weight: Lightweight probe and cable assembly for easy installation

System Integration for Machinery Protection

The EPRO PR6423/297-110 is critical for monitoring radial shaft displacement, vibration, and eccentricity in turbines, compressors, and pumps. It connects directly to compatible monitoring systems like the EPRO MMS 6000. This sensor is a key component in comprehensive protection schemes that may also include speed monitoring and trip devices. For instance, it works alongside protective relays like the RMS-TSG-TZ-C Static Trip unit within a complete machinery train. The data it provides is often processed by system controllers such as the IS200AEBMG1AFB.
