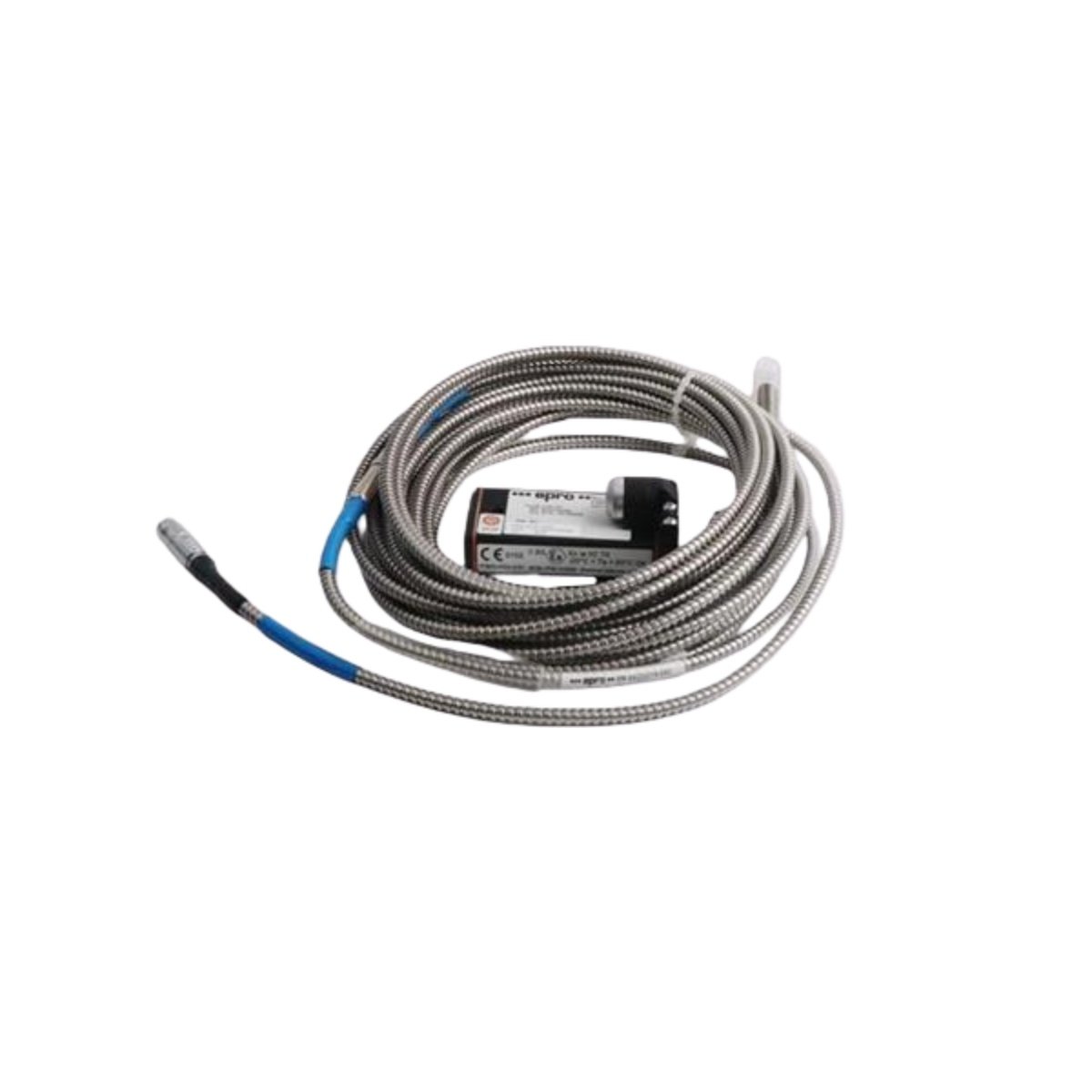

The EPRO PR6423/268-110 is an eddy current transducer for precise mechanical measurement. This non-contact system reliably monitors displacement and vibration on rotating machinery. Moreover, its rugged design withstands aggressive environments like oil and steam. Consequently, it provides critical data for protecting turbines, compressors, and other turbomachines.

Non-Contact Measurement Principle

This transducer operates on a contactless eddy current sensing principle. It generates a high-frequency electromagnetic field from its probe tip. Furthermore, the system measures changes in this field caused by conductive target proximity. Therefore, it delivers accurate readings without physical wear or loading on the measured part.

Key Applications in Machinery Protection

The PR6423/268-110 system excels in monitoring several critical mechanical parameters. It accurately measures radial and axial shaft positions within bearings. Additionally, the transducer detects dynamic shaft eccentricity and relative vibration. These measurements are essential for predictive maintenance and avoiding catastrophic failures.

Detailed Technical Specifications

Complete Specifications for EPRO PR6423/268-110:

• Manufacturer & Model: EPRO PR6423/268-110

• Product Series: PR 6423 Eddy Current Transducer System

• Measurement Type: Non-contact displacement and vibration.

• Operating Principle: Eddy current / inductive sensing.

• Target Material: Requires electrically conductive materials (e.g., steel).

• Standard Measuring Range: Typically 0 to 2.0 mm or similar (specify per exact model).

• Output Signal: Typically -2 to -18 VDC or 4-20 mA, proportional to distance.

• Linearity: High linearity within the specified range (e.g., ±1%).

• Frequency Response: Suitable for dynamic measurements up to several kHz.

• Operating Temperature: Probe rated for high temperatures, often up to 150°C or more.

• Probe Diameter: Part of the /268 designation indicates a specific probe size (e.g., 8mm).

• Cable Length: The -110 suffix often specifies a standard cable length (e.g., 1 meter).

• System Components: Includes a probe (PR6423/268-) and a compatible oscillator/demodulator module.

• Power Supply: Typically requires +24 VDC to the oscillator module.

• Primary Applications: Radial vibration, axial thrust position, shaft eccentricity, and differential expansion.

Rugged Design for Industrial Use

EPRO designs these transducers for continuous operation in harsh conditions. The probes are resistant to pressure, temperature, and corrosive media. Ultimately, the EPRO PR6423/268-110 is a trusted solution for condition monitoring in power generation and heavy industry.
