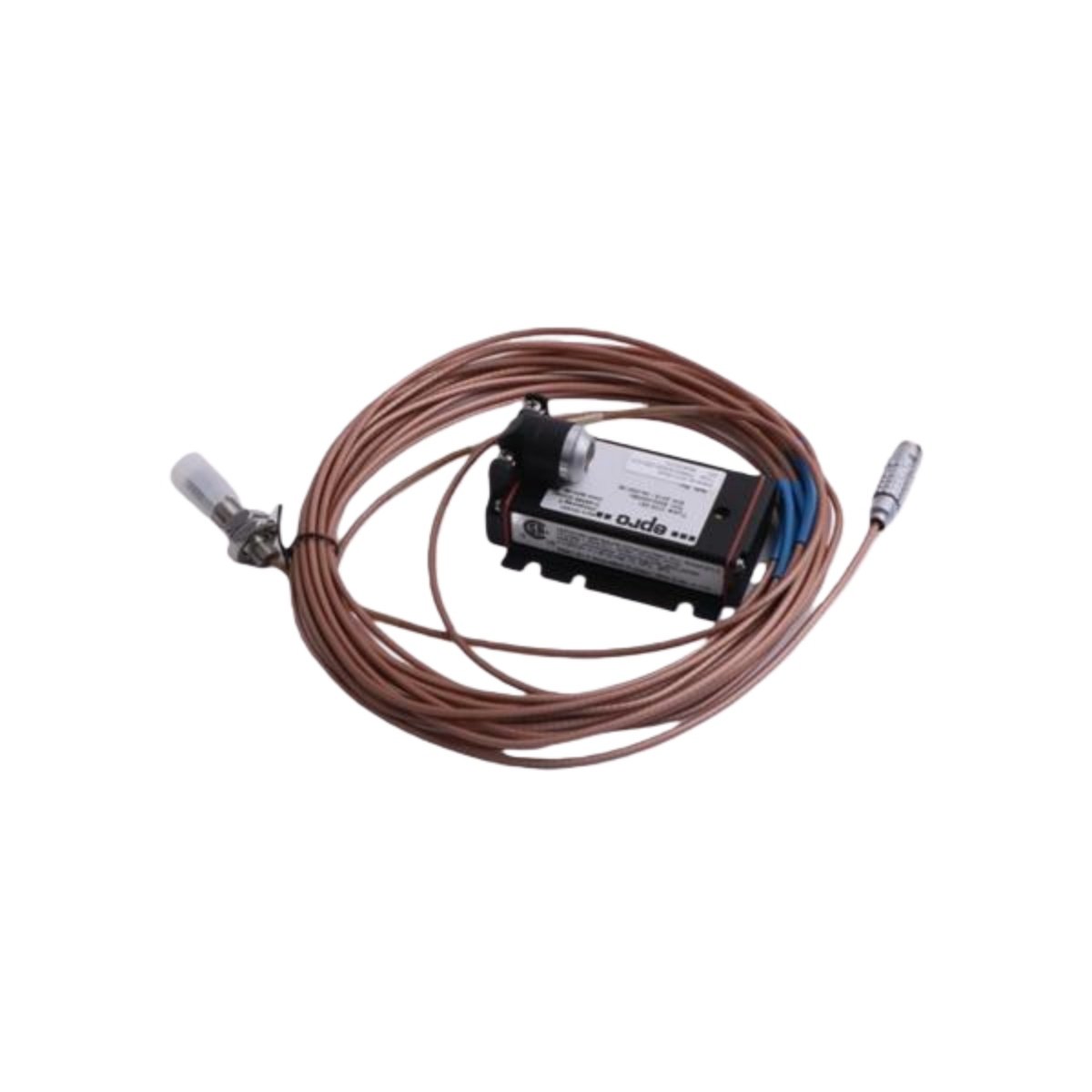

The EPRO PR6423/156-110 is a specialized eddy current sensor for industrial measurement. This robust device performs non-contact monitoring of vibration and displacement. Moreover, its design excels in the harsh conditions of turbomachinery applications. Consequently, it provides essential data for protecting critical assets like turbines and compressors.

Precision Non-Contact Measurement

This sensor operates on a reliable eddy current principle for accurate readings. It detects changes in the distance to a conductive target material. Furthermore, the system converts these changes into a standardized electrical output signal. Therefore, you obtain precise data on shaft position, vibration, and radial clearance.

Engineered for Harsh Environments

The PR6423/156-110 features a rugged probe and high-temperature cable assembly. It withstands exposure to oil, steam, and extreme pressure variations. Additionally, the sensor maintains stable performance across a wide operational temperature range. This durability makes it ideal for continuous monitoring in demanding power generation plants.

Detailed Technical Specifications

Complete Specifications for EPRO PR6423/156-110:

• Manufacturer & Model: EPRO PR6423/156-110

• Product Series: PR 6423 Eddy Current Sensor System

• Measurement Type: Non-contact displacement and vibration.

• Operating Principle: Inductive eddy current sensing.

• Target Material: Requires electrically conductive materials (e.g., steel).

• Probe Specification: The /156 suffix denotes a specific probe type and diameter.

• Measuring Range: Defined by the probe type; typical ranges are 0-2mm or similar.

• Output Signal: Standard linear output, typically -2 to -18 VDC or 4-20 mA.

• Linearity: High accuracy, usually within ±1% of the selected measuring range.

• Frequency Response: Suitable for dynamic measurements up to several kHz.

• Cable Length: The -110 suffix indicates a standard cable length (commonly 1 meter).

• Operating Temperature: Probe tip rated for high temperatures, often up to 150°C or more.

• Cable Construction: Integral, flexible shielded cable resistant to oils and chemicals.

• Connector Type: Proprietary connector for mating with an EPRO oscillator/demodulator.

• System Requirement: Must be used with a compatible EPRO CON 0xx series oscillator.

• Power Supply: Provided by the connected oscillator module (typically +24 VDC).

• Primary Application: Radial vibration measurement, axial position monitoring, and eccentricity detection on rotating shafts.

Core Component for Condition Monitoring

Integrating this sensor is fundamental for effective predictive maintenance programs. It enables the early detection of mechanical faults like imbalance and misalignment. Ultimately, the EPRO PR6423/156-110 is a trusted sensor for enhancing machinery safety and operational reliability.
