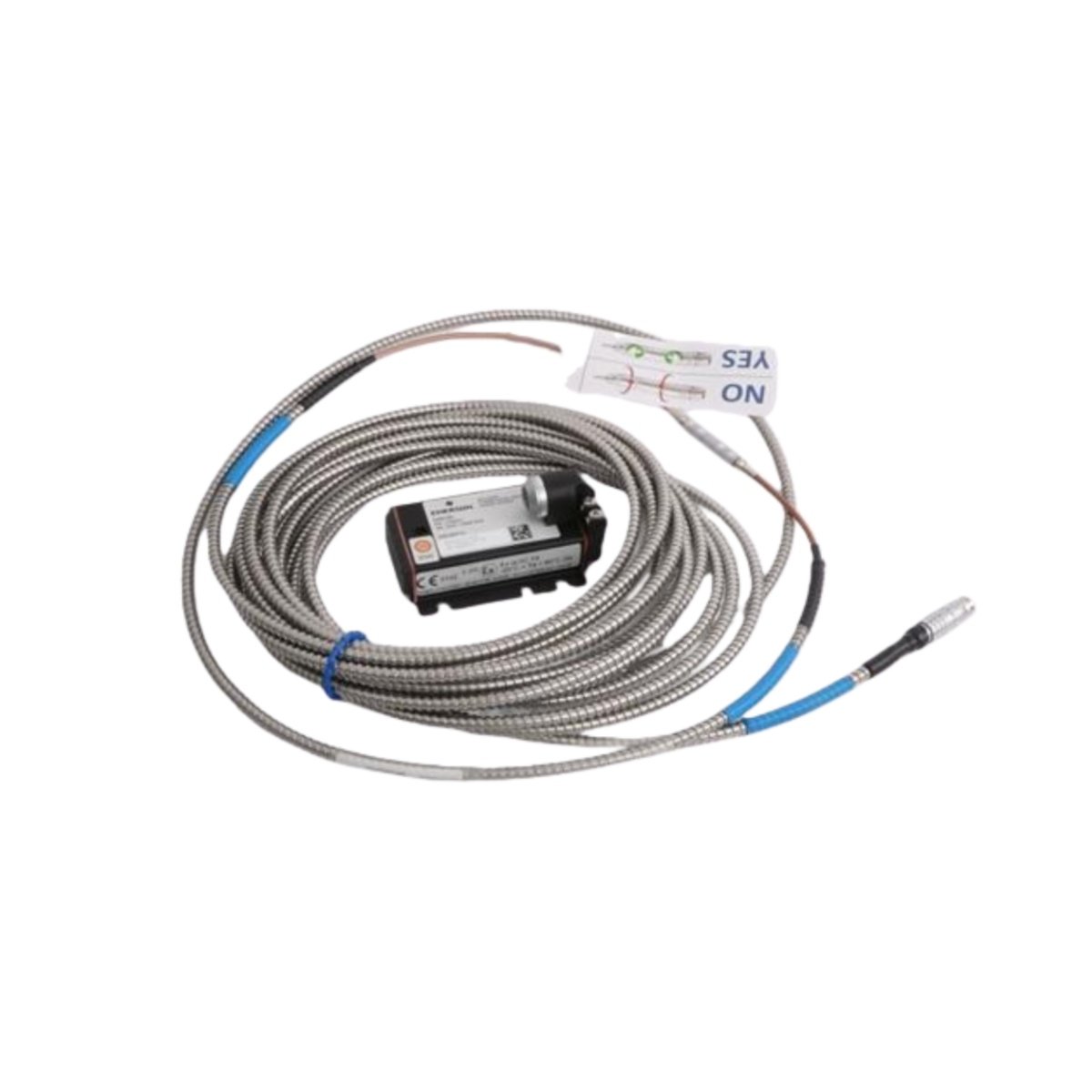

This rugged PR6423/119-110 eddy current transducer from epro provides precise, non-contact vibration and displacement monitoring. Its compact design and environmental resistance make it ideal for demanding turbomachinery applications. Furthermore, the system delivers reliable data for predictive maintenance and operational safety across various industries.

Core Technical Specifications and Design

The PR6423/119-110 excels in harsh industrial environments due to its robust construction. Key technical parameters define its performance and physical characteristics for seamless integration into any monitoring setup.

• Transducer Type: Eddy Current / Non-Contact

• Primary Measurements: Displacement, Vibration, Position

• Output Signal: Typically -4 to -20 V DC (relative to gap)

• Operating Temperature Range: -35°C to +200°C (continuous)

• Probe Tip Diameter: 8 mm standard for focused measurement

• Cable Connection: Integral, armored cable with high-temperature insulation

• Housing Material: Stainless steel AISI 303 for superior corrosion resistance

• Ingress Protection (IP) Rating: IP67 for complete dust ingress and water immersion protection

• System Linearity: Typically within ±1% of full scale for high accuracy

Key Applications for Turbomachinery Monitoring

This versatile epro transducer monitors critical mechanical parameters on rotating equipment. Consequently, it helps prevent unplanned downtime and extend asset life in power generation, oil & gas, and manufacturing.

• Measuring radial and axial shaft displacements with micron-level accuracy.

• Monitoring vibration levels of rotors, blades, and other key components.

• Tracking thrust bearing position and detecting wear over time proactively.

• Observing dynamic motion, including shaft eccentricity and runout, in real-time.

• Measuring critical clearances between rotating and static parts safely.

• Detecting deformation or bending in shafts and casings during operation.

Integration and System Benefits

Integrating the PR6423/119-110 into your monitoring framework is straightforward. The transducer connects directly to compatible epro evaluation electronics, such as the MMS6000 or PR935x series monitors. These systems then process the raw signal into actionable data for control systems. Moreover, the non-contact principle eliminates sensor wear, ensuring long-term stability and reducing lifecycle costs.

The transducer’s high temperature rating allows installation close to heat sources. This proximity provides more accurate readings of actual machine behavior. Additionally, the IP67 rating guarantees reliable performance despite oil mist, moisture, and airborne contaminants.

Why Choose the PR6423 Series?

The PR6423/119-110 is part of epro’s proven PR6423 series, known for global reliability. This specific model offers a optimized performance for general turbomachinery. For different sensing ranges or thread sizes, other variants like the PR6423/003-000 or PR6423/100-030 are available. Ultimately, selecting an epro transducer means investing in precision engineering for maximum plant availability and safety.
