Measuring Critical Mechanical Parameters with Precision

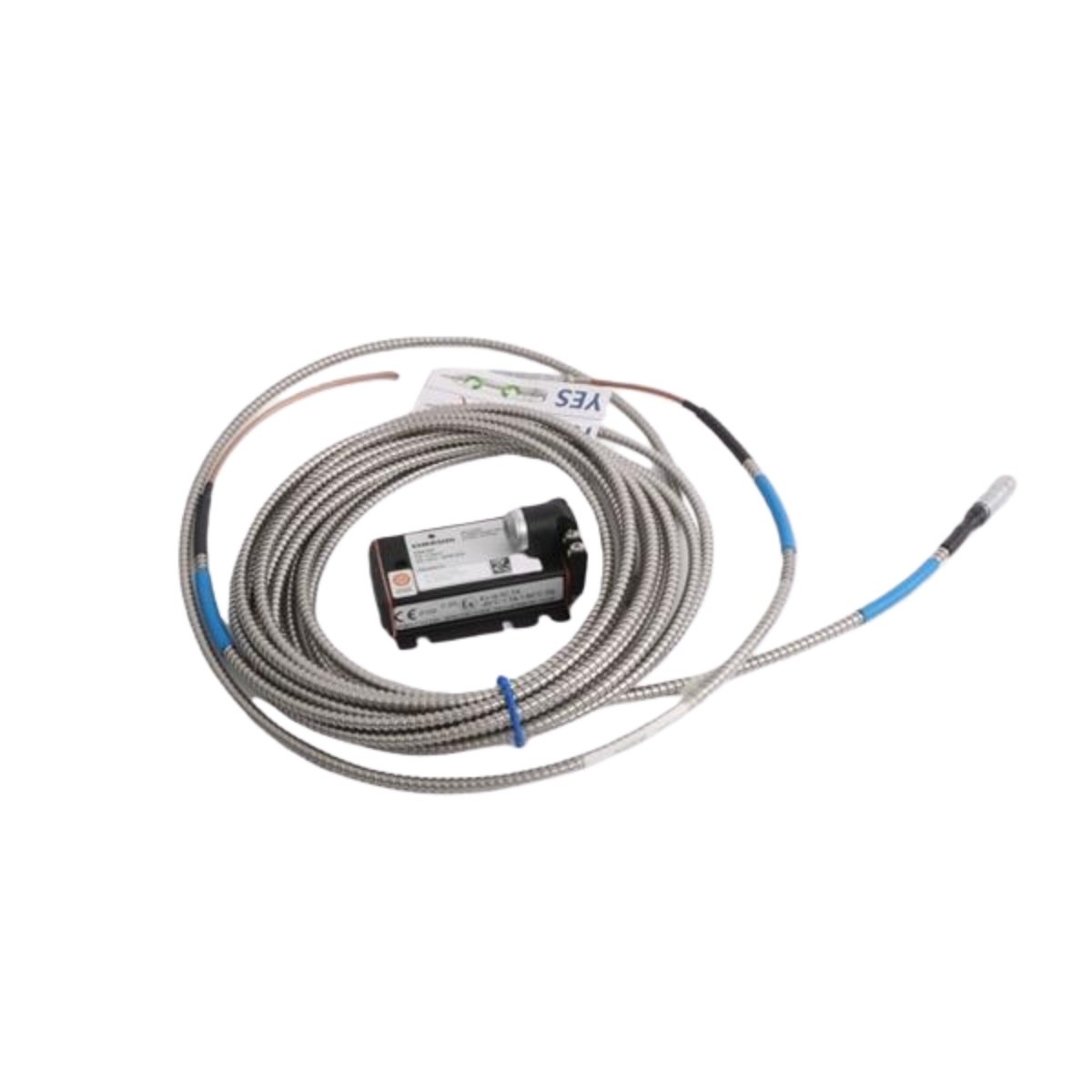

The EPRO PR6423/118-110 is an eddy current displacement transducer designed for non-contact measurement. This sensor accurately measures mechanical parameters like vibration and shaft displacement. Consequently, it is ideal for monitoring critical clearances and movements in turbo machinery and rotating equipment.
Engineered for Robust Performance in Demanding Environments
This transducer features a compact and rugged construction for reliable operation. Its non-contact measurement principle and resistance to harsh conditions ensure long-term stability. Therefore, the PR6423/118-110 provides dependable data across various industrial and laboratory applications.
Core Technical Specifications and Physical Parameters
The EPRO PR6423/118-110 delivers precise measurements within a defined operating range. The following table details its key electrical, mechanical, and environmental specifications.
| Parameter Category | Specification |
|---|---|
| Manufacturer & Model | EPRO PR6423/118-110 |
| Product Category | Eddy Current Displacement Transducer / Proximity Sensor |
| Measurement Principle | Non-contact inductive (eddy current) |
| Measurement Range | 0 to 4 mm (0 to 4000 µm) |
| Sensitivity | 10 mV/µm (Standard) |
| Frequency Range | 10 Hz to 10 kHz |
| Operating Temperature Range | -30°C to +150°C (-22°F to +302°F) |
| Probe Tip Diameter | 8 mm (Standard for this range) |
| Cable Length | 1 meter integral cable (standard), other lengths available |
| Connector Type | Standard Lemo or Microdot connector (model specific) |
| Housing Material | Stainless Steel (typical for probe body) |
| Mounting Thread | M10 x 1 (typical) |
| Protection Class | Typically IP67 (when properly installed) |
| Compatible Systems | EPRO MMS 6000, MMS 3000, and other monitoring systems |
Key Applications in Machinery Monitoring
This sensor from EPRO serves multiple critical monitoring functions on rotating equipment. It reliably measures radial and axial shaft displacements within bearings and seals. Furthermore, the PR6423/118-110 monitors differential expansions and thrust position in turbines and compressors.
Integral to Comprehensive Protection Systems
As part of EPRO’s wide spectrum of monitoring equipment, this transducer delivers vital data. It helps track parameters like relative shaft vibration, eccentricity, and oil film thickness. Ultimately, integrating the EPRO PR6423/118-110 enhances machinery protection and enables predictive maintenance strategies.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 150 × 100 × 50 mm |
