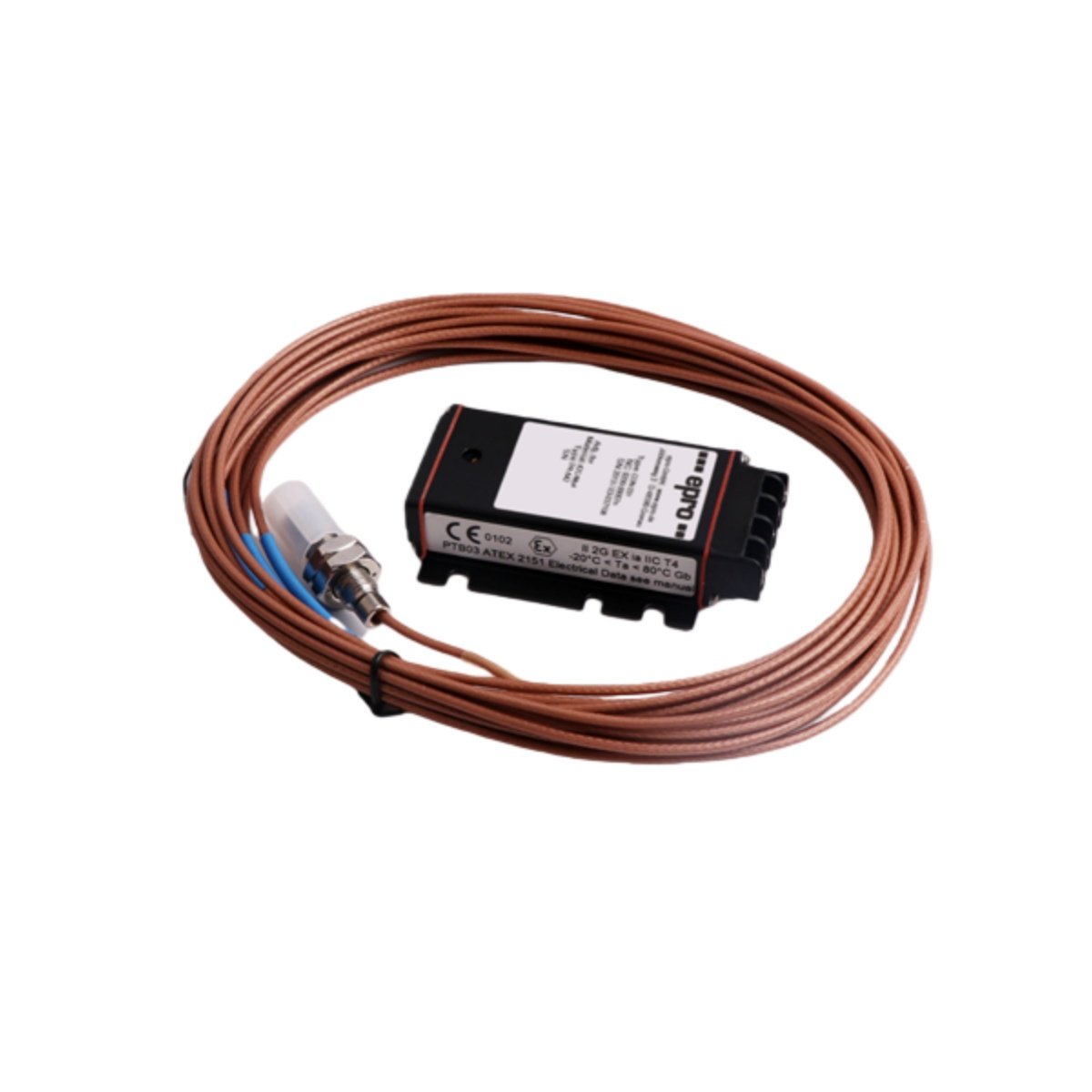

The EPRO PR6423/112-110 delivers exacting non-contact measurement for industrial machinery. This sensor accurately monitors critical parameters like shaft vibration and axial position. Its robust design ensures reliable operation even in extreme temperature environments. Furthermore, the sensor provides essential data for predictive maintenance strategies.
This model is part of the proven EPRO PR6423 series from manufacturer epro. It offers full compatibility with related variants like the PR6423/128-110. For complete system integration, pair it with a protective relay module. A suitable companion is the RMS TSG TZ C Static Trip unit available on Alibaba.
Core Technical Specifications and Performance Data
The EPRO PR6423/112-110 operates on a precise electromagnetic induction principle. It generates a stable, linear voltage output relative to the target gap distance. This consistent signal is crucial for real-time condition monitoring systems. Additionally, the sensor’s construction withstands harsh conditions like oil and steam exposure.
Detailed Technical Parameter Table
| Parameter | Specification / Description |
|---|---|
| Product Series | EPRO PR6423 Series |
| Measurement Principle | Non-Contact Eddy Current |
| Measured Parameters | Vibration, Displacement, Position, Eccentricity |
| Electrical Output Signal | Analog Voltage (-4 to -20 V DC) |
| Standard Sensitivity | 8.0 V/mm (±5% tolerance) |
| Linear Measurement Range | 0.5 to 2.0 mm (adjustable) |
| Frequency Response | 0 to 10,000 Hz (10 kHz) |
| Probe Diameter | 8 mm |
| Probe Thread Specification | M10 x 1.0 |
| Probe Length | 35 mm (sensing tip to thread end) |
| Probe Weight | Approximately 80 grams |
| Operating Temperature Range | -50°C to +180°C (-58°F to 356°F) |
| Cable Specification | Integral 3-core, shielded, high-temperature |
| Standard Cable Length | 1.0 meter |
| Connector Interface | Industry-standard radial threaded connector |
| Housing Material | Stainless Steel (AISI 316) |
| Target Material | Ferromagnetic Steels (AISI 4140 recommended) |
| System Compatibility | EPRO MMS 6000, MMS 3000, and other major monitoring systems |
Application and Integration Benefits
This sensor is ideal for monitoring radial vibration on turbine and compressor shafts. It also provides accurate measurement of axial thrust position and rotor eccentricity. The compact M10 threaded design allows for installation in confined spaces. Therefore, the EPRO PR6423/112-110 is a key component for protecting high-value rotating machinery.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 150 × 100 × 50 mm |
