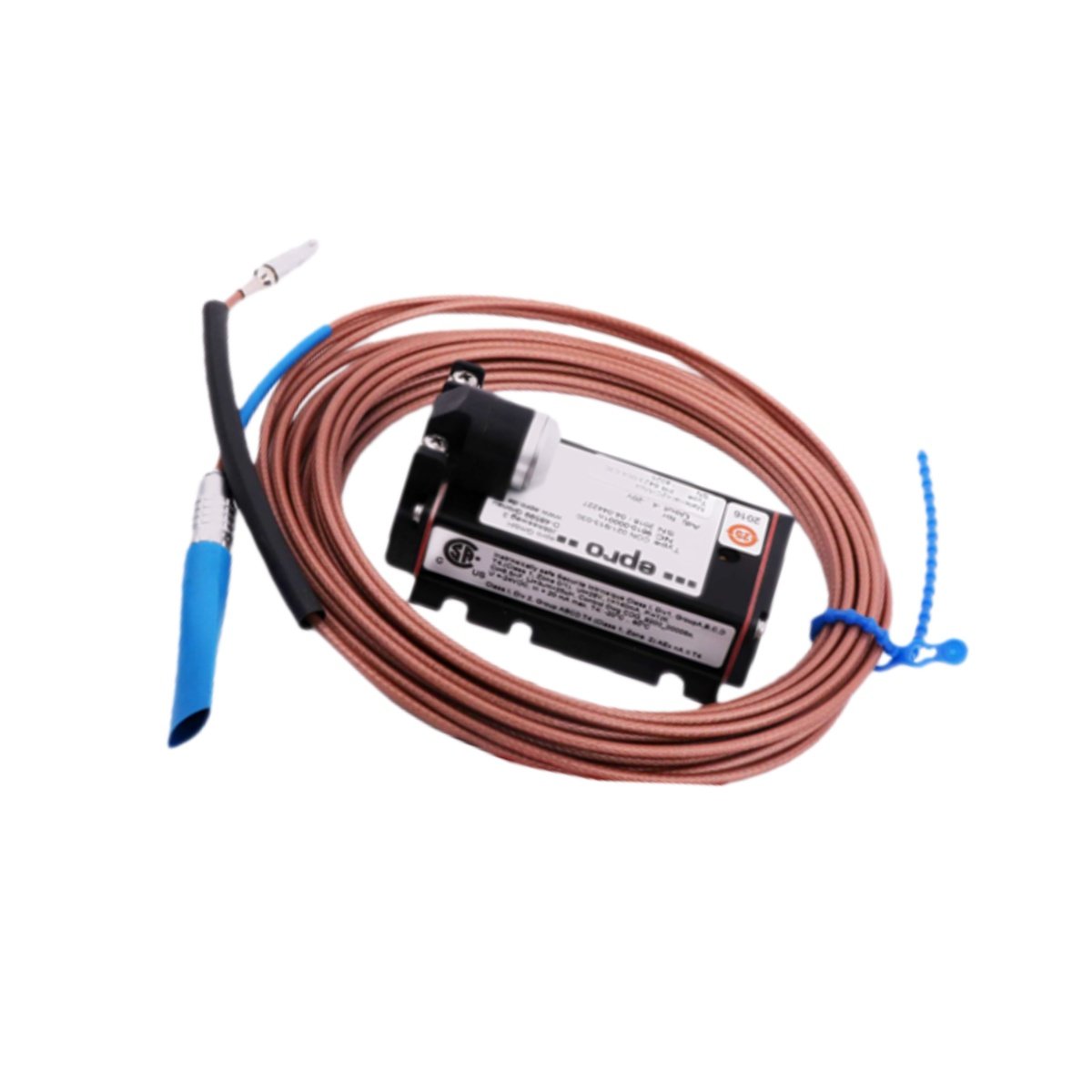

The EPRO PR6423/070-110 provides precise, non-contact measurement for critical industrial machinery monitoring. This compact 5mm eddy current sensor is part of the reliable PR 6400 series from EPRO. It delivers accurate data for vibration and position monitoring on rotating equipment such as pumps, motors, and small compressors. Maintenance teams therefore rely on its consistent performance for effective condition-based maintenance strategies.

Engineered for industrial environments, this sensor maintains stable operation across a wide temperature range. Moreover, it connects seamlessly to EPRO monitoring systems including the MMS 3000 and MMS 6000 series. Consequently, users gain trustworthy diagnostic information for protecting their mechanical assets. The PR6423/070-110 offers excellent measurement resolution where space constraints exist but precision remains critical.

Comprehensive Technical Specifications

The PR6423/070-110 features specific technical parameters that define its measurement capabilities. Always verify calibration data with official EPRO documentation before final system configuration.

Technical Specifications:

• Sensor Type: 5mm High-Sensitivity Eddy Current Probe

• Probe Diameter: 5.0 mm

• Standard Cable Length: 1.1 meters (1100 mm)

• Linear Measuring Range: 1.0 mm (±0.5 mm from electrical zero)

• Typical Sensitivity: -16.0 V/mm (calibration dependent)

• Output Voltage Range: -2.0 V to -18.0 V DC

• Frequency Response: 0 to 12,000 Hz

• Probe Operating Temperature: -35 °C to +120 °C

• Electrical Connector: Industrial locking connector

• Cable Type: High-temperature shielded cable

• Probe Housing: Stainless steel construction

• Approximate Weight: 130 grams (probe with connector)

• Internal Components: Single precision-wound coil, epoxy-potted

Design and Functional Characteristics

This sensor operates using the established eddy current principle for accurate gap measurement. The probe tip generates a high-frequency electromagnetic field during operation. This field then interacts with any nearby conductive target material, typically a machine shaft. Subsequently, the connected monitoring system detects specific changes in the field’s energy characteristics. These changes create a linear voltage output that directly corresponds to the distance to the target.

Furthermore, its compact 5mm diameter allows installation in space-limited mounting locations. The robust stainless steel housing provides reliable protection against moisture and mechanical impact. Additionally, the sensor contains no batteries or internal energy storage components. It draws all required operating power directly from its paired EPRO monitor, ensuring maintenance-free operation and long-term signal stability for continuous monitoring applications.
