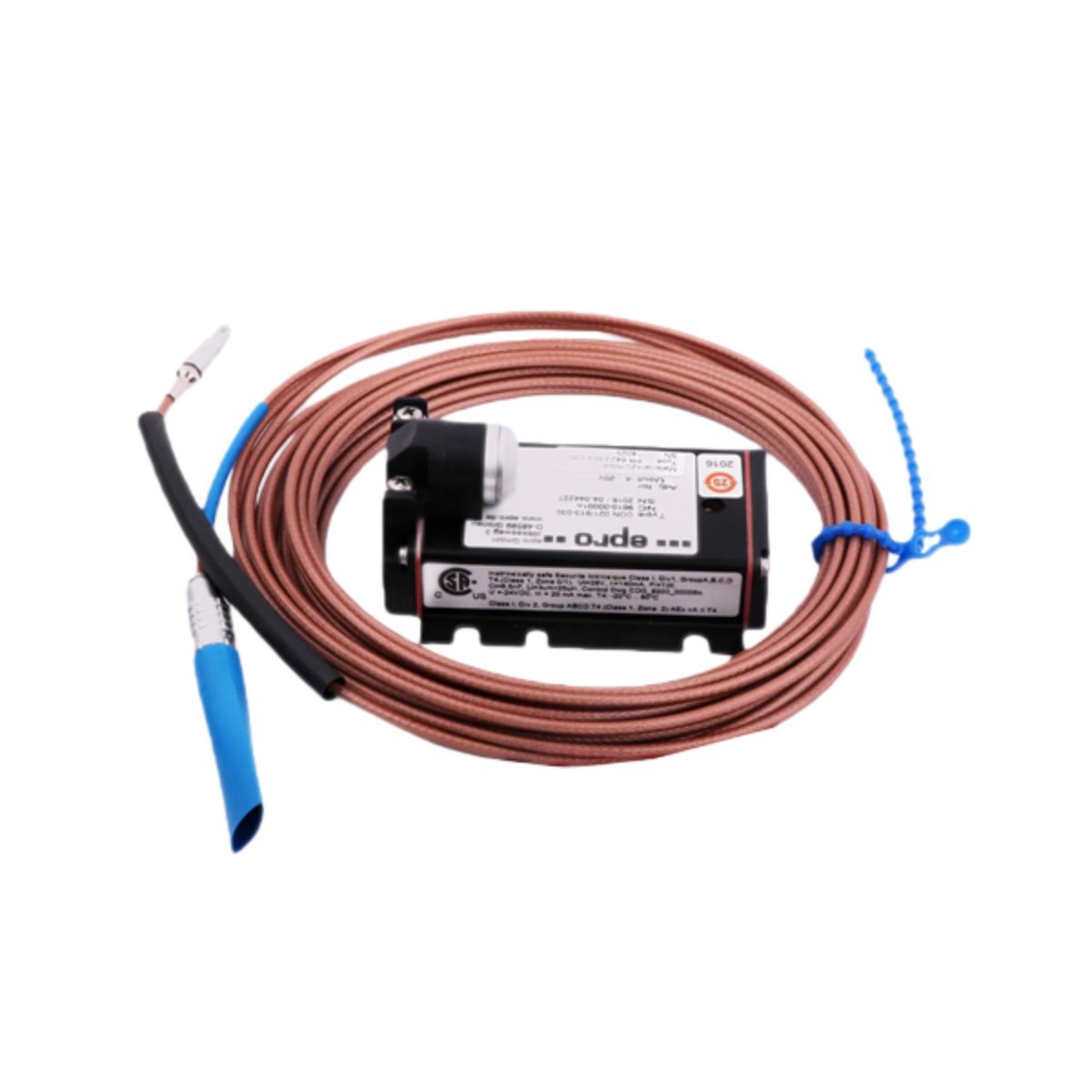

The EPRO PR6423/015-010 delivers essential non-contact measurement for general industrial machinery. This compact 5mm sensor is a core component of the reliable PR 6400 series from EPRO. It provides accurate vibration and position monitoring for motors, fans, and pumps. Maintenance teams can therefore implement effective predictive maintenance strategies with this accessible sensor solution.

Engineered for consistent performance, this sensor operates reliably in standard industrial environments. Moreover, it connects seamlessly to EPRO monitoring systems like the MMS 3000 series. Consequently, users gain trustworthy data for protecting their equipment assets without complexity. The PR6423/015-010 offers a practical balance of performance and value for everyday applications.

Detailed Technical Specifications

The PR6423/015-010 features specific parameters that define its measurement capabilities. Always reference the official EPRO technical datasheet for final system calibration and installation guidance.

Technical Specifications:

• Sensor Type: 5mm Eddy Current Displacement Probe

• Probe Diameter: 5.0 mm

• Standard Cable Length: 0.1 meters (100 mm)

• Linear Measuring Range: 1.0 mm (±0.5 mm from electrical zero)

• Typical Sensitivity: -16.0 V/mm (calibration dependent)

• Output Voltage Range: -2.0 V to -18.0 V DC

• Frequency Response: 0 to 8,000 Hz

• Probe Operating Temperature: -35 °C to +120 °C

• Electrical Connector: Integrated, fixed cable termination

• Cable Type: High-temperature resistant, shielded cable

• Probe Housing: Stainless steel construction

• Approximate Weight: 85 grams (probe only)

Design and Functional Overview

This sensor operates on the established eddy current principle for precise non-contact measurement. The probe tip generates a high-frequency electromagnetic field during operation. This field then interacts with any nearby conductive target material, such as a shaft. Subsequently, the connected monitoring system detects changes in the field’s energy, which correlate directly to distance.

Furthermore, the very short 100mm integrated cable suits installations where space is extremely limited. The robust, sealed stainless steel housing protects the internal coil from moisture and contaminants. Additionally, the sensor contains no internal batteries or energy storage components. It draws all required operating power directly from its paired EPRO monitor, ensuring simple and maintenance-free operation over many years.
