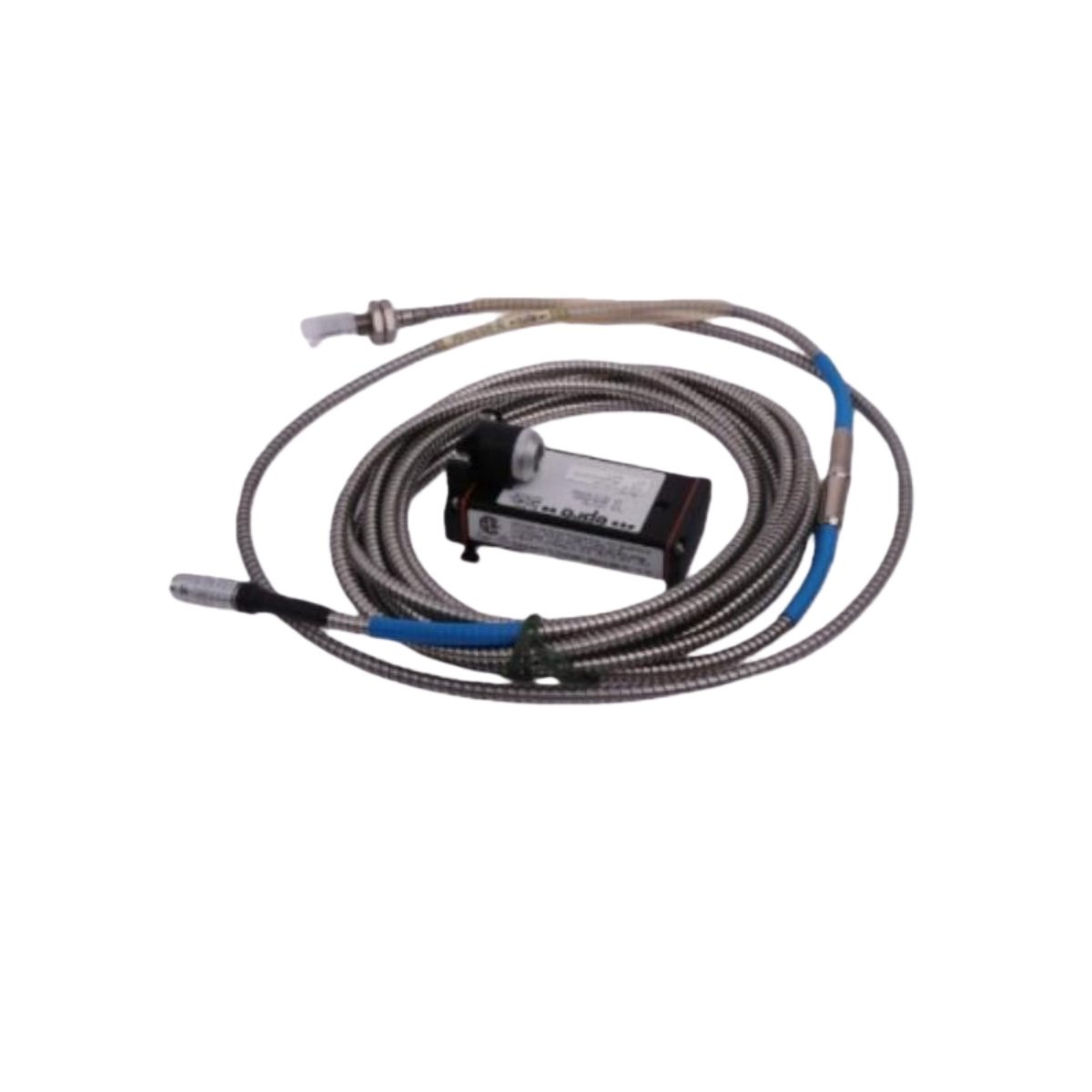

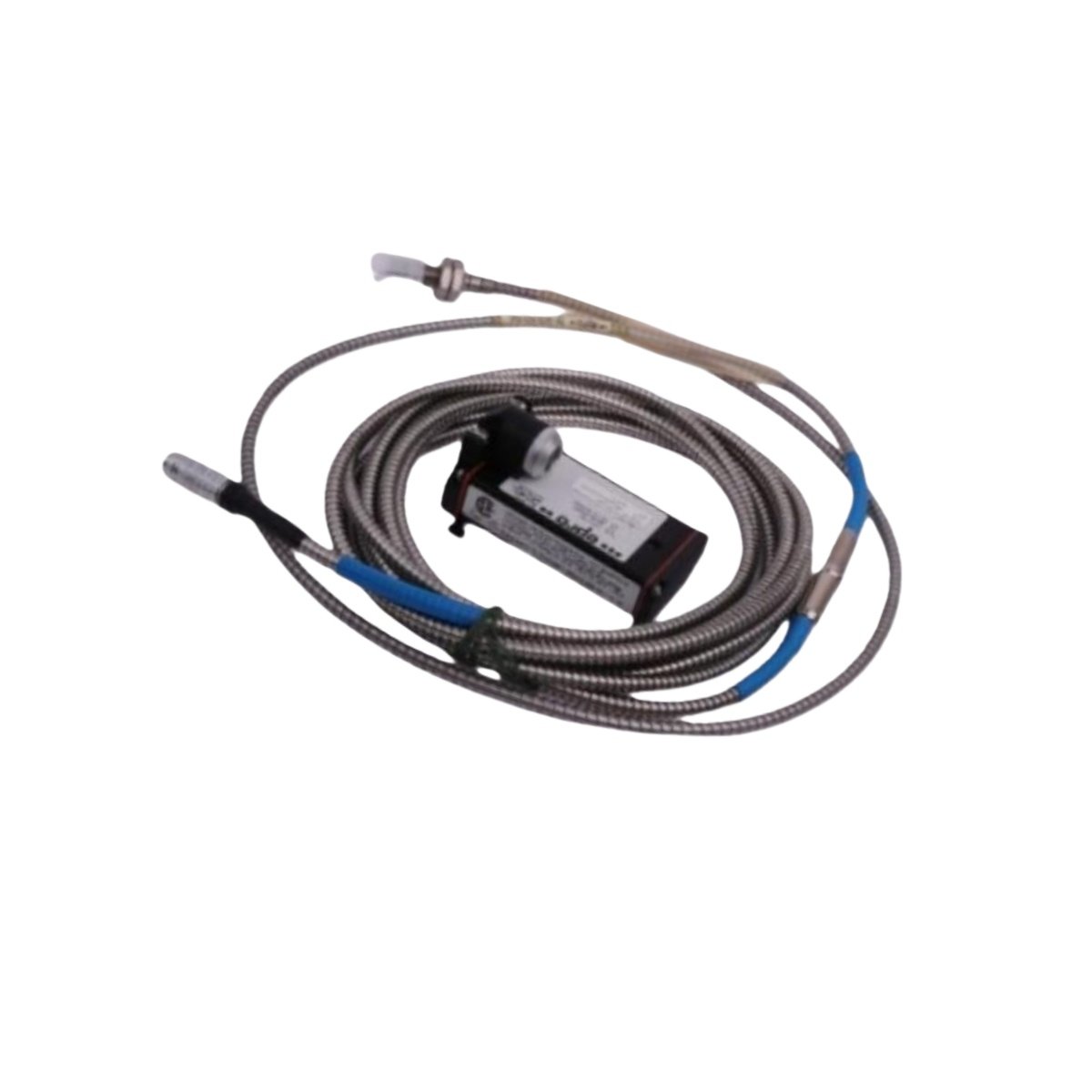

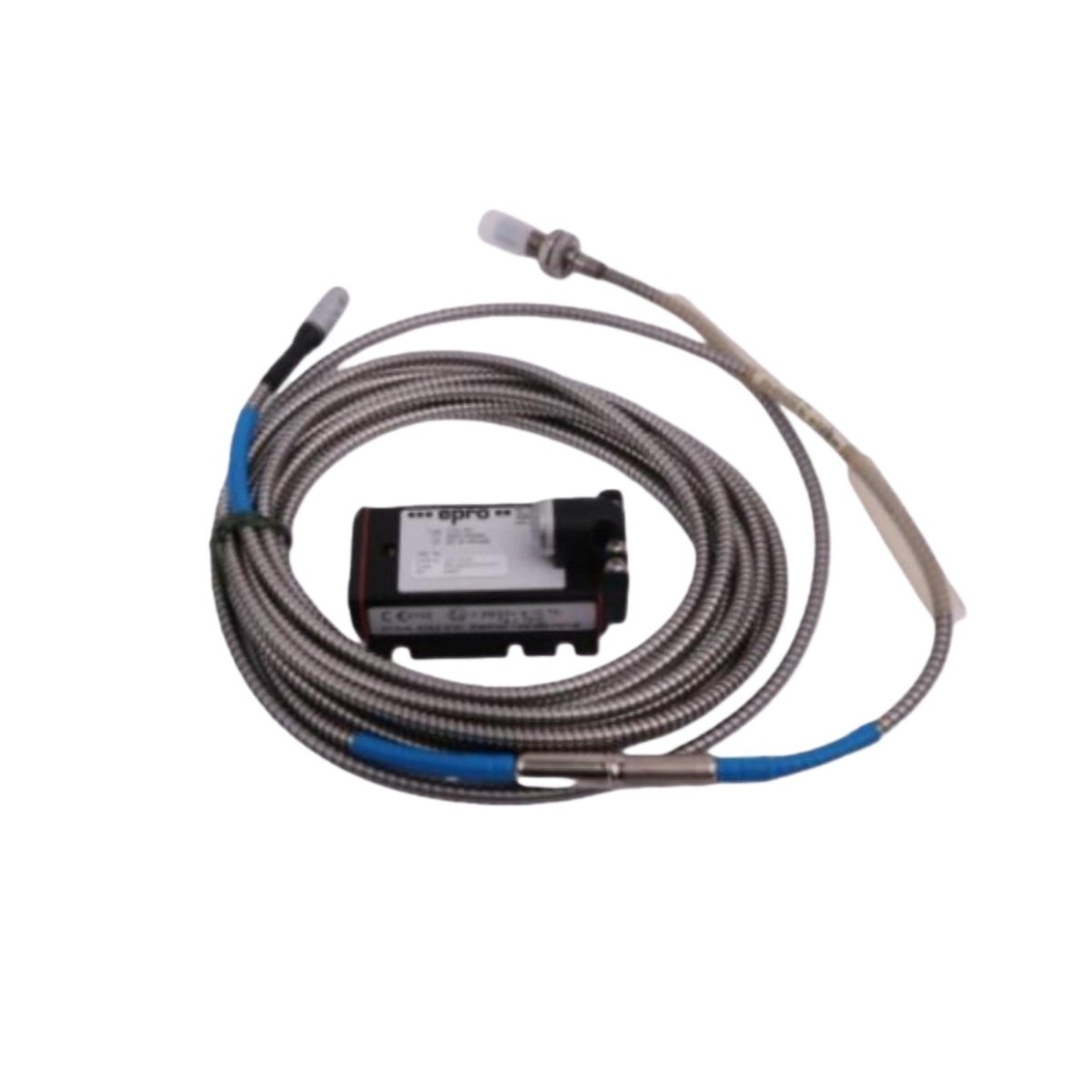

The Epro PR6423/010-010+CON021 is a non-contact sensor for critical turbomachinery. This transducer accurately measures radial and axial shaft displacement without any physical contact. Consequently, it provides essential data for monitoring position, eccentricity, and rotational speed.
Key Features for Precise Monitoring
This transducer offers a ±1.0 mm static range and 500 μm dynamic measuring capability. Its 8 V/mm sensitivity ensures precise detection of even the smallest shaft movements. Therefore, the PR6423/010-010+CON021 enhances machinery reliability in demanding environments.
Robust Design for Industrial Applications
The sensor’s compact design features an 8 mm diameter tip and weighs approximately 100 grams. It operates reliably within a wide temperature range from -35°C to +180°C. Moreover, the IP66 protection rating safeguards it against dust and powerful water jets.
Detailed Technical Specifications
Below are the complete specifications for the PR6423/010-010+CON021 transducer.
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | Epro (Emerson Electric Co.) |
| Full Part Number | PR6423/010-010+CON021 |
| Product Type | Eddy Current Displacement Transducer |
| Static Measuring Range | ±1.0 mm (±0.044 in) |
| Dynamic Measuring Range | 0 to 500 μm (0 to 20 mils) |
| Sensitivity | 8 V/mm (203.2 mV/mil) |
| Target Material | Electrically Conducting Steel |
| Operating Temperature | -35°C to +180°C (-31°F to +356°F) |
| Protection Class | IP66 (IEC 60529) |
| Sensor Tip Diameter | 8 mm |
| Thread Options | M10x1 or 3/8-24 UNF |
| Approximate Weight | 100 grams (3.53 oz) |
| Cable Length | 1 meter (3.28 ft) |
| Typical Applications | Steam/Gas Turbines, Compressors, Pumps, Fans |
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 100 × 60 × 20 mm |
