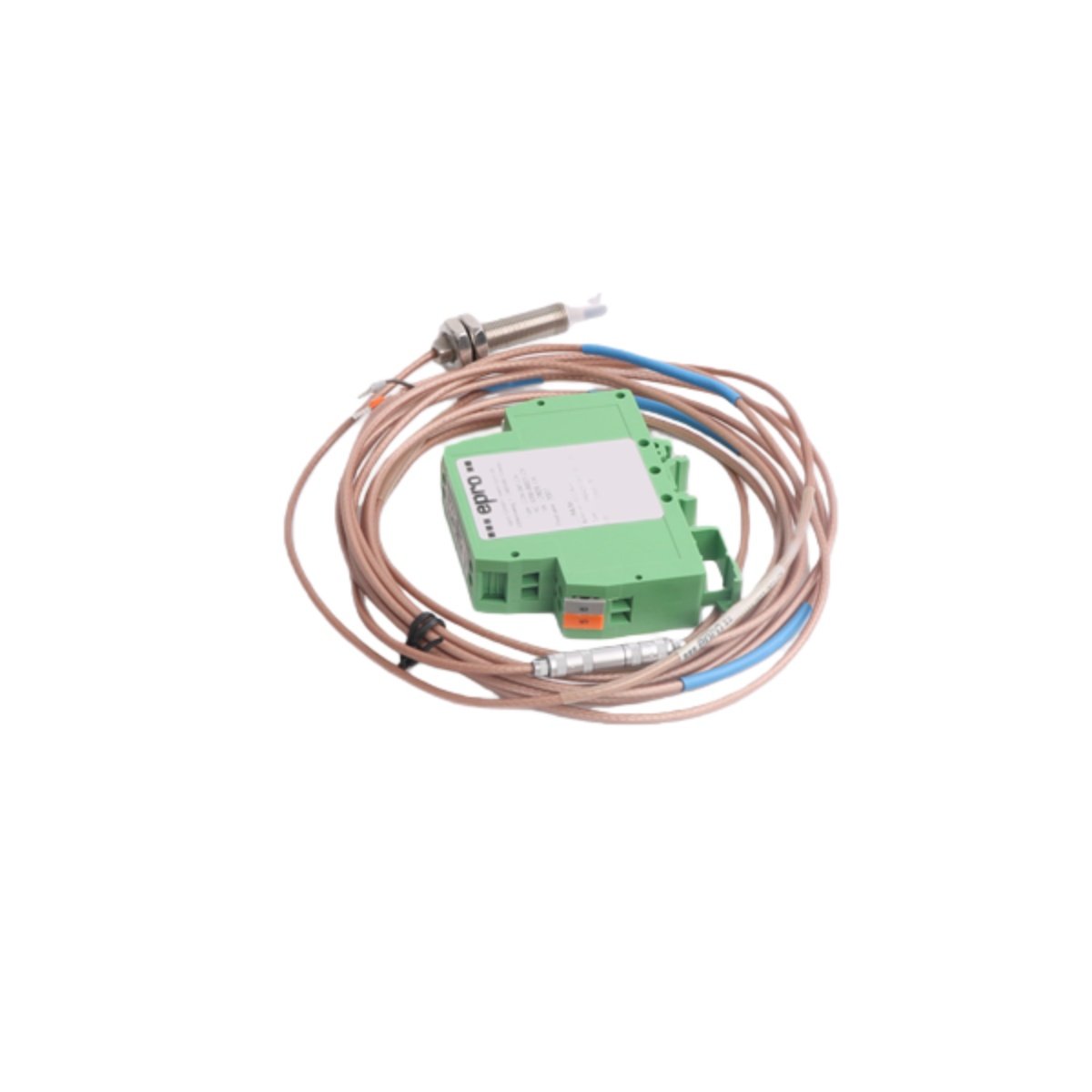

The EPRO PR6423/005-010 CN provides precise, non-contact measurement for industrial machinery. This eddy current sensor excels at monitoring shaft vibration and axial displacement. Moreover, its robust design ensures reliable performance in demanding environments. The PR6423 series, including models like the PR6423/128-110, offers consistent quality and interoperability.
Technical Specifications and Design Features
This sensor operates on a stable electromagnetic induction principle for accuracy. It generates a linear voltage output directly proportional to the target gap distance. Consequently, you receive reliable data for predictive maintenance and machine protection. The CN variant is specifically calibrated for optimal performance with standard conductive targets.
Detailed Product Parameter Table
The following table outlines the core technical specifications for the EPRO PR6423/005-010 CN eddy current sensor.
| Parameter | Specification / Description |
|---|---|
| Product Series | EPRO PR6423 CN Series |
| Measurement Principle | Non-Contact Eddy Current |
| Key Measured Parameters | Vibration, Displacement, Position, Eccentricity |
| Electrical Output | Analog Voltage (-4 to -20 V DC) |
| Target Material | Ferrous and Non-Ferrous Conducting Metals (e.g., AISI 4140) |
| Nominal Sensitivity | Typically 8.0 V/mm (200 mV/mil) |
| Linear Range | 0.5 to 1.0 mm (20 to 40 mils) from target |
| Operating Temperature Range | Probe: -50 to +150°C (-58 to +302°F) |
| Frequency Response | 0 to 10 kHz |
| Power Supply Requirement | Typically -24 V DC from associated EPRO driver |
| Electrical Connection | Integral, shielded cable with standardized connector |
| Housing Material | Stainless Steel for durability and corrosion resistance |
| Primary Application | Turbo-machinery, Compressors, Pumps, Large Motors |
Integration and System Compatibility
You can seamlessly integrate this sensor into comprehensive condition monitoring systems. It is fully compatible with EPRO’s monitoring frameworks like the MMS 6000 series. For a complete protection solution, consider pairing it with a trip relay module. You can find compatible units like the RMS TSG TZ C Static Trip on Alibaba. Ultimately, epro engineers this sensor for long-term stability and minimal drift over time.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 150 × 100 × 50 mm |
Reviews
There are no reviews yet.
