Overview

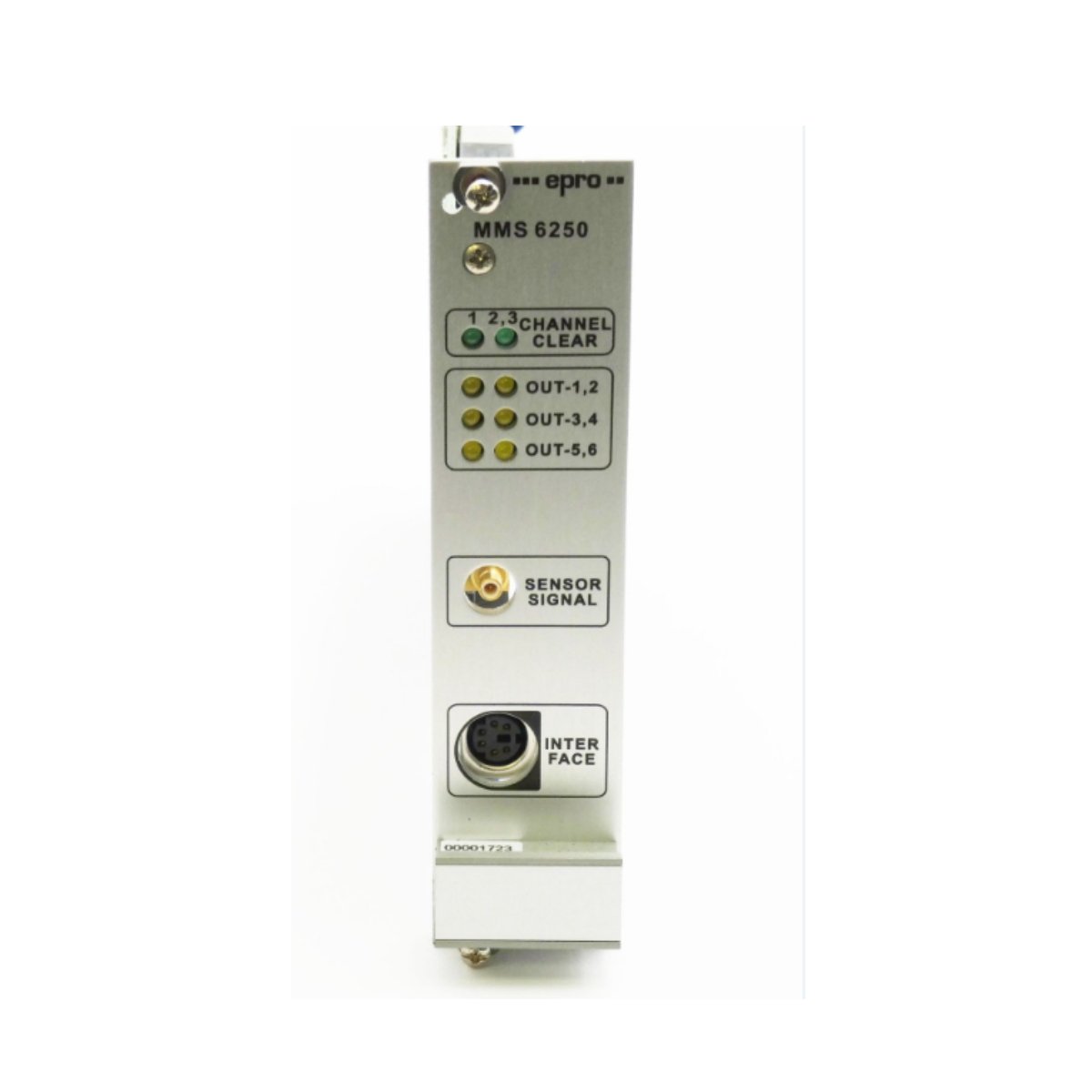

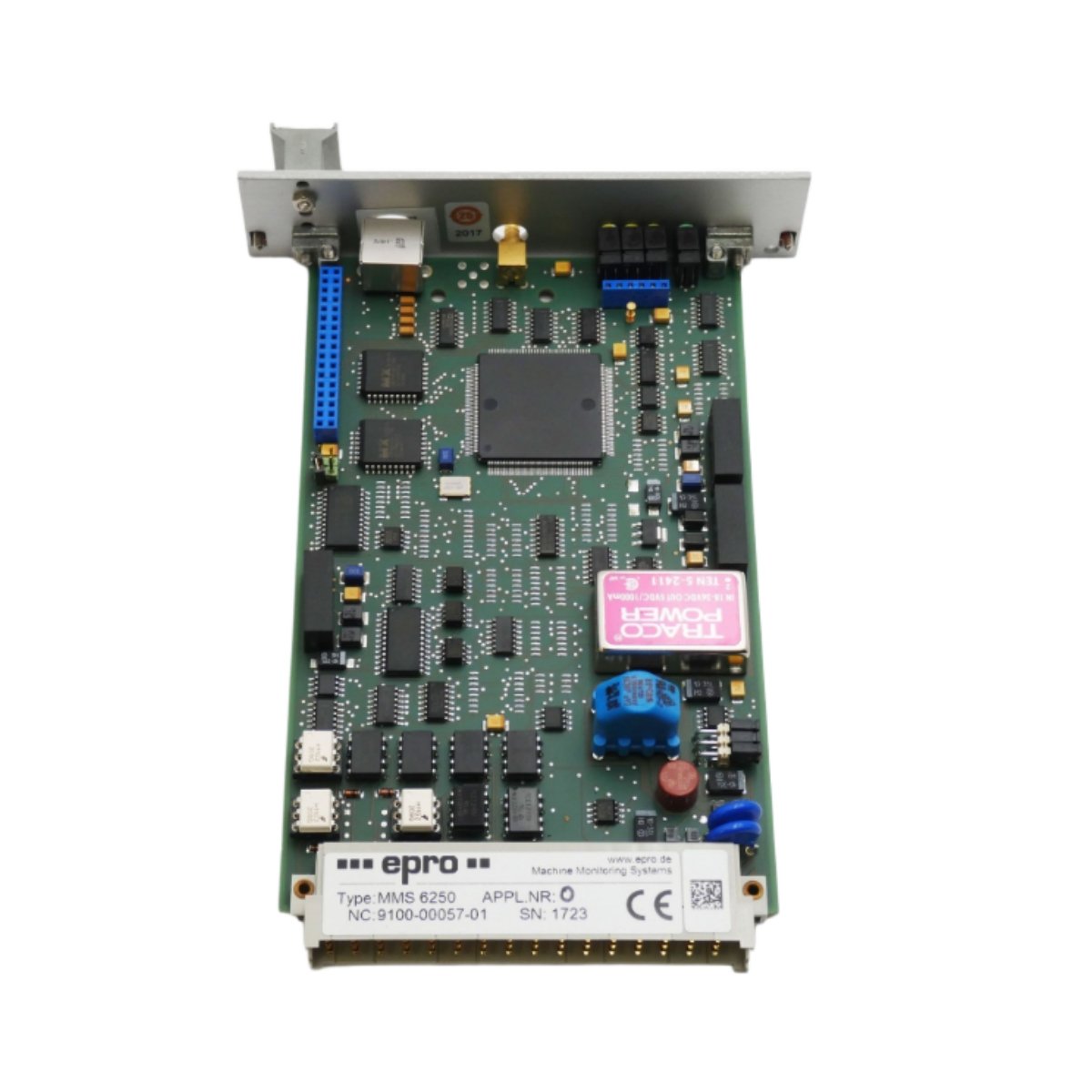

The EPRO MMS6250/MMS 6250 shaft displacement monitor delivers precise, real-time measurement for rotating machinery. Designed by EPRO, this device ensures high reliability, fast response, and seamless integration with industrial control systems.
Key Features of MMS6250/MMS 6250
- Differential input with open-circuit and short-circuit protection ensures robust sensor operation.
- High accuracy of ±1% of full scale supports precise shaft position monitoring.
- Fast response time of less than 2 ms enables real-time process control.
- Compliant with IEC 61000-4 EMC standards for industrial environments.
- Supports broad operating conditions from -10°C to +60°C with 5–95% humidity tolerance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Signal Input | Differential, non-reactive, open/short-circuit proof |
| Input Voltage Range | 0…27.3 VDC |
| Limit Range | 0…30 VDC |
| Input Resistance | >100 KΩ |
| Voltage Range | 0…4.1 V |
| Sensor Signal | ×0.15 |
| Accuracy | ±1% full scale |
| Frequency Range | 0…10 Hz |
| Internal Resistance | 10 KΩ |
| Permissible Load | >1 MΩ |
| Voltage Output | +24 VDC (High), 0 VDC (Low) |
| Max Current | 25 mA (limited) |
| Response Time | <2 ms |
| EMC Immunity | IEC 61000-4 compliant |
| Operating Temp | -10°C to +60°C |
| Storage Temp | -20°C to +85°C |
| Humidity | 5–95% non-condensing |
Physical Specifications
- Dimensions: 12 cm × 8 cm × 3 cm
- Weight: 0.3 kg
- Country of Origin: United States
Advantages
- Compact design allows easy integration into existing machinery.
- High input resistance and voltage output flexibility suit various sensor systems.
- Rapid response supports dynamic shaft monitoring in industrial automation.
- Rugged build ensures stable performance under wide temperature and humidity ranges.
Details
| Weight | 0.3 kg |
|---|---|
| Dimensions | 120 × 80 × 30 mm |
