Core Function for Predictive Maintenance

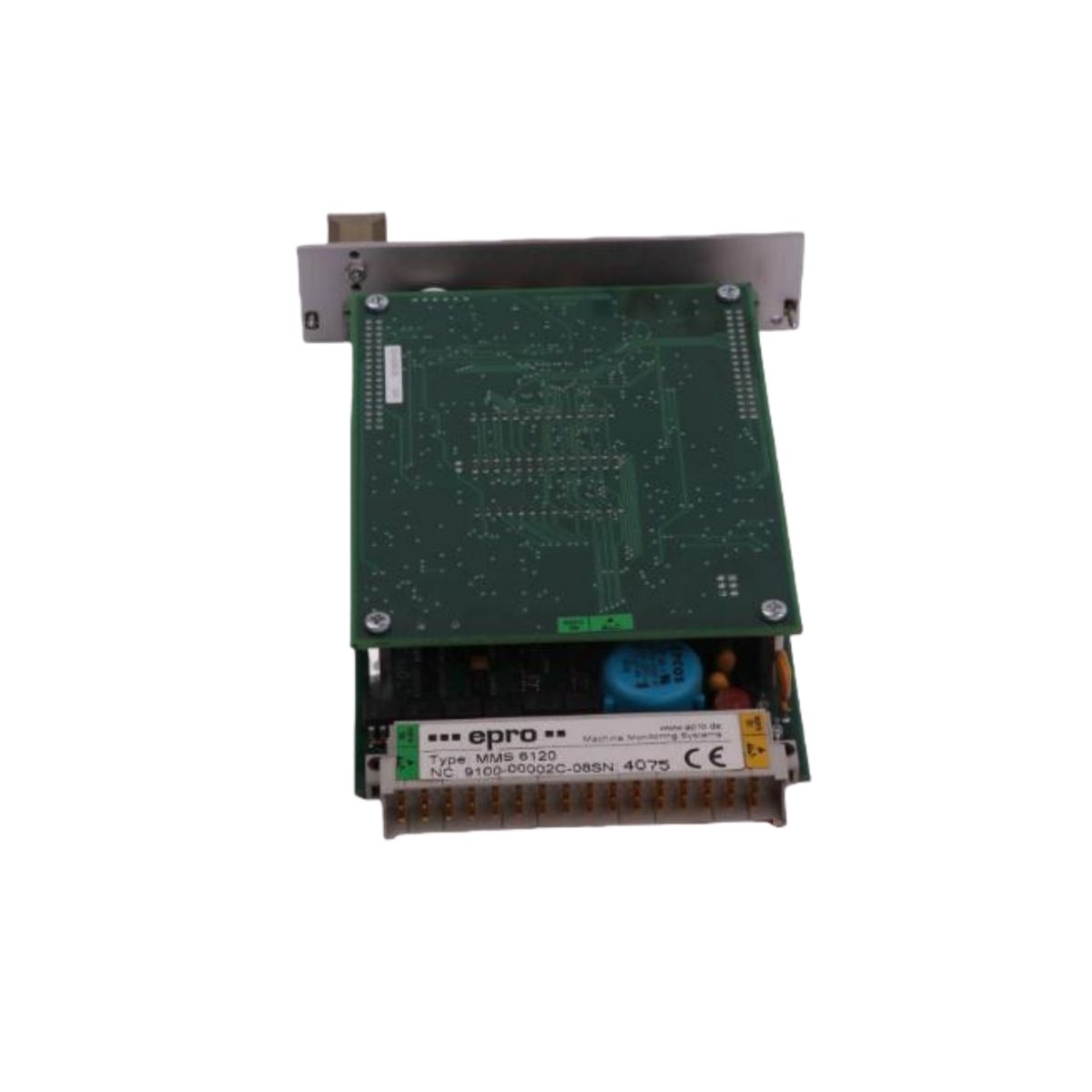

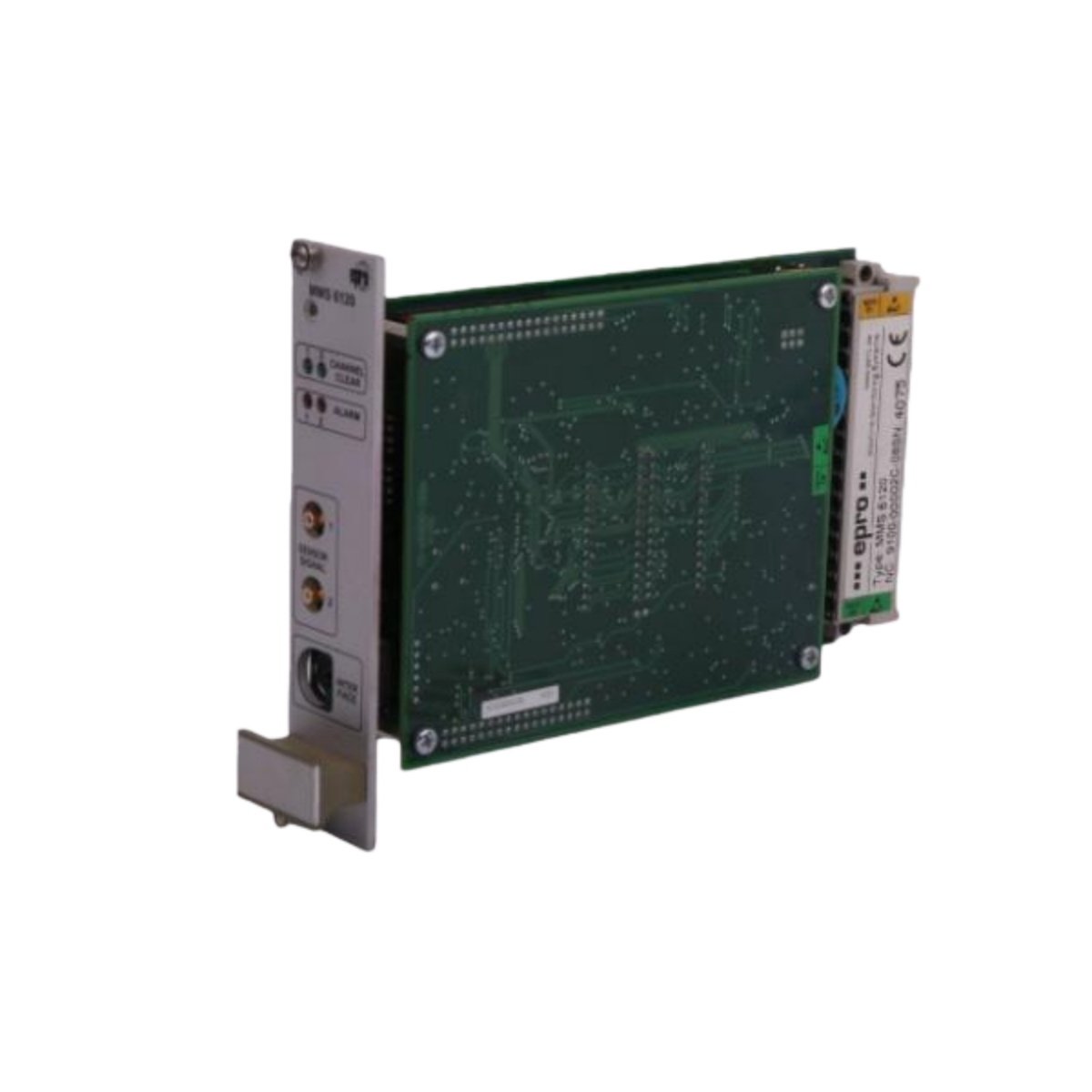

The EPRO MMS6120 is a Dual Channel Bearing Vibration Monitor designed for continuous machinery health assessment. This unit simultaneously monitors two independent electrodynamic vibration velocity sensors. It provides critical data for predictive maintenance programs by detecting early signs of bearing wear and imbalance. Consequently, it helps prevent costly unplanned downtime and catastrophic machine failures.
Key Features and Signal Integrity
This monitor operates in a “Danger” mode, triggering alerts when vibration exceeds pre-set danger thresholds. It features galvanic isolation between sensor inputs and the power supply for superior noise immunity. The MMS6120 offers a high input resistance greater than 100 kΩ to minimize signal loading and distortion. Furthermore, its measuring ranges are continuously adjustable via configuration software for application-specific tuning.
Detailed Technical Specifications
Engineered for industrial environments, the monitor functions reliably across a wide temperature range. It supports a frequency measurement range from 10 Hz to 1000 Hz, per VDI 2056 standards. The following table details its comprehensive electrical, measurement, and physical parameters.
| Parameter | Specification |
|---|---|
| Manufacturer | EPRO (Amphenol) |
| Product Model | MMS6120 |
| Device Type | Dual Channel Bearing Vibration Monitor |
| Sensor Inputs | 2 Independent Channels (DIN 45666 / ISO 3945) |
| Input Type | Electrodynamic Vibration Velocity Sensors |
| Key Operating Mode | “Danger” Make or Break |
| Galvanic Isolation | Yes (Inputs from Power Supply) |
| Input Resistance | >100 kΩ |
| Input Voltage Range | -5 to +15 V DC |
| Frequency Range | 10 Hz to 1000 Hz |
| Dynamic Input Voltage | 311 mVpp to 9500 mVpp (for 100% range) |
| Alarm Levels | 2 Adjustable Levels per Channel |
| Control Inputs | Common Logic Binary Inputs for both channels |
| Output Relays | Potential-free Optocouplers (48VDC, 100mA max) |
| Operating Temperature | -40°C to +70°C |
| Dimensions (W x H x D) | 30.0 mm x 128.4 mm x 160.0 mm (6 TE x 3 HE) |
| Weight | approx. 0.5 kg (450 g) |
Application and Configuration
Use this monitor to protect critical assets like pumps, fans, motors, and gearboxes by tracking their vibration signature. Configure the alarm setpoints and measurement ranges using the dedicated EPRO software. The EPRO MMS6120 is an essential component of a comprehensive condition monitoring system. Therefore, it is vital for industries focused on reliability-centered maintenance and operational safety.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 30 × 128.4 × 160 mm |
