Product Overview

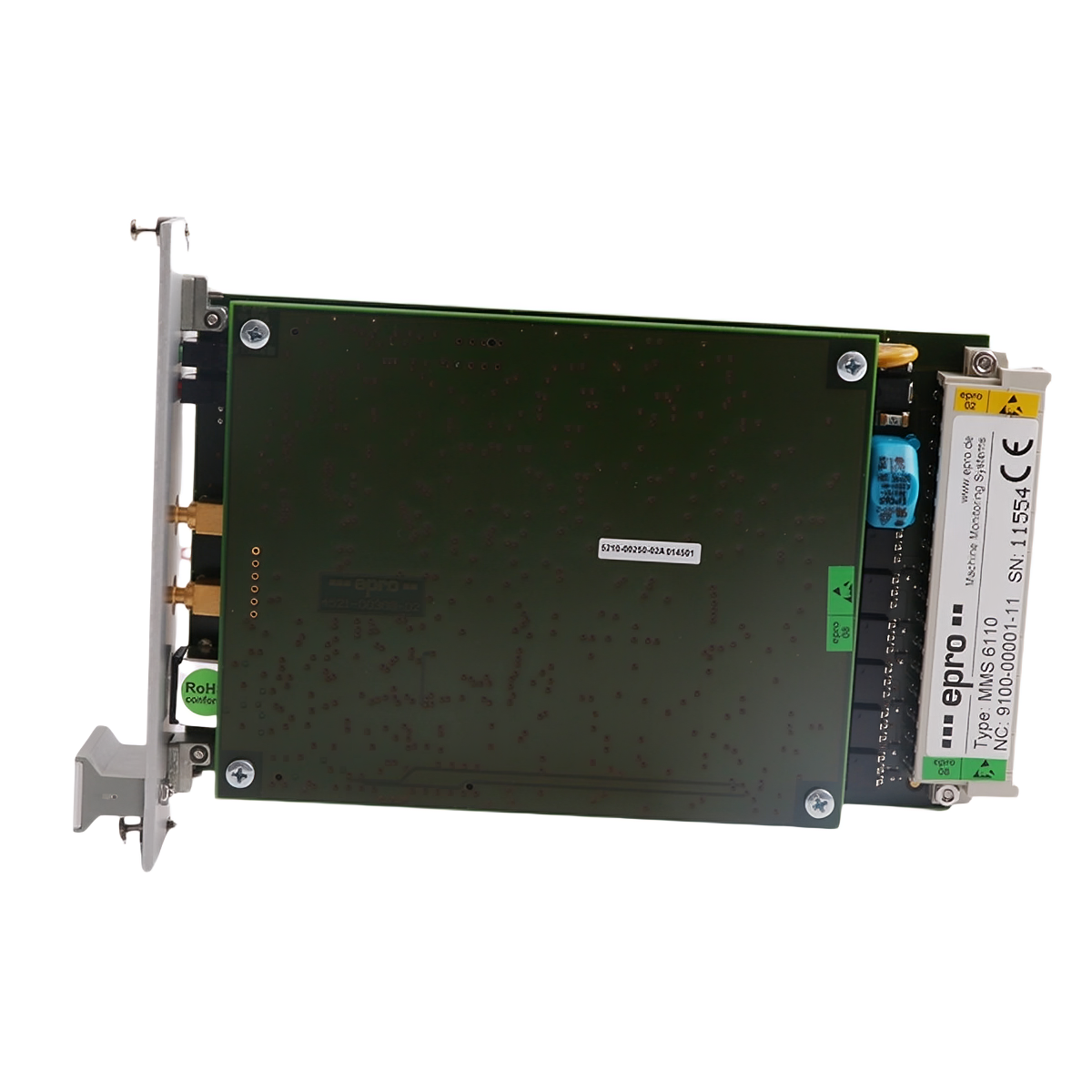

The Epro MMS 6110 is a high-performance dual-channel rotor vibration monitor, designed for turbomachinery and industrial applications. It integrates seamlessly into the MMS 6000 system but can also operate as a standalone unit for flexible monitoring. Moreover, the module ensures continuous operation due to its redundant supply inputs, even during power interruptions.
This unit supports local configuration via RS 232 and data output through RS 232 or RS 485 interfaces, enabling precise measurements of vibration amplitude, harmonic orders, and phase angles. Therefore, it provides reliable diagnostic information for performance optimization.
Functional Highlights
- Dual-Channel Monitoring: Supports two independent eddy-current sensor inputs for high accuracy.
- Replaceable During Operation: Enables module swap without shutting down the system, minimizing downtime.
- Extended Self-Checking: Built-in diagnostics monitor module health and detect abnormalities.
- Password Protected Levels: Secures configuration and prevents unauthorized changes.
- Compatibility: Works with PR 6422/… to PR 6425/… transducers with CON/… interfaces.
In addition, this module delivers FFT analysis inputs and integrates into distributed control or fieldbus systems for comprehensive turbomachine monitoring.
Technical Data
| Parameter | Specification |
|---|---|
| Model | MMS 6110 |
| Brand | Epro |
| Channels | 2 independent |
| Sensor Type | Eddy-current |
| Input Resistance | >100 kΩ |
| Input Voltage Range | 0…22 V DC |
| Frequency Range | 1/5…50…2000 Hz |
| Isolation | Galvanically isolated from system voltages |
| Keypulse Input | Optional, 24 V logic, min. 10 μs pulse |
| Sensor Supply | Separate buffered for each channel |
| Control Inputs | Binary logic, optocoupler compatible |
| Voltage Inputs | 0…10 V, 10-bit resolution |
| Dimensions | 30 mm W x 128.4 mm H x 160 mm L |
| Net Weight | 320 g |
| Gross Weight | 450 g |
| Rack Fit | 14 modules (28 channels) in 19-inch rack |
These specifications ensure high reliability and fast response, making the MMS 6110 suitable for demanding industrial environments.
Typical Applications
- Turbomachinery Monitoring: Steam, gas, and hydro turbines, compressors, fans, and centrifuges.
- Analysis & Diagnostic Systems: Inputs for MMS 6850 and standalone monitoring solutions.
- Plant Control Integration: Compatible with DCS, field bus, and host computers for system-wide analysis.
- Compliance with Standards: Meets API 670, VDI 2059, DIN 45670 A/B for rotor vibration monitoring.
For instance, MMS 6110 enhances operational safety and extends turbine lifetime by detecting abnormal vibrations early.
Details
| Weight | 0.32 kg |
|---|
