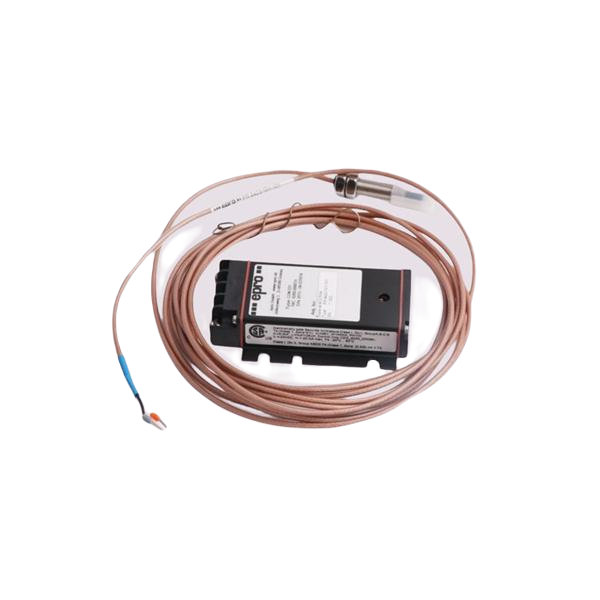

Product Overview
The EPRO PR6423/003-030-CN Eddy Current Sensor and CON021 Signal Converter work in tandem to deliver accurate and reliable measurements in industrial applications. The PR6423/003-030-CN measures displacement, thickness, and position, while the CON021 Signal Converter processes the data, ensuring precise results with minimal error.
The PR6423/003-030-CN sensor features a tip diameter of 8mm, M10x1 case threads, and a 55mm sleeve length. Additionally, the sensor comes with a standard 8-meter cable and a Lemo connector to ensure robust signal transmission. These components integrate seamlessly into advanced industrial systems, making them ideal for a variety of applications.
PR6423/003-030-CN Eddy Current Sensor
The PR6423/003-030-CN Eddy Current Sensor provides non-contact measurement capabilities, which are crucial for high-precision applications such as displacement and position monitoring. With a 55mm sleeve length and M10x1 threads, this sensor integrates easily into various setups, offering excellent flexibility.
Key Features
- Tip Diameter: 8mm, optimized for accurate measurements in confined spaces.
- Case Threads: M10x1, ensuring compatibility with a wide range of mounting fixtures.
- Sleeve Length: 55mm, making it versatile for different industrial needs.
- Cable Length: 8.0m, offering flexible installation options.
- Cable End: Lemo connector, for reliable signal transmission.
- Armored Cable Option: Available when choosing Reverse Mount with an Adapter Plug.
Example Model Breakdown
- PR6423/003-030-CN: Eddy Current Sensor featuring 8mm tip, M10x1 threads, 55mm sleeve, 8m cable, and Lemo connector.
CON021 Eddy Current Signal Converter
The CON021 Signal Converter ensures accurate signal conversion when paired with the PR6423 Eddy Current Sensor. With a 2.0mm measuring range and a linearity error of ≤ 1.0%, this converter guarantees reliable data processing.
Key Features
- Sensor Compatibility: Specifically designed for the PR6423 Eddy Current Sensor.
- Measuring Range: 2.0mm (standard), ensuring precision in various applications.
- Linearity Error: ≤ 1.0%, allowing for accurate and consistent signal conversion.
Technical Specifications
| Feature | Specification |
|---|---|
| Tip Diameter | 8mm |
| Case Threads | M10x1 |
| Cable Length | 8.0m |
| Sleeve Length | 55mm |
| Cable End | Lemo connector |
| Armored Cable | Available with Reverse Mount (with Adapter Plug) |
| Sensor Type | PR6423 Eddy Current Sensor |
| Measuring Range | 2.0mm (standard) |
| Linearity Error | ≤ 1.0% |
Applications
- Non-contact Measurement: The PR6423/003-030-CN sensor is ideal for precise displacement and position measurements, offering excellent performance in demanding environments.
- Thickness Measurement: This sensor excels in thickness measurement, ensuring high accuracy even in challenging conditions.
- Industrial Automation: It integrates seamlessly into automation systems, providing continuous and reliable monitoring.
Frequently Asked Questions (FAQ)
Q1: What is the measuring range of the PR6423/003-030-CN Eddy Current Sensor?
A1: The PR6423/003-030-CN has a standard measuring range of 2.0mm, providing high precision for displacement measurements.
Q2: Can the PR6423/003-030-CN sensor be used in extreme environments?
A2: Yes, the PR6423/003-030-CN is built for industrial environments, offering durable and reliable performance in tough conditions.
Q3: Is the CON021 compatible with other sensors?
A3: The CON021 is specifically designed for use with the PR6423 Eddy Current Sensor, optimizing signal conversion for this model.
Q4: What connector type does the PR6423/003-030-CN use?
A4: The PR6423/003-030-CN uses a Lemo connector, ensuring secure and high-quality signal transmission.
Q5: What is the linearity error of the CON021 signal converter?
A5: The CON021 offers a low linearity error of ≤ 1.0%, ensuring precise and reliable signal conversion.
Details
| Weight | 0.1 kg |
|---|
