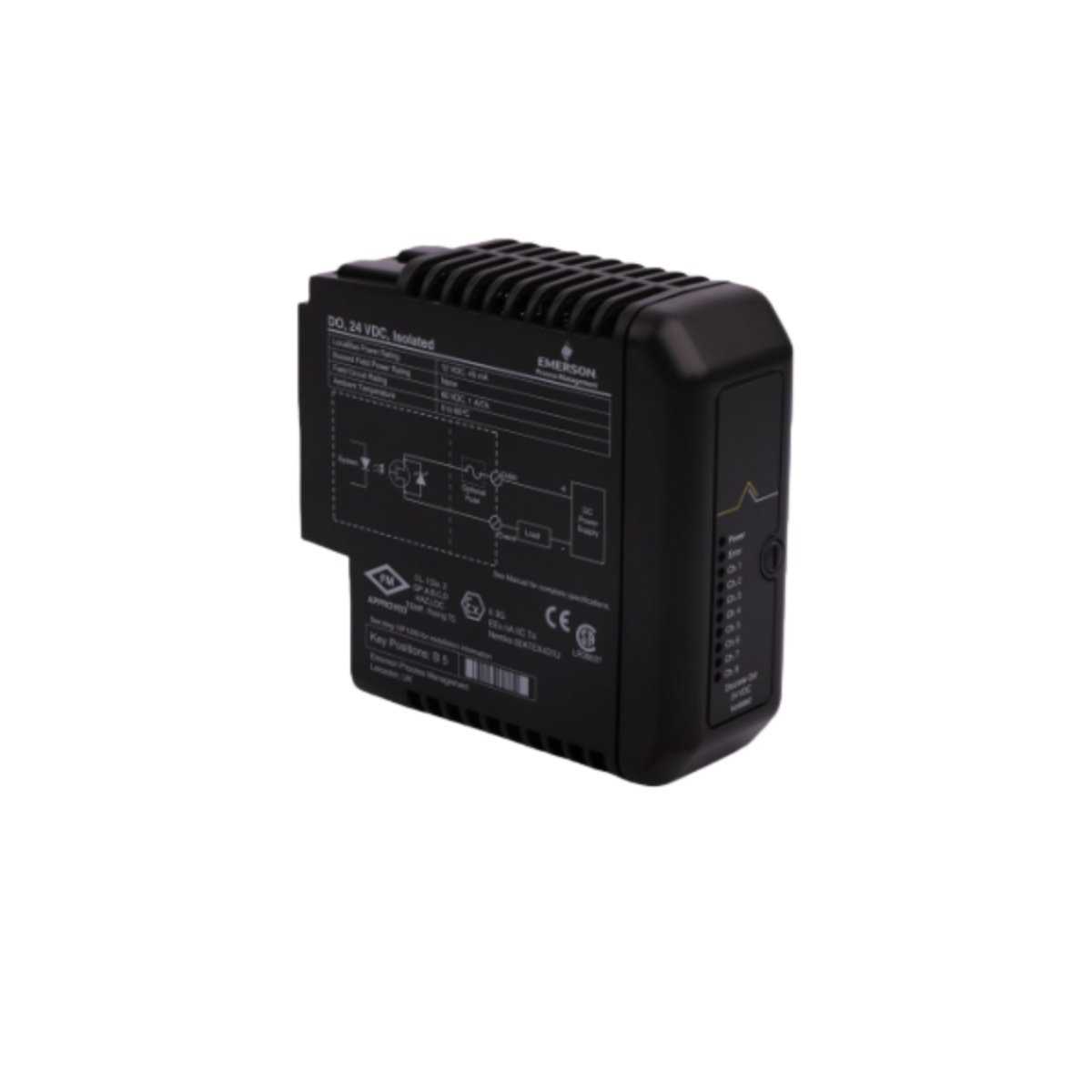

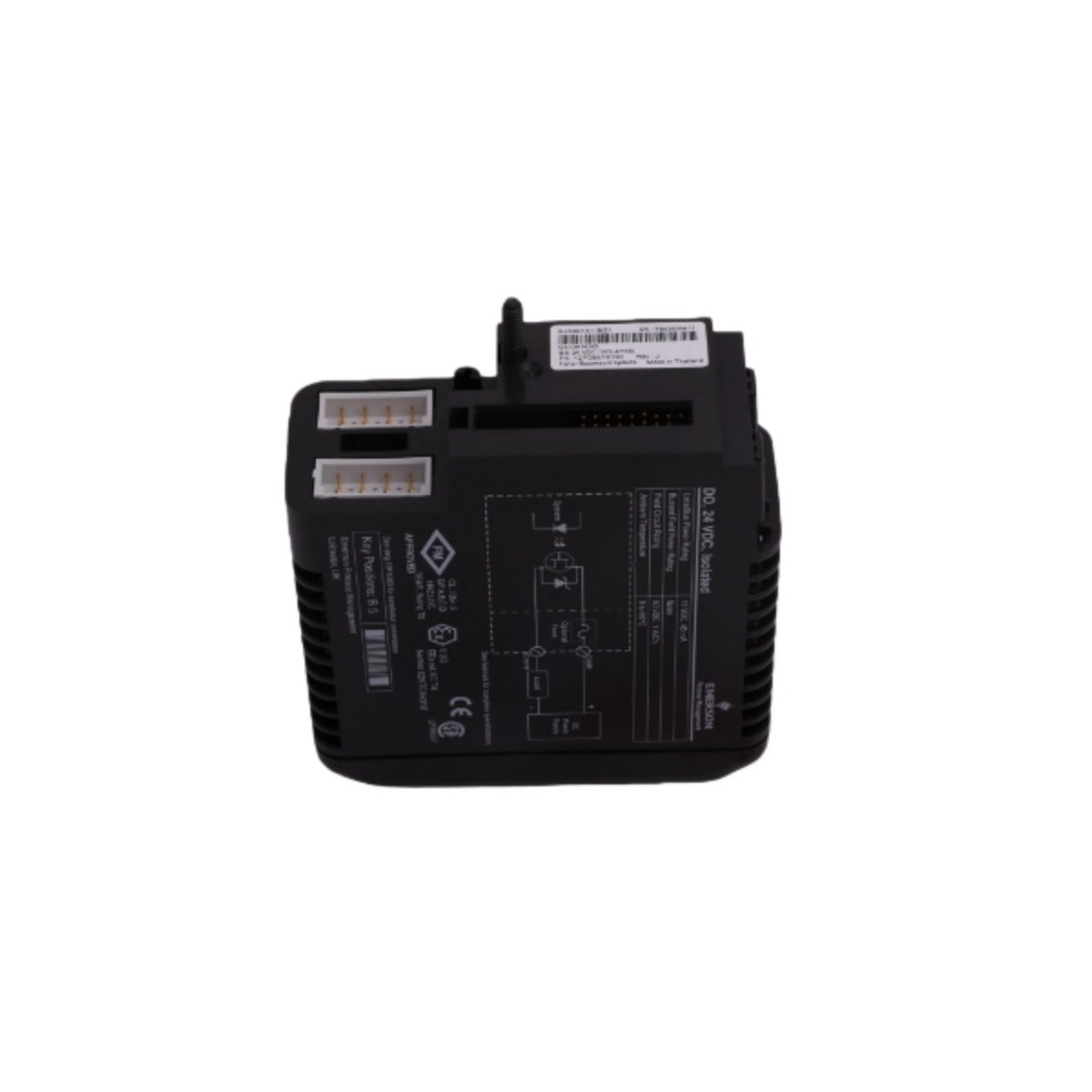

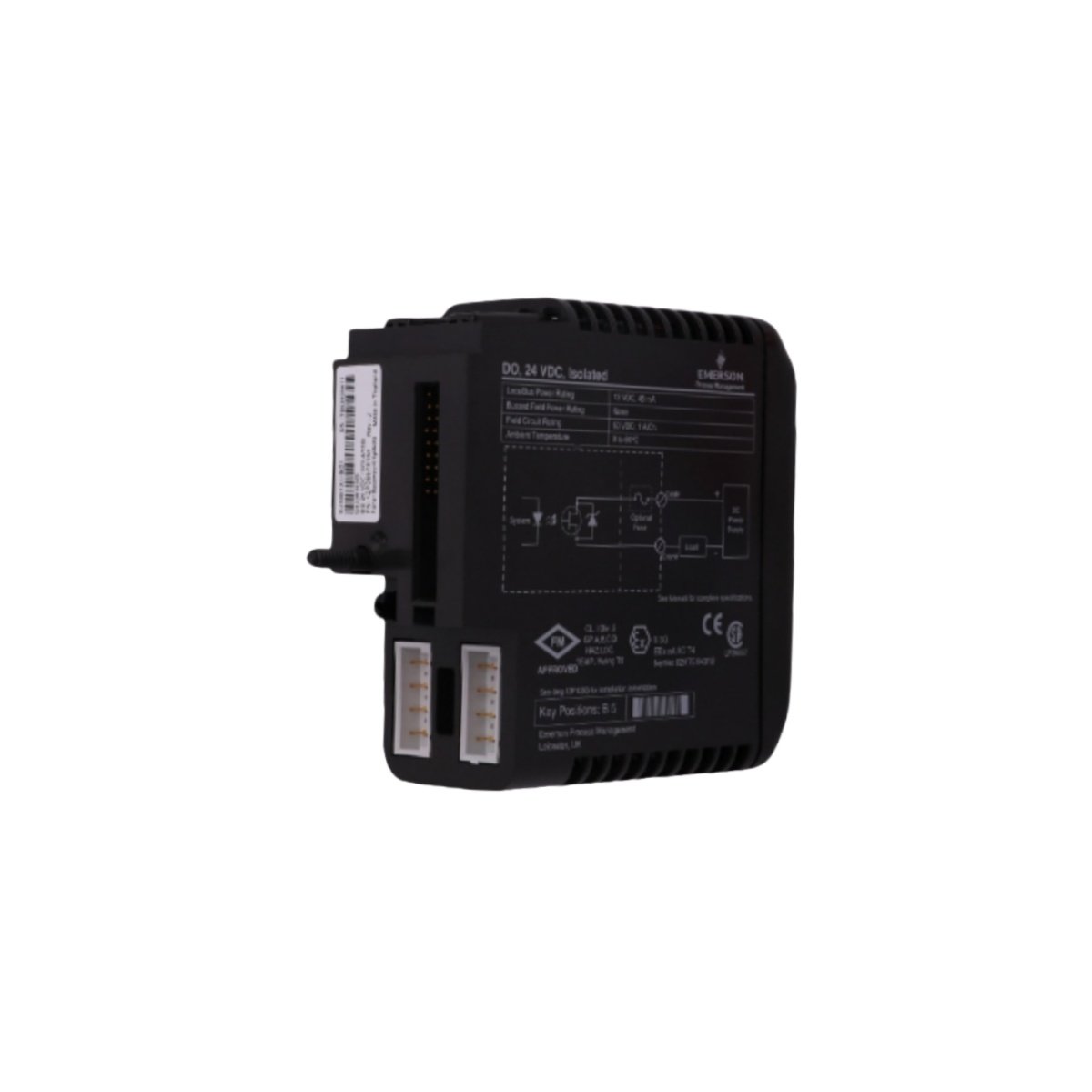

The Emerson VE4002S1T1B2 KJ3001X1-BG1 12P0557X162 is a robust 24VDC digital output module. It belongs to the high-performance Emerson DeltaV M-Series family of I/O products. This module delivers reliable power to field actuators under severe industrial conditions. Furthermore, its design supports extensive and flexible input/output arrangements within a control system.
Detailed Technical Specifications
This DeltaV module provides twelve isolated output channels for direct device control. Each channel can switch significant current, enabling command of solenoids, relays, and contactors. The high channel-to-channel isolation effectively prevents electrical noise and ground loop interference.
Below are the comprehensive technical parameters for this module:
| Parameter Category | Specification Details |
|---|---|
| Manufacturer & Model | Emerson VE4002S1T1B2 KJ3001X1-BG1 12P0557X162 |
| System Series | DeltaV M-Series I/O |
| Module Type | Digital Output (Sourcing) |
| Supply Voltage | 24 VDC |
| Output Voltage | 24 VDC (per channel) |
| Rated Current per Channel | 1.0 A |
| Total Number of Channels | 12 |
| Isolation Rating | 1500 Vrms (Channel-to-Channel & Channel-to-Bus) |
| Operating Temperature Range | -40°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Module Dimensions (H x W x D) | 222 mm x 155 mm x 89 mm |
| Module Weight | 1.5 kg |
| Power Dissipation | Approximately 10 Watts (typical at full load) |
| Connection Interface | Removable terminal block (field wiring) |
| Status Indication | Per-channel LED on front plate |
| Internal Components | 12x power FETs, isolation optocouplers, driver ICs, protection circuits |
Design and Integration Features
The module’s rugged construction ensures longevity in harsh environments like oil and gas or chemical plants. Its compact form factor allows high-density mounting in DeltaV electronic marshalling cabinets. Moreover, the diagnostic LEDs provide instant visual feedback for each output’s status, simplifying troubleshooting.
Primary Application Environments
The Emerson VE4002S1T1B2 module is essential for precise final control element operation. It is ideal for process control systems, distributed control systems (DCS), and complex motor control centers. Engineers also deploy it extensively in industrial automation, robotics, and material handling networks. This module ultimately serves as a reliable interface between the control logic and the physical process.
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 222 × 155 × 89 mm |
