Product Overview

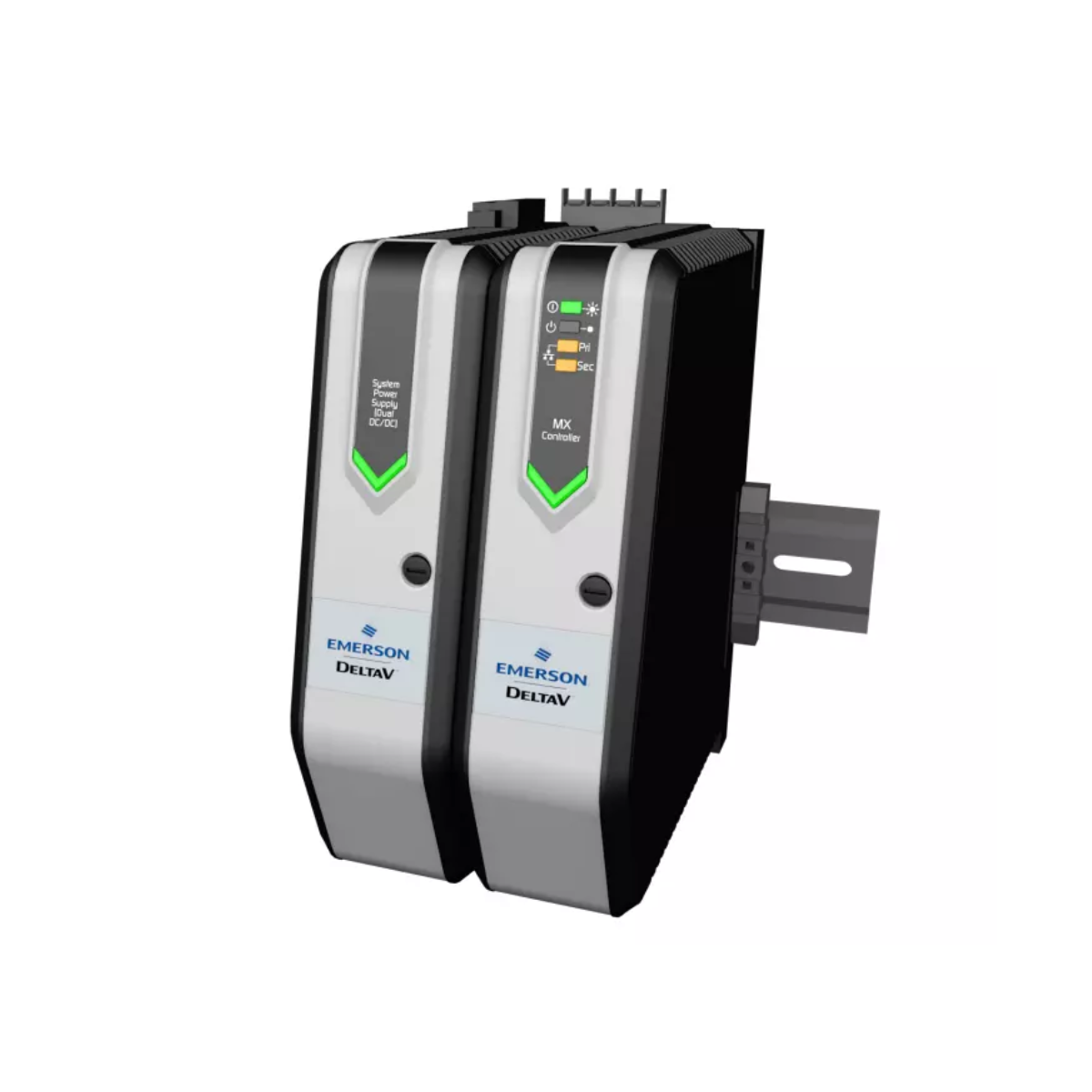

The VE3007 KJ2005X1-BA2 DeltaV MX Controller provides robust communication and control between field devices and the control network.
It doubles the control capacity of the MD Plus Controller while remaining compatible with legacy DeltaV™ systems.
The MX Controller is designed for high-capacity applications and supports 1:1 redundancy for improved system availability.
Key Features
- High Capacity – 2× control capacity vs. MQ Controller
- Easy Upgrades – Drop-in replacement for MQ Controllers, no reconfiguration needed
- Redundant Architecture – 1:1 redundancy, online upgrades supported
- Control Capabilities – Executes continuous control, SFCs, advanced control, data acquisition
- Flexible Mounting – Same footprint as MQ Controllers
Technical Specifications
Power
| Parameter | Value |
|---|---|
| Local Bus Power | +5 VDC @ 1.4 A |
| Power Requirement | Supplied by System Power Supply (via 2-wide carrier) |
| Fuse Protection | 3.0 A, non-replaceable fuses |
| Power Dissipation | 5.0 W (typical), 7.0 W (max) |
Environmental
| Parameter | Value |
|---|---|
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5%–95% non-condensing |
| Contaminants | ISA-S71.04-1985 Class G3 (with conformal coating) |
| Shock Resistance | 10 g, ½ sine wave, 11 ms |
| Vibration | 1 mm (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
LED Indicators
- Green (Power): DC power applied
- Red (Error): Error condition
- Green (Active): Operating as primary controller
- Green (Standby): Backup controller (future use)
- Yellow Flashing (CN): Valid network communication
- Flashing LEDs: Firmware upgrade or identification (ping command)
Safety & Certifications
- Hazardous Area Approvals:
- II 3G Ex ec IIC Gc
- FM19ATEX0173U / IECEx FMG 19.0019U / FM21UKEX0017U
- CL. I Div. 2 GP. A,B,C,D
- CL. I Zone 2 AEx/Ex ec IIC Gc
- FM17CA0145U / FM17US0286U
- Installation Guidelines:
- Do not connect to >60 VAC or >75 VDC
- Insert/remove only in non-hazardous areas with power energized
- No user-serviceable parts; no disassembly
- Calibration not required
Ordering Information
| Model Number | Part Number | Description |
|---|---|---|
| VE3007 | KJ2005X1-BA2 | DeltaV MX Controller |
Details
| Weight | 1.315 kg |
|---|---|
| Dimensions | 100 × 50 × 20 mm |
