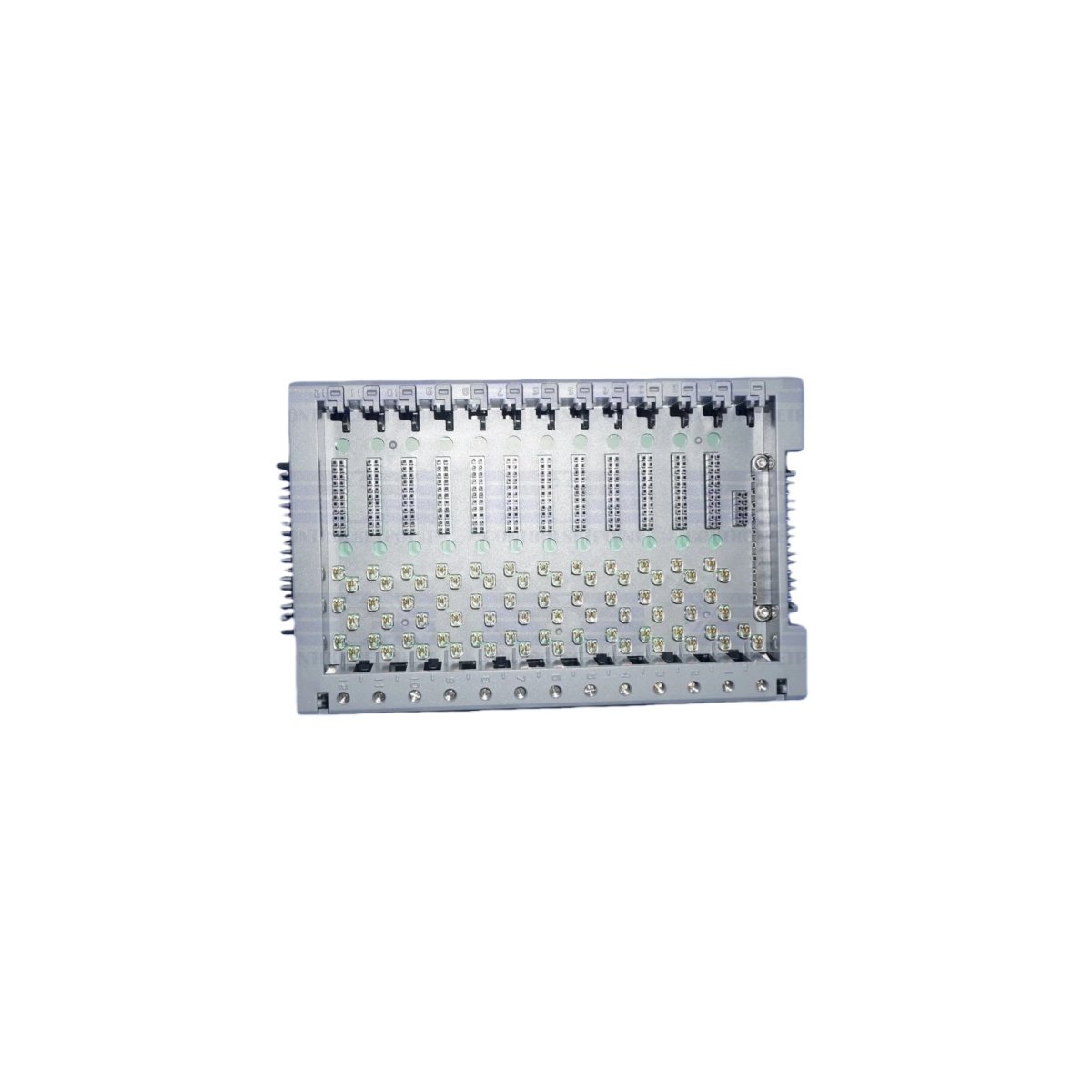

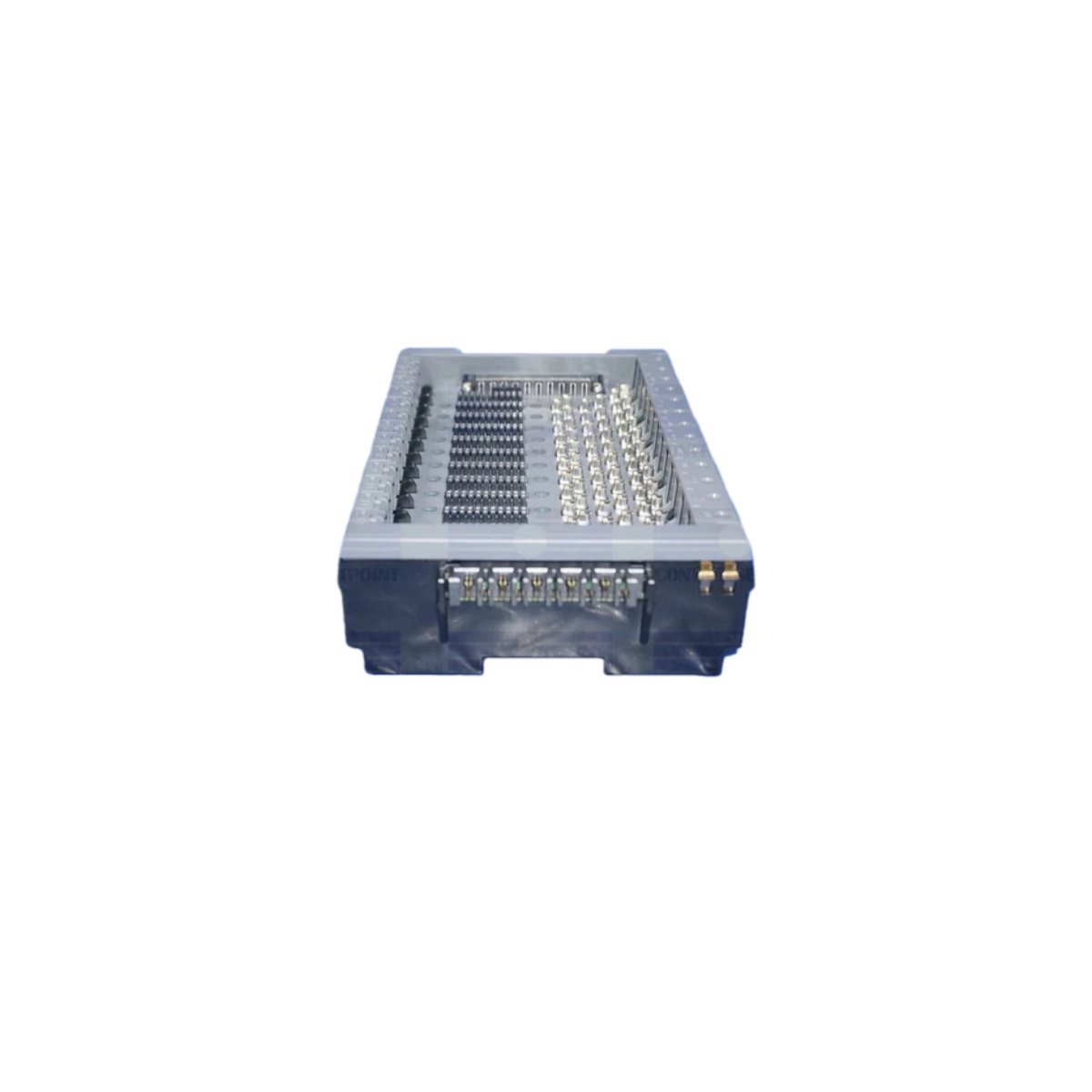

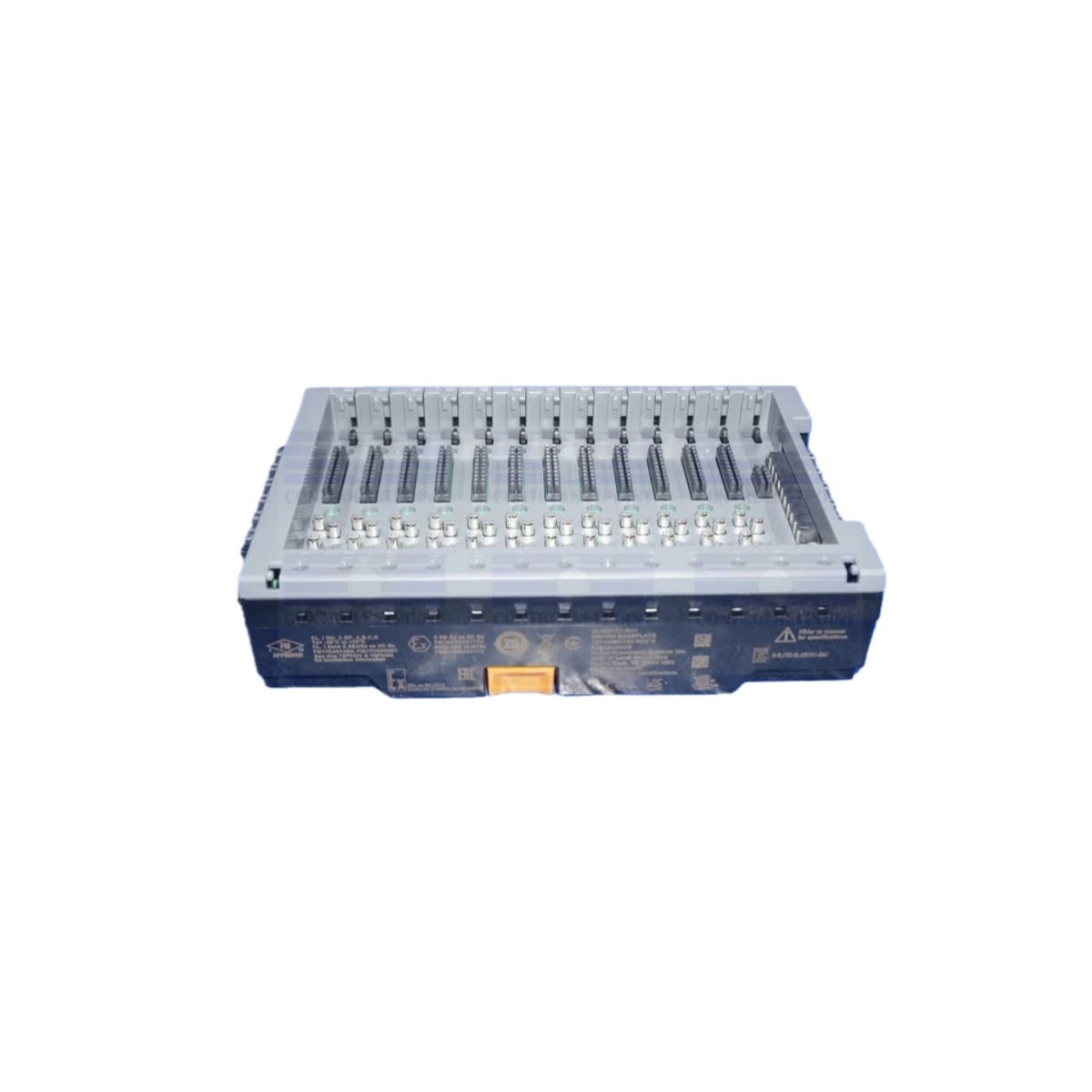

The Emerson SE4601T07 KL4201X1-BA1 provides a robust foundation for intrinsically safe I/O. This baseplate securely connects Emerson DeltaV CHARM modules within classified hazardous locations. Consequently, it ensures reliable power distribution and signal integrity for critical processes.
Engineered for Demanding Environments
Engineers designed this baseplate specifically for challenging industrial settings. It features a protective ISA-S71.04-1985 Class G3 conformal coating for defense. This coating effectively guards the unit against airborne contaminants and corrosive elements.
Robust Power Delivery & Physical Specifications
The SE4601T07 baseplate manages power for both the CHARM bus and field devices. It supplies the CHARM I/O Subsystem with stable, clean power for optimal performance. Moreover, its construction withstands significant shock and vibration during operation.
Core Technical Specifications
Below are the key physical and operational parameters for the Emerson KL4201X1-BA1 baseplate.
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | Emerson |
| Full Part Number | SE4601T07 KL4201X1-BA1 |
| Product Type | Intrinsically Safe (I.S.) CHARM Baseplate |
| Compatible System | Emerson DeltaV CHARM I/O Subsystem |
| CHARM Bus Power | +5.25VDC at 7.6A |
| Field Circuit Power | +24VDC at 8.4A |
| Shock Resistance | 10G (½ sine wave for 11ms) |
| Vibration Resistance | 1mm peak-to-peak (2-13.2Hz), 0.7G (13.2-150Hz) |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Environmental Protection | ISA-S71.04-1985 Class G3 Coating |
| Primary Application | Hazardous Area Installations |
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 100 × 60 × 20 mm |
