Overview

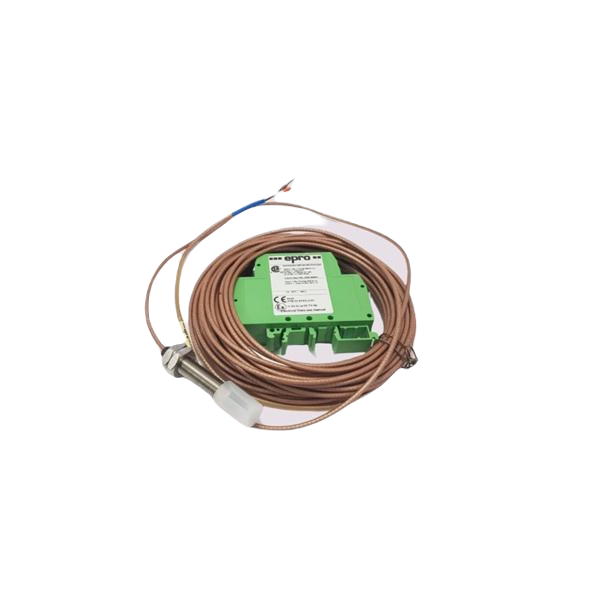

The Emerson PR6423/006-131 is an 8mm Eddy Current Sensor designed for non-contact measurement in turbomachinery. Paired with the CON041 signal converter, it monitors shaft displacement, position, eccentricity, and speed. This solution supports steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans.
PR6423 Eddy Current Sensor Key Features
- Linear Measurement Range: 2 mm (80 mils) for accurate shaft monitoring.
- Initial Air Gap: 0.5 mm (20 mils) with ISO 8 V/mm ±5% incremental scale factor.
- Target Compatibility: Standard ferromagnetic steel 42CrMo4; other materials on request.
- Operating Temperature: Sensor with 1m cable -35 to +200°C, cable & connector -35 to +150°C.
- Protection Class: IP66 (IEC 60529) ensures environmental durability.
- Construction: Sensor tip PEEK, case stainless steel, cable PTFE, connector brass nickel-plated.
- Weight: Approx. 100 g with 1m cable.
CON041 Signal Converter Key Features
- Dynamic Performance: Frequency range 0–20,000 Hz, rise time <15 µs.
- Compatibility: Works with PR6422–PR6426 sensors; extended range CON041/91x-xxx.
- Operating Temperature: -30 to 100°C, shock & vibration tolerance 5g @ 60Hz.
- Protection Class: IP20.
- Power Supply: -23V to -32V (Output -4V to -20V) or -21V to -32V (Output -2V to -18V).
- Housing & Mounting: PA 6.6, DIN rail mount, screw terminal connections (Max. 1.5mm²).
- Weight: Approx. 60 g.
Technical Specifications
PR6423 Sensor
| Parameter | Specification |
|---|---|
| Model | PR6423/006-131 |
| Tip Diameter | 8 mm |
| Case Thread | M10x1 |
| Measurement Range | 2 mm |
| DSL (Linearity Error) | ±0.025 mm |
| Air Gap | 0.5 mm |
| Cable Length | 1+7 m, open end |
| Protection | IP66 |
| Weight | 100 g |
| Operating Temp | -35 to +200°C (sensor) |
CON041 Signal Converter
| Parameter | Specification |
|---|---|
| Model | CON041 |
| Frequency Range | 0–20 kHz |
| Rise Time | <15 µs |
| Supply Voltage | -23V to -32V / -21V to -32V |
| Output Range | -4V to -20V / -2V to -18V |
| Mounting | DIN Rail |
| Connection | Screw terminal (max 1.5mm²) |
| Protection | IP20 |
| Operating Temp | -30 to +100°C |
| Weight | 60 g |
Details
| Weight | 0.16 kg |
|---|
