Overview

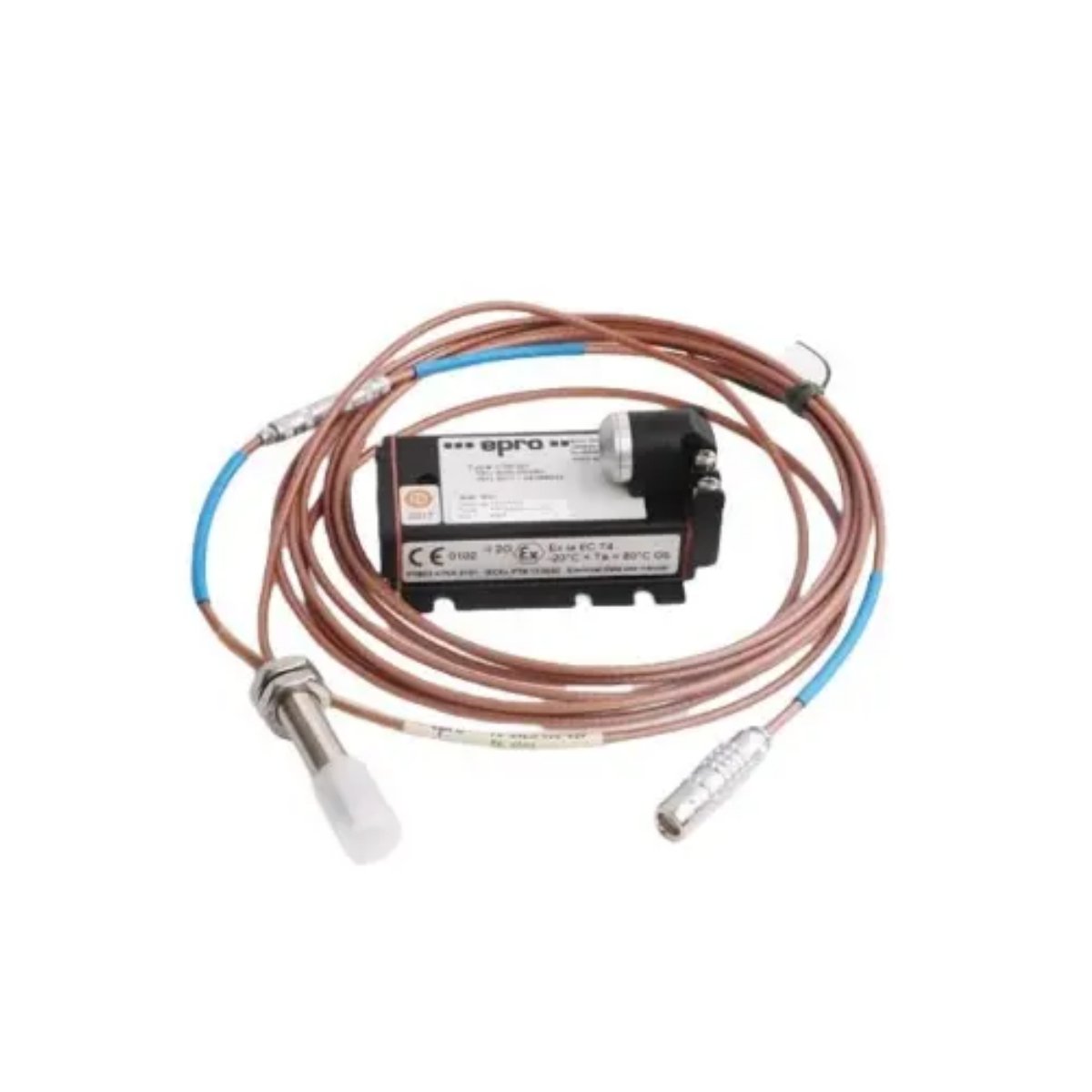

The Emerson PR6423/004-010 proximity sensor delivers accurate non-contact displacement measurement across the PR6423 series and supports high-speed rotating machinery such as turbines, compressors, and motors. It maintains measurement stability across wide temperature ranges and offers rapid response for dynamic shaft behavior, which helps engineers diagnose machinery conditions with greater precision.
Key Features
- The Emerson PR6423/004-010 achieves a 0–10 mm sensing range that suits medium-to-large shaft displacement monitoring.
- It improves diagnostic accuracy because its 1 ms response time tracks rapid changes in shaft position.
- It maintains signal consistency since the linear output range remains within ±0.1% across the calibrated stroke.
- It supports reliable operation in industrial environments due to its stainless-steel construction and optimized thermal coefficient of 0.02%/°C.
Technical Specifications
Electrical & Measurement
| Parameter | Specification |
|---|---|
| Manufacturer | EPRO / Emerson |
| Model | PR6423/004-010 / PR6423/004-010-CN |
| Product Type | Eddy Current Proximity Sensor |
| Sensing Range | 0–10 mm |
| Response Time | 1 ms |
| Calibration Frequency | 1 kHz |
| Output Signal | 0–10 V |
| Output Linearity | ±0.1% |
| Supply Voltage | 18–30 VDC |
| Temperature Coefficient | 0.02%/°C |
Mechanical & Material Data
| Parameter | Specification |
|---|---|
| Sensor Material | Stainless steel |
| Housing Type | PR6423 series cylindrical probe |
| Mounting | Standard EPRO proximity installation |
| Interface | Hard-wired cable connection |
Dimensions & Weight
- Probe Diameter: Standard PR6423 series (Ø8 mm class)
- Probe Length: Approx. 55–60 mm
- Net Weight: 100–150 g (varies by cable type)
Country of Origin
- Made in Germany (EPRO production line)
Application & Integration
The Emerson PR6423/004-010 integrates seamlessly with Emerson/EPRO monitoring systems used for shaft displacement, vibration amplitude, and thermal drift evaluation. Engineers prefer this sensor for compressor trains, turbine shafts, and critical rotating equipment because the 1 kHz calibration frequency enhances dynamic tracking in demanding conditions. The stainless-steel body and stable voltage requirements help ensure long-term reliability across both low- and high-temperature environments.
Installation Notes
Technicians install the PR6423/004-010 easily because it follows the universal PR6423 threaded mounting standard. The high linearity simplifies calibration, while the fast response time supports precise alignment during commissioning and maintenance tasks.
Details
| Weight | 0.15 kg |
|---|
