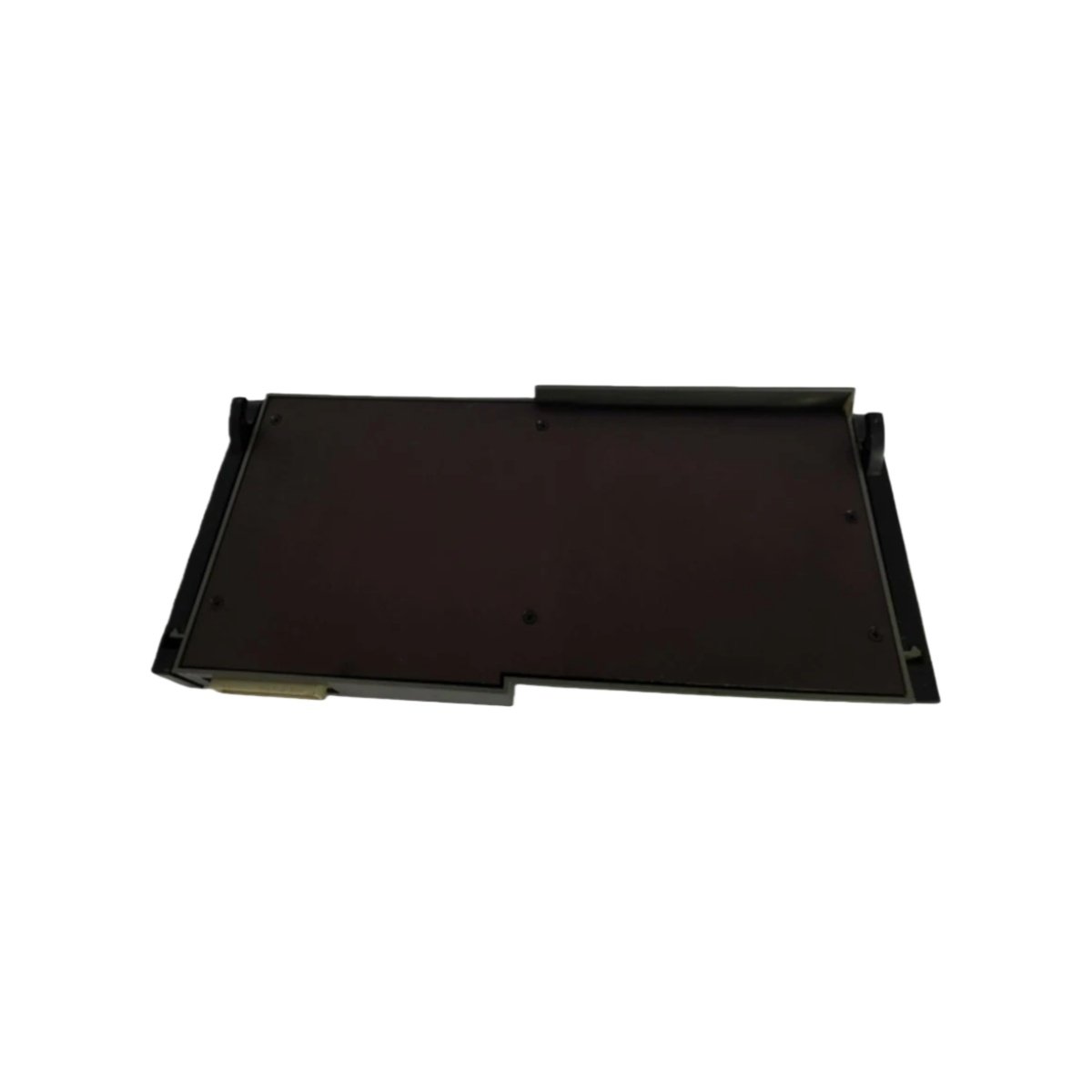

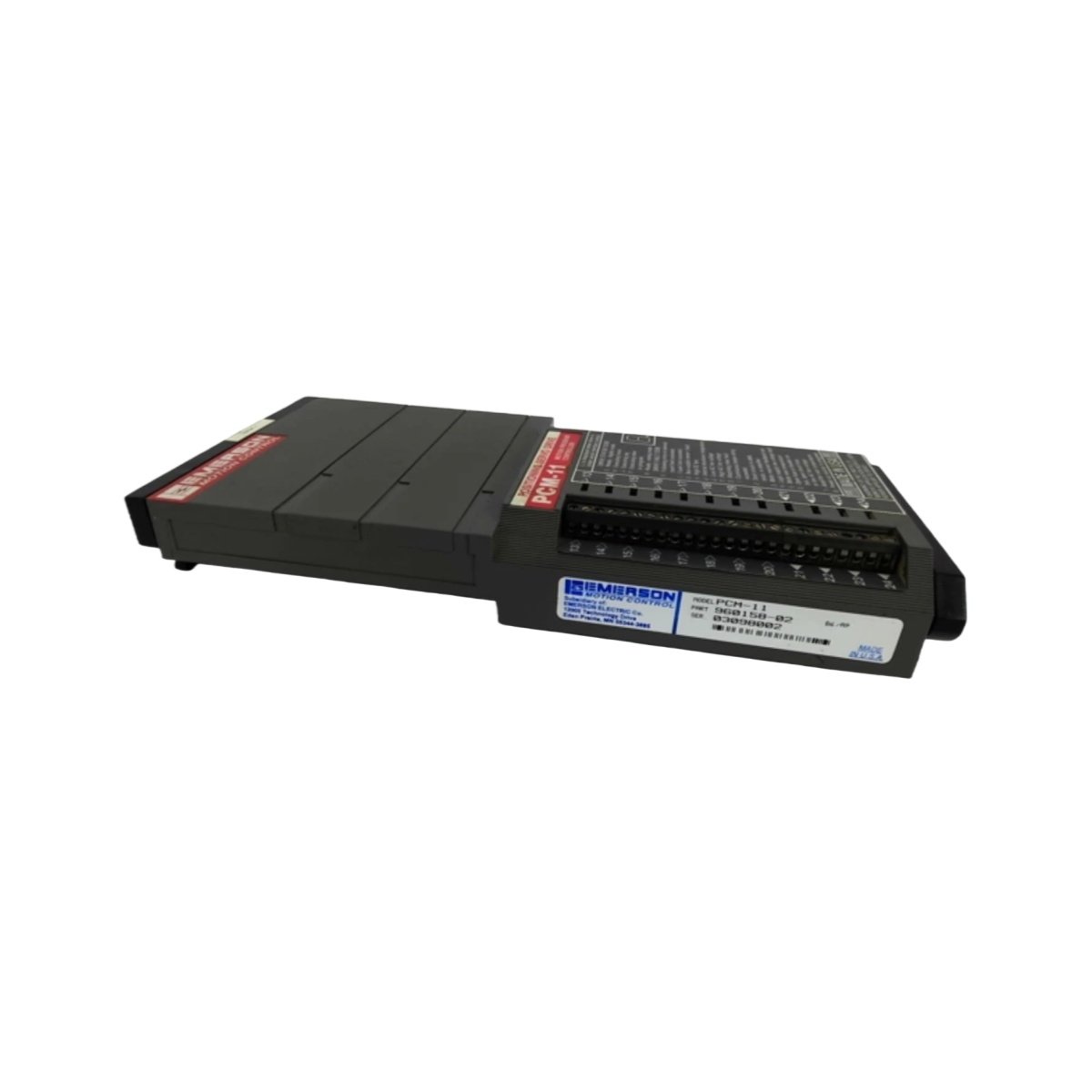

The PCM-11 Motion Program Controller directly integrates with any FX Amplifier for enhanced control. This module easily attaches to the amplifier’s front panel using two secure locking arms. Consequently, it significantly boosts the input/output capacity of your standard FX drive system.
Enhanced I/O Configuration and Electrical Isolation
This Emerson controller provides eight optically isolated input lines and four output lines. Therefore, it effectively doubles the standard I/O capability available on the base FX drive. All I/O channels support a wide input voltage range from +10.5 to +30 VDC for flexible integration.
Simple and Versatile Screw Terminal Connections
The PCM-11 features a convenient screw terminal block for all input and output wiring. Importantly, each I/O line has two associated terminals to support either current sinking or sourcing operation. The outputs can reliably handle up to 200 mA per line, but you must ensure current stays within this limit.
Primary Electrical Connection Interface
All other electrical connections, except for the I/O terminals, utilize a rear 48-pin connector. This design ensures a clean and organized installation alongside the host FX Amplifier.
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model/Series | PCM-11 for FX Amplifiers |
| Input Voltage Range | +10.5 to +30 VDC |
| Input Lines (Optically Isolated) | 8 lines |
| Output Lines (Optically Isolated) | 4 lines |
| Max Output Current per Line | 200 mA (sink or source) |
| Connection Type | Screw Terminal Block |
| Terminal Functions | Supports Current Sinking & Sourcing |
| Main Electrical Interface | 48-pin connector |
| Mechanical Attachment | Two front-panel locking arms |
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 100 × 60 × 20 mm |
