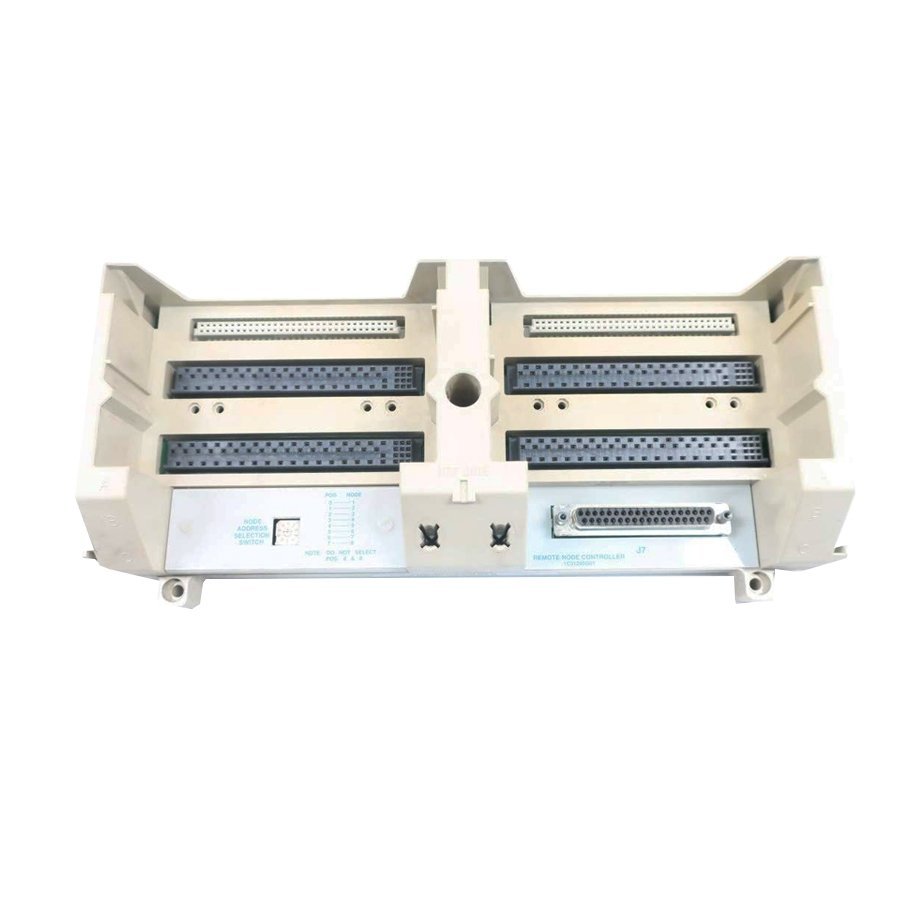

The Emerson 1C31205G01 serves as a foundation for integrating Remote Node Modules (RNMs) within the Ovation Distributed Control System. It enables efficient management of remote inputs and outputs while maintaining high communication reliability.
Key Features
- Supports up to two Remote Node Modules for flexible remote I/O management.
- Directly connects to two primary I/O branches for seamless data transfer.
- Provides a D-connector to extend connectivity to up to six additional I/O branches.
- Features a rotary switch for precise node addressing and system integration.
- Interfaces with the Remote Node Transition Panel to facilitate smooth communication.
Technical Specifications
| Feature | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | 1C31205G01 |
| Series | Ovation Remote Node Controller Base |
| Supported Remote Node Modules | 2 RNMs |
| Primary I/O Branches | 2 |
| Additional I/O Branches via D-Connector | 6 |
| Node Addressing | Rotary switch |
| Interface | Remote Node Transition Panel |
| Application | Ovation Distributed Control System integration |
Benefits and Applications
The 1C31205G01 base ensures reliable and scalable connectivity for Ovation DCS installations. It simplifies system configuration and improves operational efficiency.
- Accommodates multiple RNMs to support distributed inputs and outputs.
- Provides precise node addressing for accurate system mapping.
- Extends I/O connectivity for flexible plant configurations.
- Enhances communication with Remote Node Transition Panels.
Details
| Weight | 1.2 kg |
|---|
