Product Overview

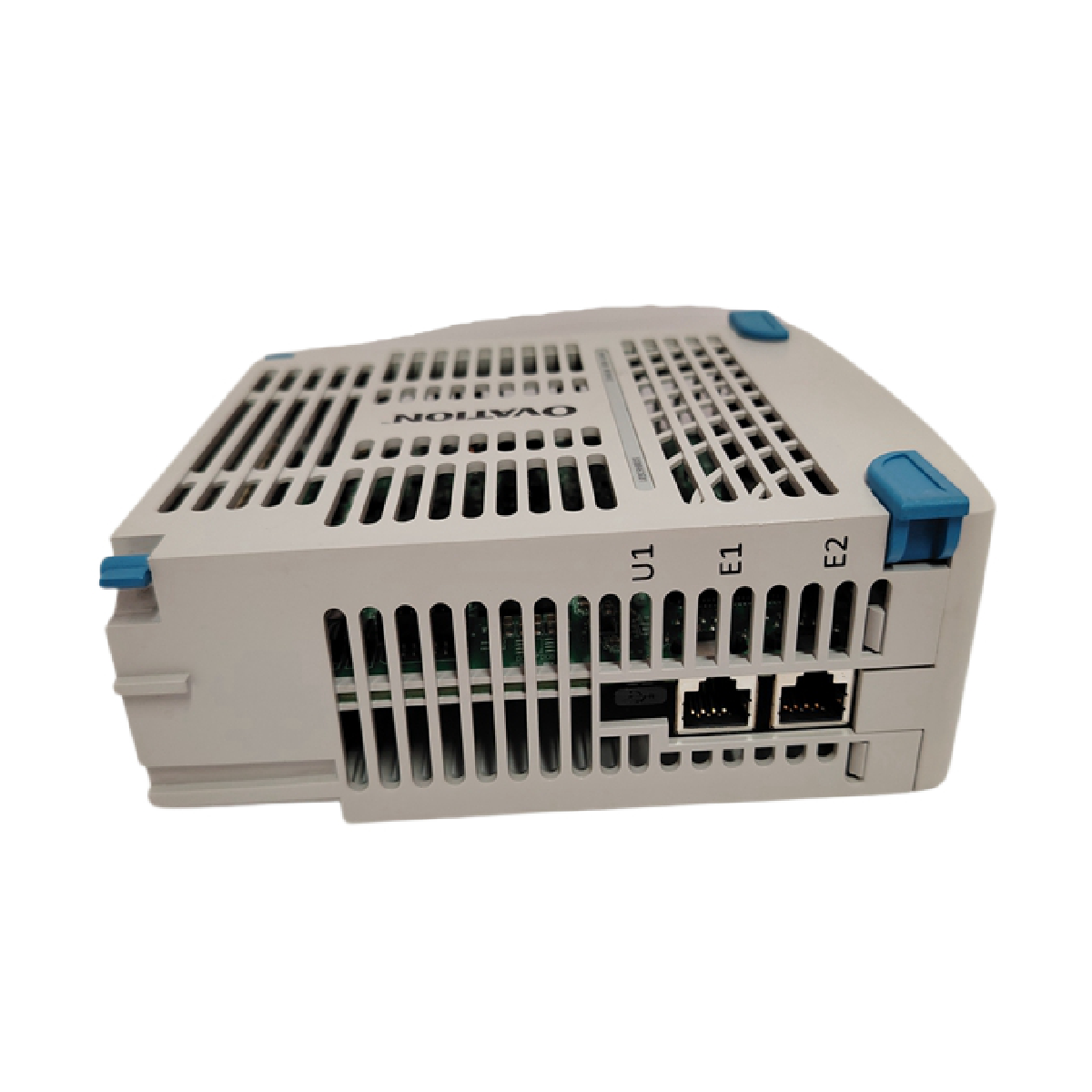

The Emerson Ovation 5X00790G01 OCC100 Controller is part of the Ovation™ Compact Controller family.
It provides secure and reliable control for remote plants and industrial processes.
The modular I/O design allows flexible installation in confined spaces with low power consumption.
Key Features
- Supports simplex and redundant configurations with automatic failover
- Compatible with all Ovation I/O modules, including specialty modules
- Embedded drivers for third-party device integration without extra hardware
- Operating temperature: -20°C to +70°C
- Advanced control: PID, Boolean logic, and data acquisition
- Supports both local and wide area network communication
Technical Specifications
Controller Module
| Attribute | Details |
|---|---|
| Processor | Xilinx Zynq SoC, 667 MHz Cortex A9 dual-core |
| Memory | 256 MB DDR3 SDRAM, 1 GB USB flash drive |
| Form Factor | Hot-swappable, integrated temperature monitoring |
I/O Base Configurations
| Type | Details |
|---|---|
| Simplex Base | 8-pin terminal block, 1×8-module I/O branch, DIN-rail mountable |
| Redundant Base | Single-connection redundancy, 20-pin terminal block, 3×8-module I/O branches, hot-swappable, DIN-rail mountable with adapter |
I/O Capacity (Tiered Licensing)
| Tier | I/O Points |
|---|---|
| 1 | 0-25 |
| 2 | 26-50 |
| 3 | 51-100 |
| 4 | 101-250 |
| 5 | Unlimited |
Power Requirements
| Configuration | Details |
|---|---|
| Simplex Module Power | 24V DC, 5.8 W typical, 6.4 W max |
| Power Supply Assemblies | Supports simplex, redundant, and auxiliary setups |
Communication Protocols
| Ports & Protocols | Details |
|---|---|
| Ethernet | 2×10/100/1000 Base T, RJ45 connectors |
| Supported Protocols | Modbus, DNP3, GE Mark IV & GSM, Siemens S7, OPC UA, IEC 60870-5-101/103/104, BACnet |
Certifications
- IEC61131-2 compliant
- CE Mark
Applications
- Wellhead control
- Advanced process control
- Emergency shutdown systems
- Machinery health monitoring
- Excitation control for power generation
Ordering Information
| Attribute | Details |
|---|---|
| Part Number | 5X00790G01 |
| Manufacturer | Emerson |
| Product Type | Ovation Compact Controller |
| Availability | In stock |
Details
| Weight | 1.315 kg |
|---|---|
| Dimensions | 100 × 50 × 20 mm |
