Overview

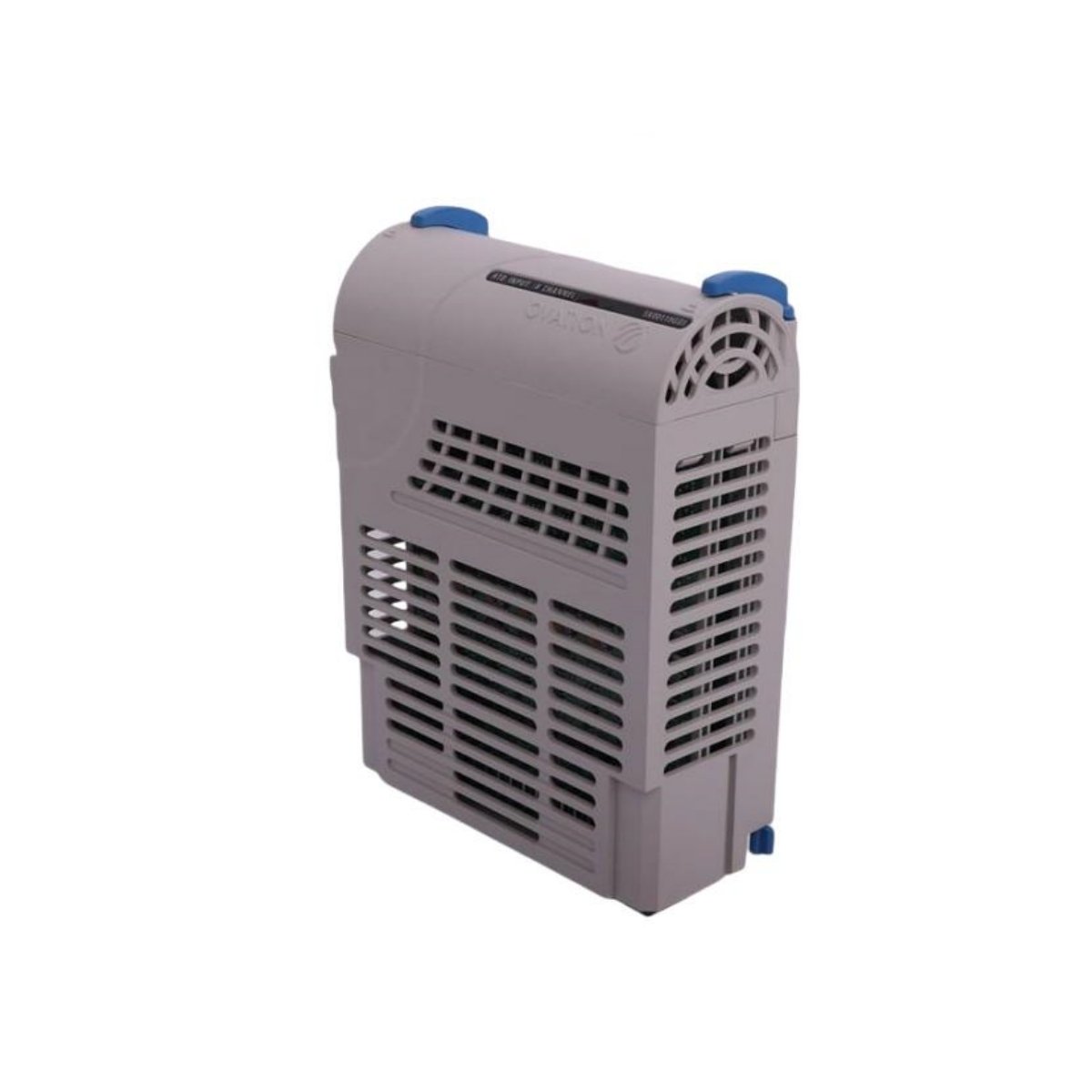

The Emerson Ovation 5X00273G01 Switching Input/Output Module provides reliable digital I/O capabilities for industrial automation applications. It enables accurate acquisition of switching signals and precise control of output states.
Key Features
- Digital I/O Channels: Collects switching signals from field devices and controls digital outputs efficiently.
- RS-485 Communication: Supports fast data transmission for monitoring and remote control of switch states.
- Protocol Flexibility: Compatible with standard Modbus or custom protocols for seamless integration.
- Protection Mechanisms: Includes reverse connection and overvoltage protection to prevent system damage.
- Compact and Mountable: Designed for DIN-rail installation in industrial control panels.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Emerson Ovation |
| Model | 5X00273G01 |
| Module Type | Switching Input/Output Module |
| Communication Interface | RS-485 |
| Supported Protocols | Modbus, Custom Protocols |
| Input Channels | Digital switching inputs (number depends on system configuration) |
| Output Channels | Digital outputs (number depends on system configuration) |
| Protection | Reverse polarity, overvoltage |
| Power Supply | 24 VDC |
| Power Consumption | 3.5 W max |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (W x H x D) | 12 × 9 × 6 cm |
| Weight | 0.35 kg |
| Mounting | DIN-rail mountable |
| Certifications | CE, UL |
Applications and Advantages
The 5X00273G01 module is ideal for process control, power plants, and industrial automation systems. Its RS-485 interface allows real-time remote monitoring and control, while the robust protection features ensure reliable operation in harsh environments. Engineers can easily integrate it into Ovation Control Systems or third-party automation platforms.
Origin, Dimensions & Weight
- Origin: United States
- Dimensions: 12 × 9 × 6 cm
- Weight: 0.35 kg
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 120 × 90 × 60 mm |
