Overview

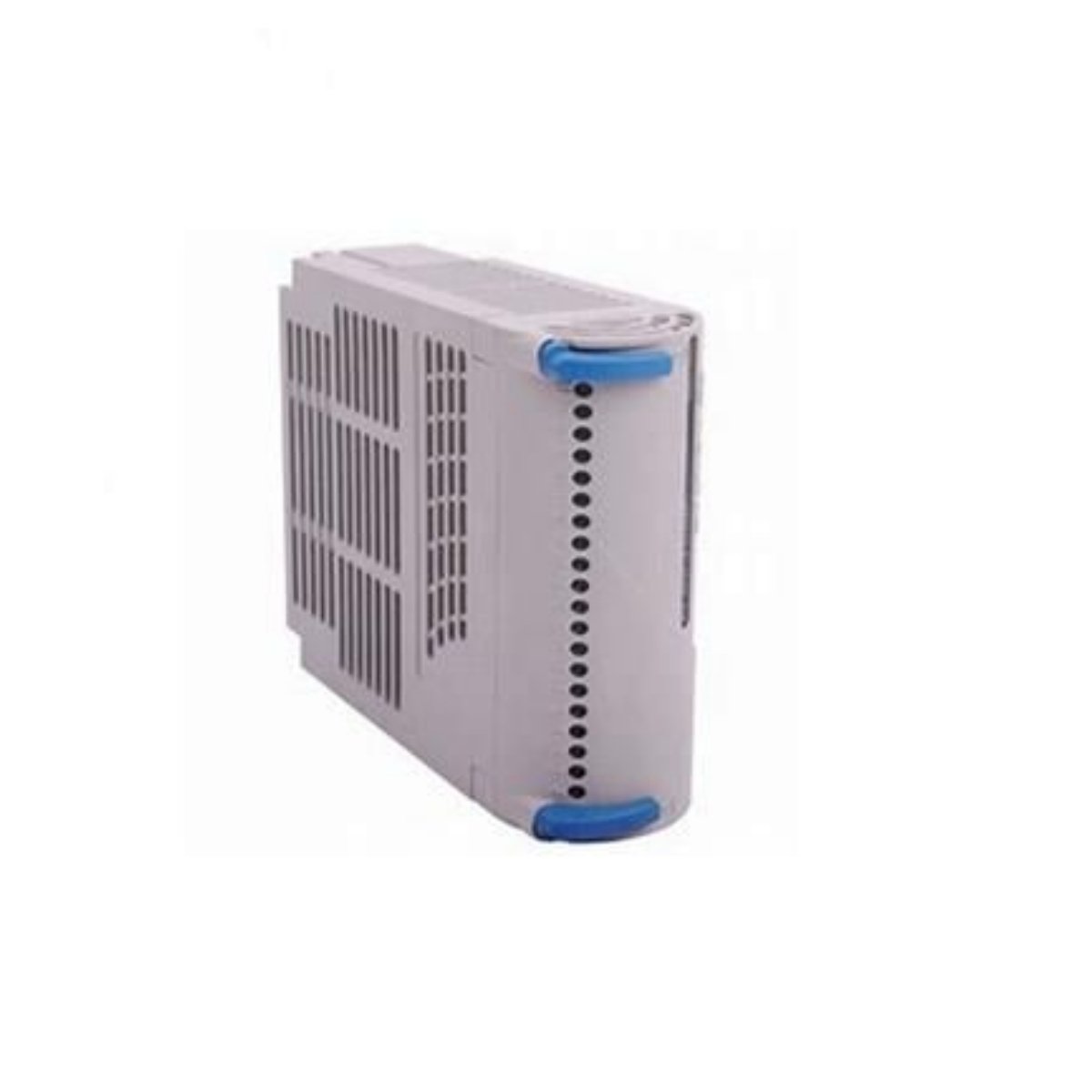

The Emerson Ovation 5X00270G01 Redundant Digital Output Module provides reliable high-side 24 VDC outputs for advanced industrial automation systems. It integrates seamlessly with the Ovation Control System, delivering precise and independent control for multiple digital channels. This module ensures robust operation in harsh industrial environments, reducing downtime and improving overall system reliability. Its compact design allows for flexible installation in crowded control cabinets while maintaining optimal performance.
Key Features
- High-Side Output Design: Maintains stable 24 VDC operation across all channels for consistent industrial control.
- Four Isolated Digital Channels: Each channel functions independently, preventing signal interference and enhancing system safety.
- Built-in Diagnostics: LED indicators provide real-time module status and simplify troubleshooting.
- Compact Form Factor: Small dimensions allow installation in tight control panels without compromising accessibility.
- Enhanced Reliability: Redundant output design reduces failure risk and improves operational continuity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Emerson Ovation |
| Model | 5X00270G01 |
| Module Type | Redundant Digital Output Module |
| Input Voltage AC | 24–264 VAC |
| Input Voltage DC | 8–32 VDC |
| Output Voltage | 24 VDC high-side |
| Output Current | 20 mA per channel |
| Number of Channels | 4 isolated digital outputs |
| Diagnostic | LED status indicator |
| Dimensions | 10.9 × 5.3 × 2.0 cm |
| Weight | 0.14 kg |
| Compatibility | Ovation Control System |
Applications and Advantages
The 5X00270G01 module suits multiple industrial automation scenarios, including process control, factory automation, and distributed control systems (DCS). Its isolated channels prevent cross-talk between outputs, making it ideal for safety-critical applications. Moreover, its diagnostic features allow maintenance teams to quickly identify faults, reducing downtime. Industries such as power generation, water treatment, and manufacturing benefit from its reliable performance and compact footprint. By integrating this module into Ovation systems, operators can achieve precise digital control, improve process efficiency, and ensure uninterrupted operations even under challenging conditions.
Dimensions & Origin
- Origin: United States
- Dimensions: 10.9 × 5.3 × 2.0 cm
- Weight: 0.14 kg
Details
| Weight | 0.14 kg |
|---|---|
| Dimensions | 109.2 × 53.3 × 20.3 mm |
