Overview

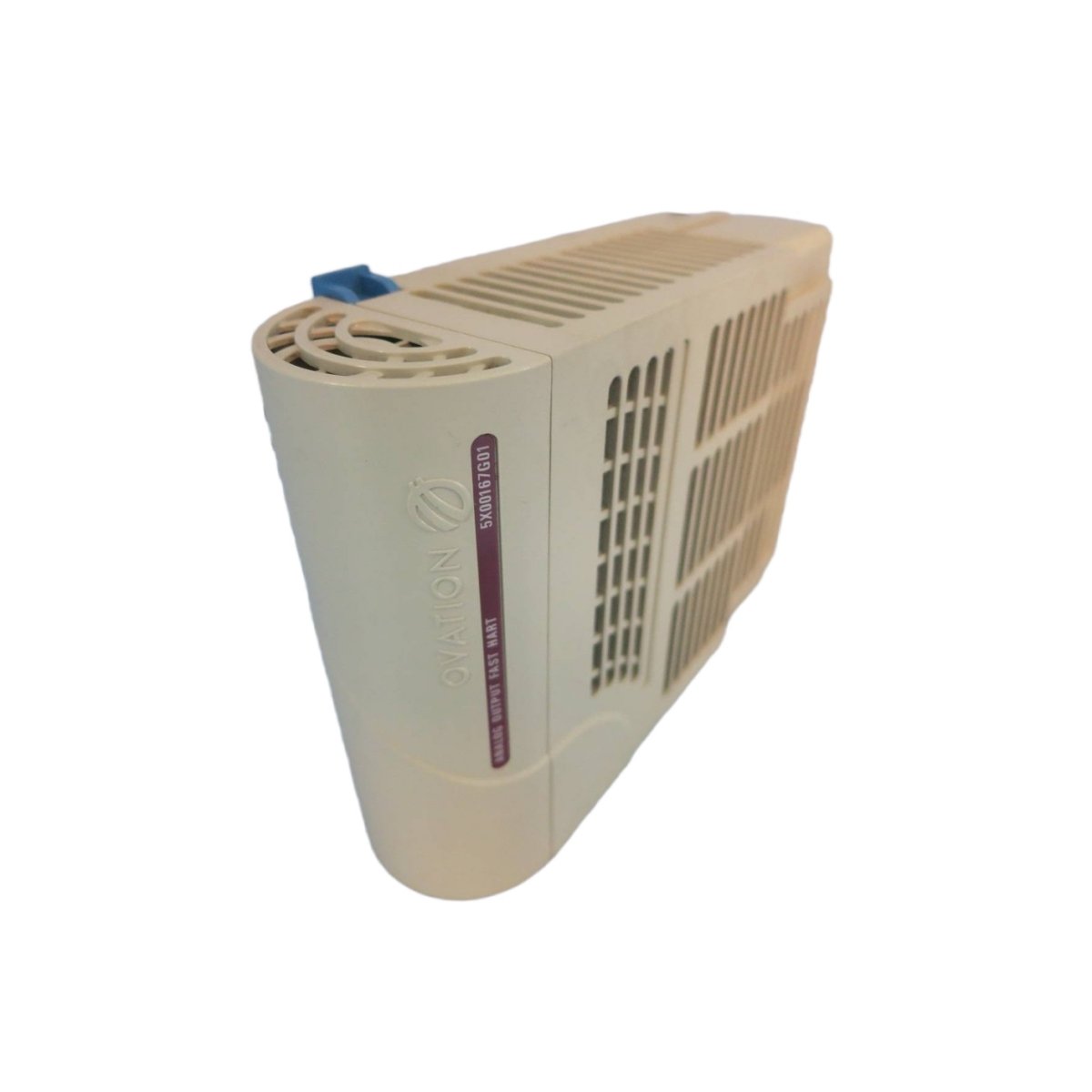

The Emerson Ovation 5X00167G01 Analog Output Module delivers high-precision analog signals for industrial automation applications. It integrates seamlessly with Ovation Control Systems and supports HART communication for remote diagnostics and configuration.
Key Features
- Four Analog Output Channels: Supports independent 4-20mA current outputs with high reliability.
- High Accuracy: Maintains ±0.1% of full-scale accuracy for consistent process control.
- 16-Bit Resolution: Ensures precise signal representation for critical control tasks.
- Robust Isolation: Provides ≥500V separation between channels and power supply to protect connected devices.
- Low Power Consumption: Operates efficiently at ≤4W while supporting industrial temperature ranges.
- HART Communication Support: Enables device configuration, monitoring, and diagnostics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Emerson Ovation |
| Model | 5X00167G01 |
| Module Type | HART Analog Output Module |
| Number of Channels | 4 |
| Output Range | 4-20 mA current |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Output Impedance | ≤500 Ω |
| HART Compatibility | Supported |
| Isolation | ≥500 V between channels and power supply |
| Power Supply | 24 VDC ±10% |
| Power Consumption | ≤4 W |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions | 2.25 × 9.9 × 11.45 cm |
| Weight | 0.4 kg (approximate) |
| Approvals | CE, UL, RoHS |
| Mounting | DIN-rail mountable |
Applications and Advantages
The 5X00167G01 module is ideal for process control, power generation, and chemical plant applications. Its HART support allows engineers to configure and monitor output channels remotely, improving system efficiency and reliability. Additionally, its wide operating temperature range and robust isolation make it suitable for harsh industrial environments.
Origin, Dimensions & Weight
- Origin: United States
- Dimensions: 2.25 × 9.9 × 11.45 cm
- Weight: 0.4 kg
Details
| Weight | 0.4 kg |
|---|---|
| Dimensions | 225 × 99 × 114.5 mm |
