Overview

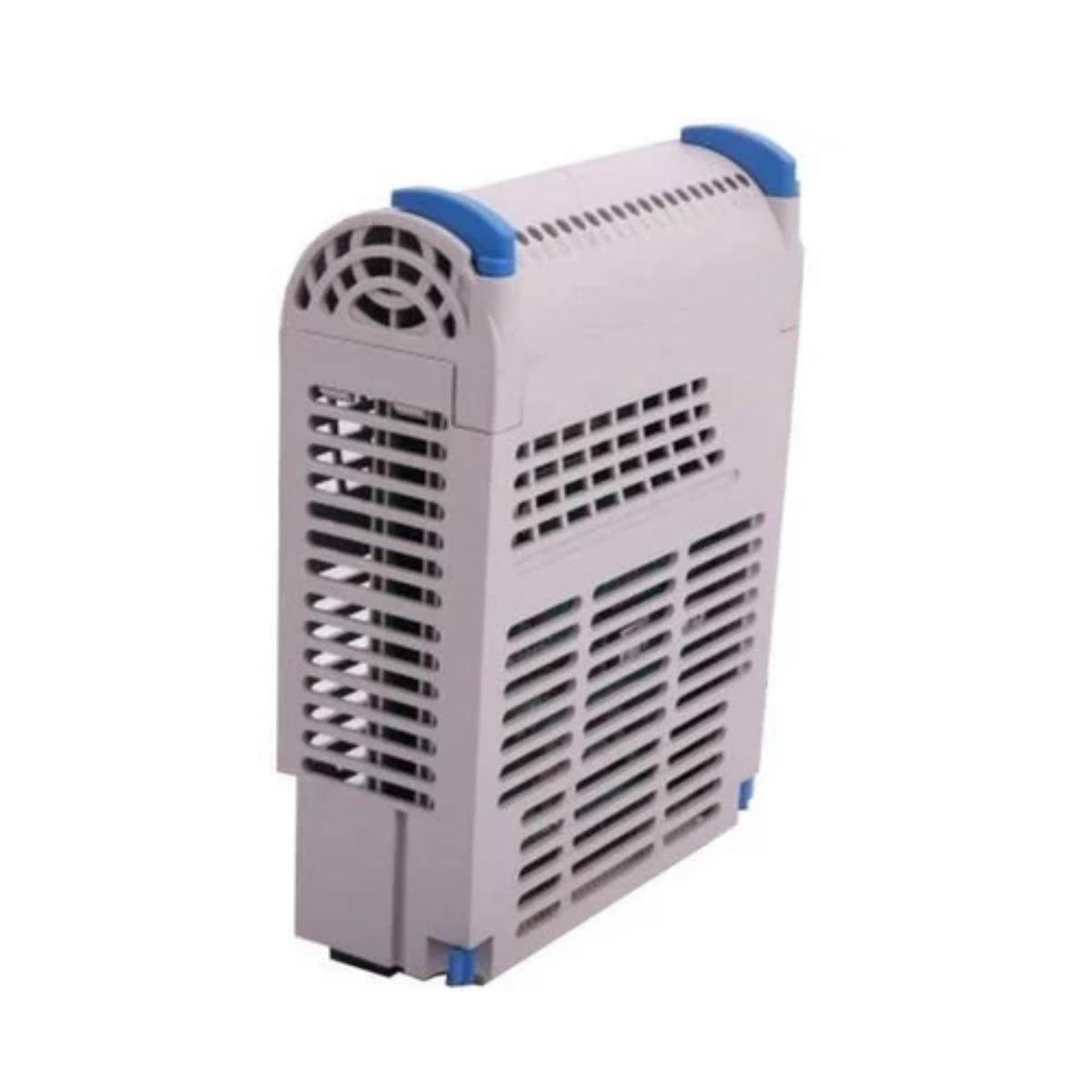

The Emerson Ovation 5X00106G02 Analog Input Module provides high-precision monitoring for industrial automation and distributed control systems. It supports eight independent analog inputs, enabling operators to acquire multiple process signals simultaneously. This module integrates seamlessly with Ovation Control Systems, offering reliable performance and efficient system operation. Its robust design ensures accurate data acquisition under demanding industrial conditions.
Key Features
- Eight Independent Input Channels: Allows simultaneous monitoring of multiple HART-compatible or standard analog devices.
- Wide Input Range Support: Accepts 4–20 mA, 0–10V, ±10V, ±5V, and 0–5V signals for flexible application.
- High Resolution and Accuracy: Delivers 16-bit resolution with ±0.1% full-scale accuracy for precise measurements.
- Fast Sampling Rate: Supports up to 1 kHz per channel to capture rapid process signal variations.
- Strong Electrical Isolation: Provides 1500V rms channel-to-channel and 2500V rms channel-to-system protection.
- Reliable Power Operation: Works with 24 VDC (18–32 VDC) and consumes a maximum of 3.6 W.
- Wide Operating Temperature: Functions between 0°C and 60°C for stable industrial operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Emerson Ovation |
| Model | 5X00106G02 |
| Module Type | 8-Channel Analog Input Module |
| Input Channels | 8 analog inputs |
| Input Ranges | 4–20 mA, 0–10V, ±10V, ±5V, 0–5V |
| Resolution | 16-bit |
| Sampling Rate | Up to 1 kHz per channel |
| Accuracy | ±0.1% of full scale |
| Input Impedance | >1MΩ (voltage), 250Ω (current) |
| Isolation | 1500V rms channel-to-channel, 2500V rms channel-to-system |
| Power Supply | 24 VDC (18–32 VDC) |
| Power Consumption | 3.6 W max |
| Operating Temperature | 0°C to 60°C |
| Dimensions (W × H × D) | 4.5 × 10 × 12 cm |
| Compatibility | Ovation Control System |
Applications and Advantages
The 5X00106G02 module suits industrial automation, process control, and factory automation applications. Its eight-channel configuration allows precise monitoring of multiple analog signals. Fast sampling ensures operators capture transient events quickly, while high resolution and accuracy guarantee reliable data for critical processes. Electrical isolation prevents interference, protecting connected systems from voltage surges. This module integrates efficiently with Ovation Control Systems, enhancing process control and operational efficiency in industries such as power generation, water treatment, and chemical processing.
Dimensions & Origin
- Origin: United States
- Dimensions: 4.5 × 10 × 12 cm
- Weight: 0.15 kg
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 45 × 100 × 120 mm |
