Overview

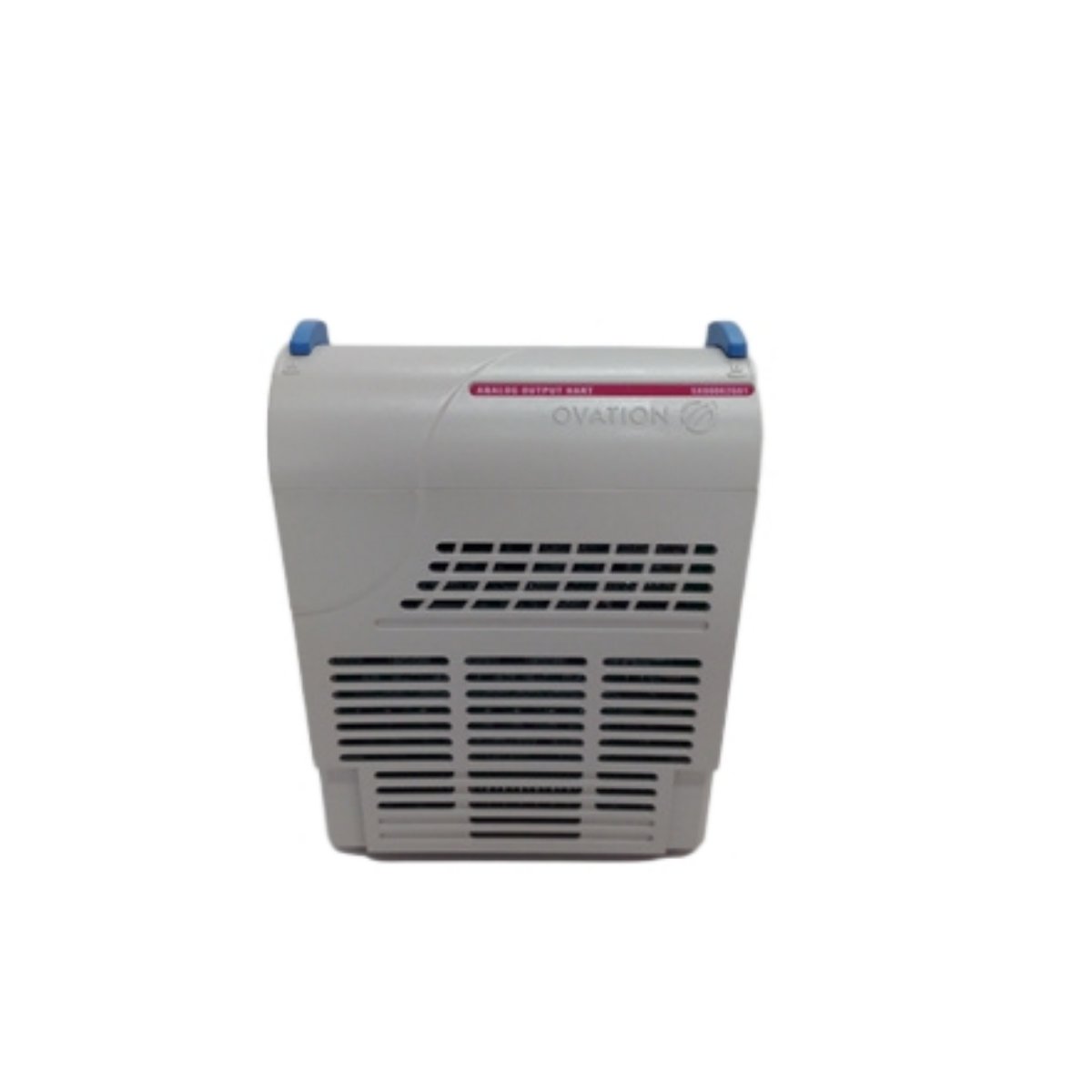

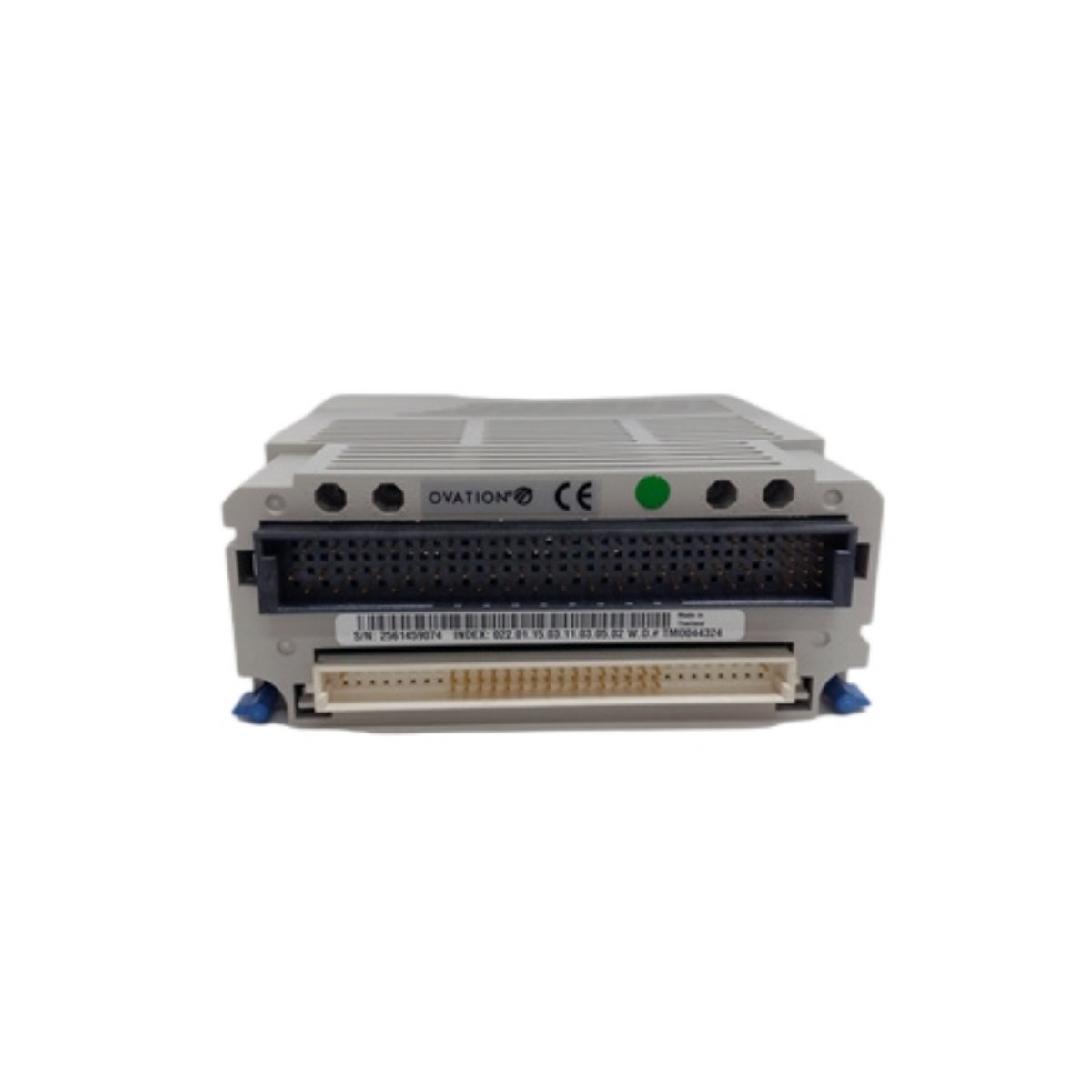

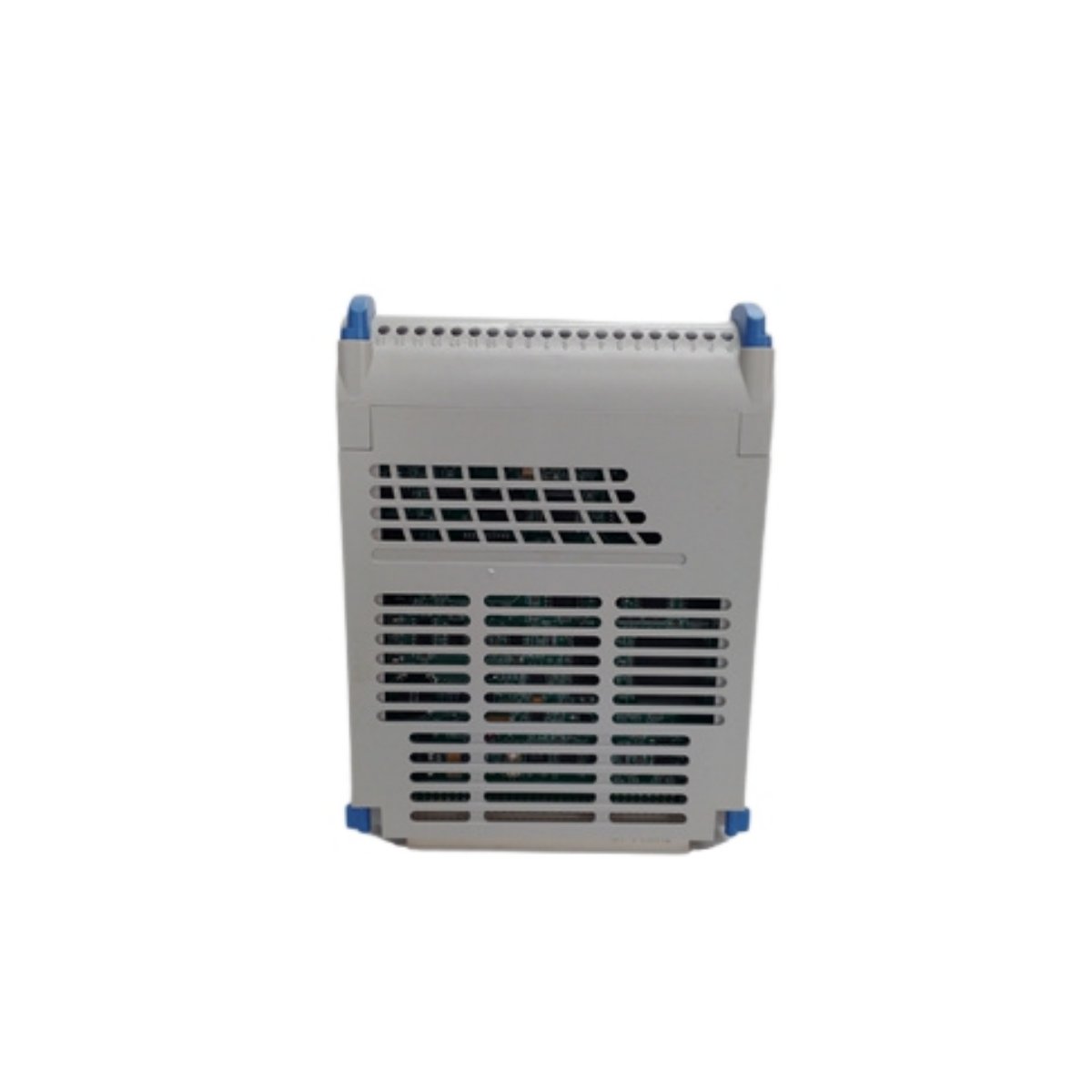

The Emerson Ovation 5X00062G01 Analog Output Module delivers precise control for eight HART-compliant devices using a standard 4-20mA signal. It simultaneously transmits digital information through a low-level frequency, shift-keyed sine wave superimposed on the analog signal, maintaining seamless communication without interfering with loop performance. This module ensures direct integration with the Ovation control system, enabling efficient device management and system diagnostics.
Key Features
- Eight Multiplexed Output Channels: Each channel operates independently within a 4-20mA range.
- Shared Auxiliary Power Supply: Common +24 VDC power and ground for all channels.
- High-Speed Microcontroller: 16 MHz controller manages A/D and D/A conversion and HART communication.
- 14-Bit A/D Resolution: High-precision analog-to-digital conversion across eight channels.
- Signal Superposition: Embedded switches overlay HART signals onto 4-20mA outputs without interference.
- Direct Ovation Integration: Connects intelligent field devices directly to the Ovation system.
- AMS Suite Compatibility: Supports Device Manager for maintenance, monitoring, and information collection.
- Configurable Timeout: Software-controlled I/O bus communication period.
- Electrical Isolation: 1000 VDC/RMS isolation between field devices and logic circuitry.
- EEPROM Storage: Module stores electronic ID and configuration data on board.
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Channels | 8 |
| Channel Update Rate | 24 mS per channel |
| Output Range | 4–20 mA |
| D/A Resolution | 14-bit |
| Accuracy Over Temperature | 0.25% of span |
| User Loop Voltage | Powered via auxiliary +24 VDC supply |
| Diagnostics | Open loop detection; 8 Pass/Fail bits in data register 0xC |
| Dielectric Isolation | Channel to Logic: 1000 VAC/VDC for 1 min; Channel to Channel: None |
| Output Loading | 4–20 mA into 230–700 Ω |
| Output Compliance | 20 mA @ 21.6 VDC into 700 Ω |
| Operating Temperature | 0° to 60° C |
| Humidity | 0%–95% non-condensing |
| Module Power | Main: 24 VDC, 1.2 W typical, 2.5 W max; Aux: 24 VDC, 6 W typical, 7.2 W max |
Dimensions & Weight
- Dimensions: 160 mm × 100 mm × 60 mm
- Weight: 0.9 kg
- Origin: United States
Details
| Weight | 0.9 kg |
|---|---|
| Dimensions | 160 × 100 × 60 mm |
