Overview

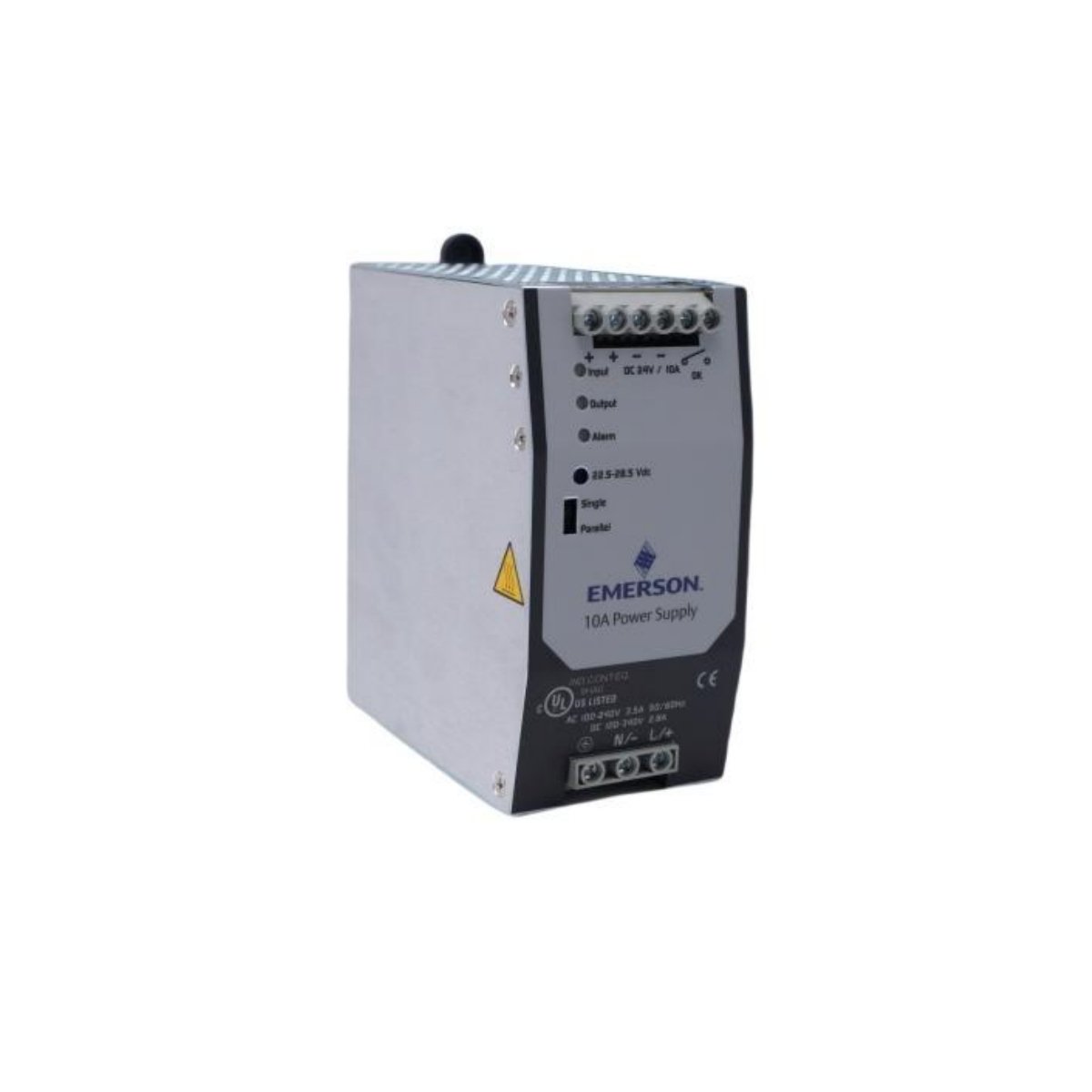

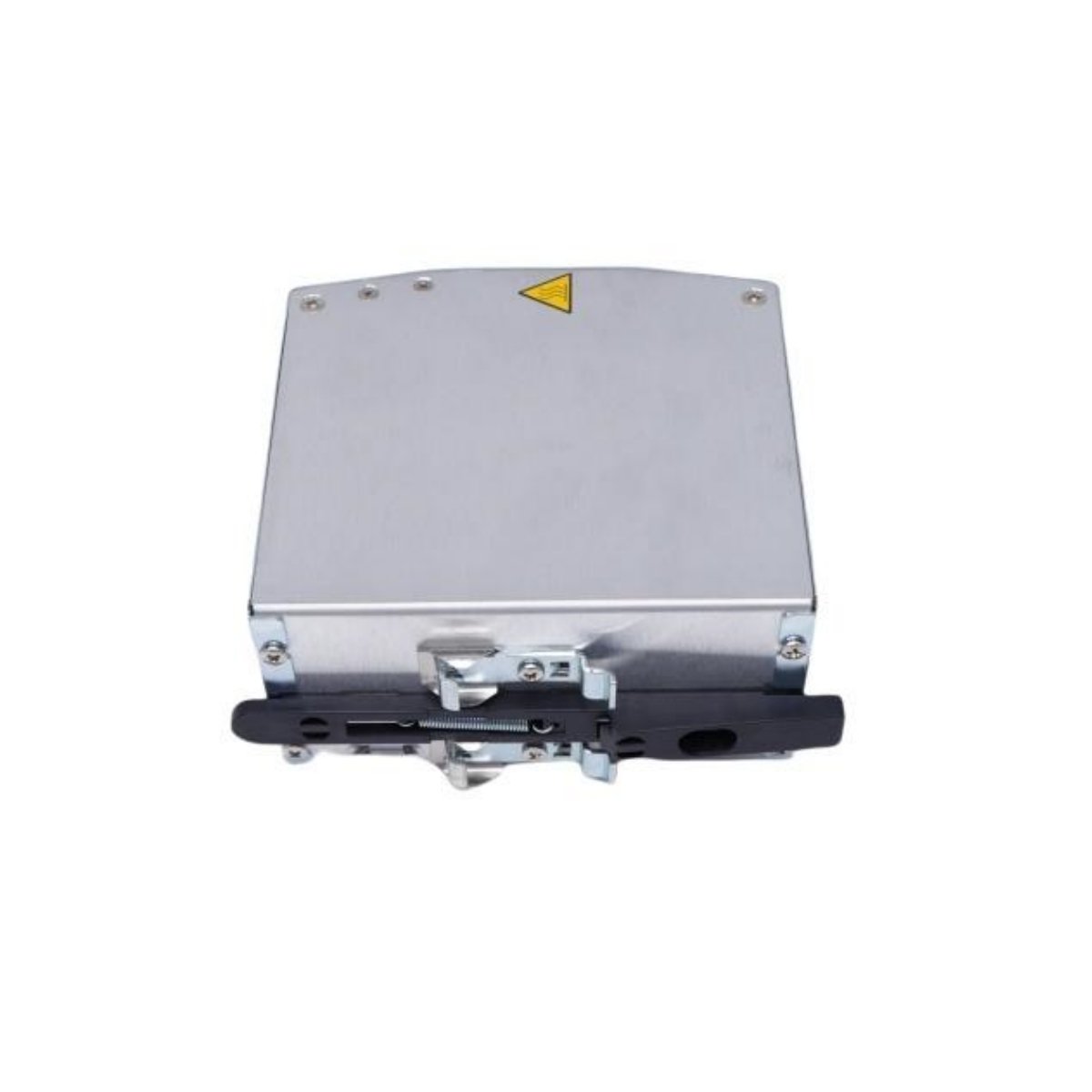

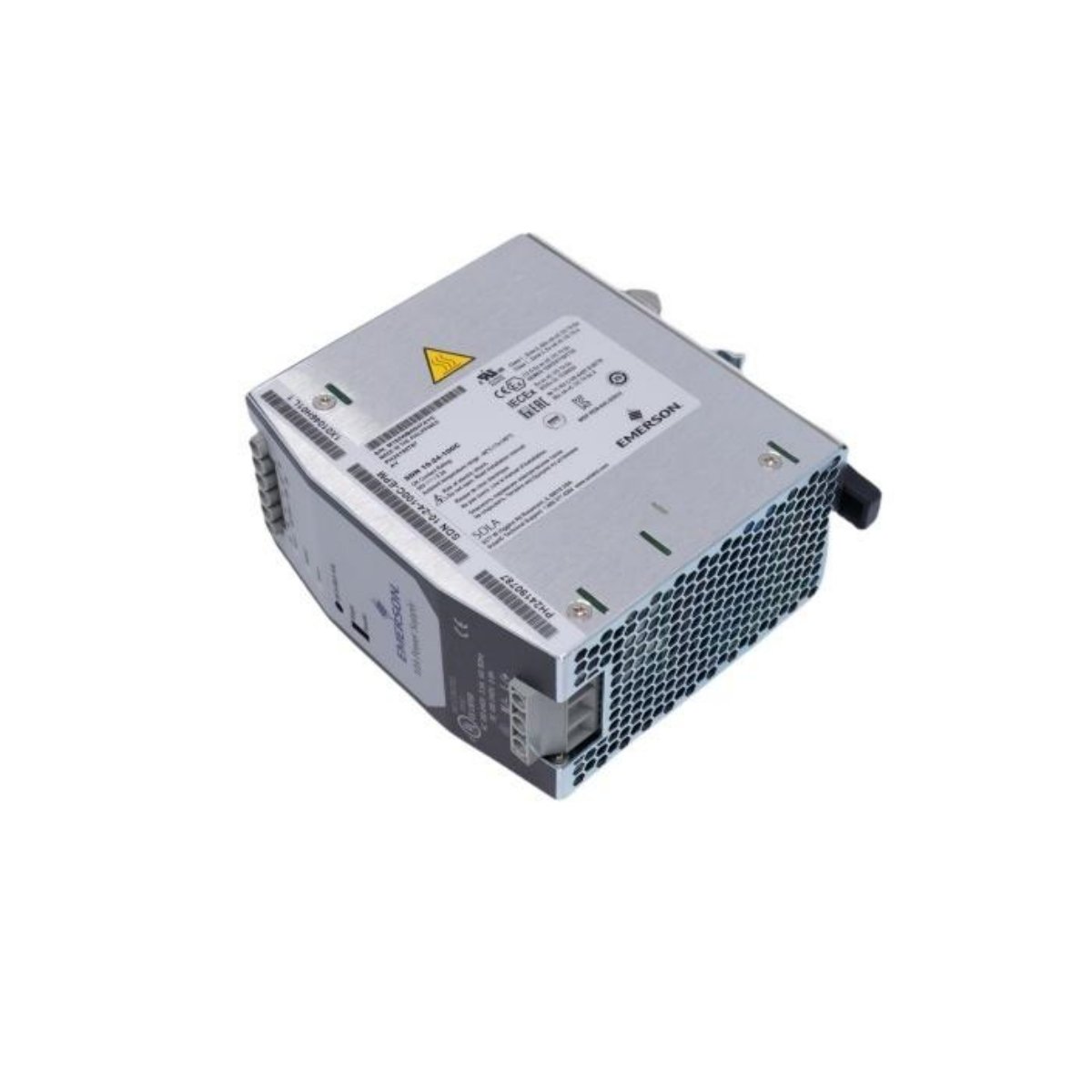

The Emerson Ovation 1X01046H01L (VE523) Bulk Power Supply converts 100–240 V AC input into a stable 24 V DC output. It provides up to 10 A of current, ensuring reliable power delivery for Ovation control systems. This module combines high efficiency with compact design to optimize system performance.
Key Features
- Wide AC Input Range: Supports 85–264 V AC with active power factor correction.
- High DC Output Stability: Maintains voltage between 23.5–28.5 V DC under varying load conditions.
- Overcurrent Capability: Supplies 1.5× nominal current for over 4 seconds while holding voltage above 20 V DC.
- High Efficiency: Operates at >90% efficiency, reducing heat losses and improving reliability.
- Low Ripple: Output ripple remains below 50 mV peak-to-peak from 0 Hz to 20 MHz.
- Compact Design: Allows flexible installation with minimal spacing requirements.
- DC-OK Signal: Integrated alarm relay signals when output drops below 18.5 V DC.
- Safe Terminals: Screw-type input, output, and DC-OK terminals support 1.5–6 mm² wire sizes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Emerson Ovation |
| Model | 1X01046H01L / 1X01046H01L1 (VE523) |
| Type | Bulk Power Supply |
| AC Input Voltage | 100–240 V (85–264 V range) |
| AC Input Frequency | 43–67 Hz |
| AC Input Current | 3.2 A @ 85 V AC; 1.0 A @ 264 V AC |
| AC Inrush Current | <12.7 A @ 120 V AC; <24.8 A @ 230 V AC |
| DC Output Voltage | 24 V DC (Adjustable 23.5–28.5 V DC) |
| DC Output Current | 10 A (1.5× Nominal for >4 s, voltage >20 V DC) |
| Power Rating | 240 W (360 W for 4 s, voltage >20 V DC) |
| Ripple | <50 mV peak-to-peak (0 Hz–20 MHz) |
| Hold-up Time | >20 ms at full load, 100–230 V AC input |
| Efficiency | >90% typical |
| Protection | Internal fused; DC-OK alarm relay, 200 mA/50 V DC |
| Terminals | Screw-type, solid & stranded 1.5–6 mm² |
| Screw Torque | Input: 4.4 lb-in; Output/DC-OK: 6 lb-in |
Dimensions & Weight
- Height: 123 mm (4.85 in)
- Width: 60 mm (2.36 in)
- Depth: 110 mm (4.36 in)
- Weight: 0.8 kg (1.7 lb)
- Origin: United States
Free Spacing Requirements
- Above & Below: 25 mm (0.98 in)
- Left & Right: 10 mm (0.39 in)
- Front: 15 mm (0.59 in)
Details
| Weight | 0.8 kg |
|---|---|
| Dimensions | 123 × 60 × 110 mm |
