Overview

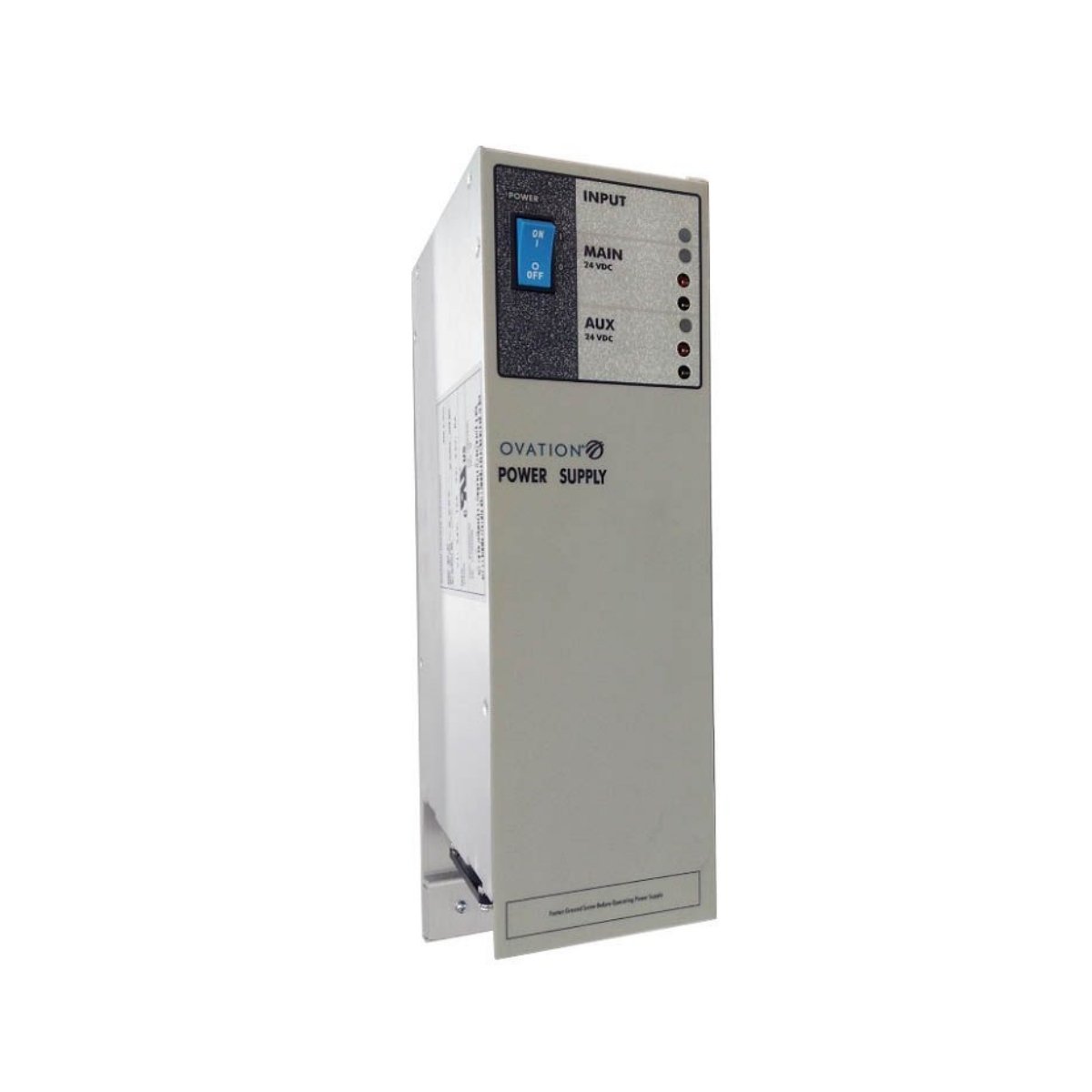

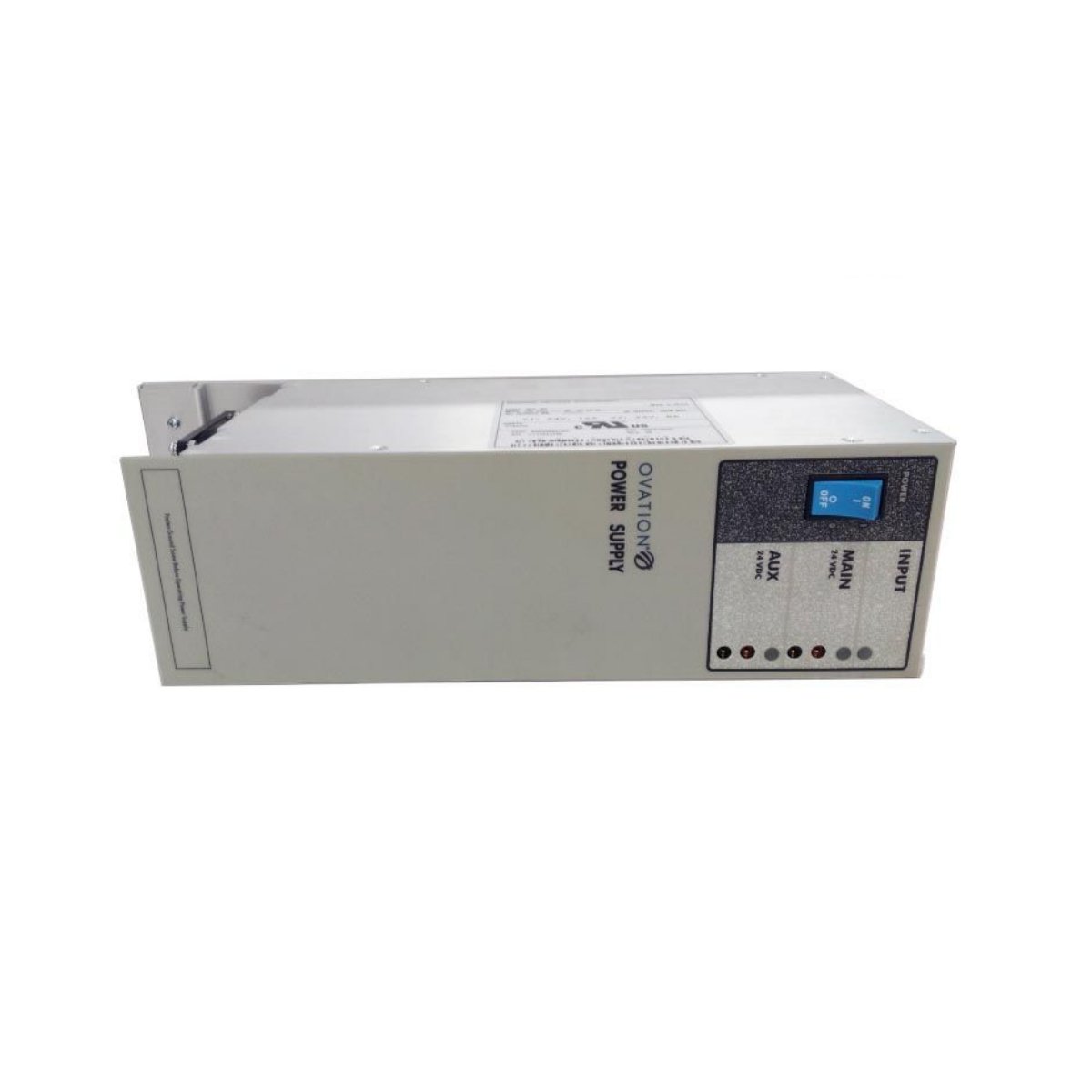

The Emerson Ovation 1X00416H01 WH5-2FF Power Supply Module delivers high-performance, stable power for industrial automation and process control systems. Designed for DIN-rail mounting, it ensures compact integration and efficient space utilization. With a wide AC input range, this module adapts to various power environments while maintaining reliable output, supporting critical Ovation system operations. Its robust design enables continuous operation in demanding industrial conditions.
Key Features
- High Output Power: Provides up to 500W to support industrial control devices and auxiliary systems.
- Dual Output Channels: Offers 24V 12A on Output 1 and 24V 8A on Output 2 for versatile power distribution.
- Wide Input Voltage Range: Accepts 100–240V AC at 8A, suitable for global power environments.
- Compact DIN-Rail Design: Enables easy installation in control cabinets and tight spaces.
- Reliable Industrial Operation: Ensures stable performance under continuous load and harsh conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Emerson Ovation |
| Series | Ovation |
| Model | WH5-2FF |
| Part Number | 1X00416H01 |
| Input Voltage | 100–240V AC |
| Input Current | 8A |
| Frequency | 50–60Hz |
| Output Power | 500W max |

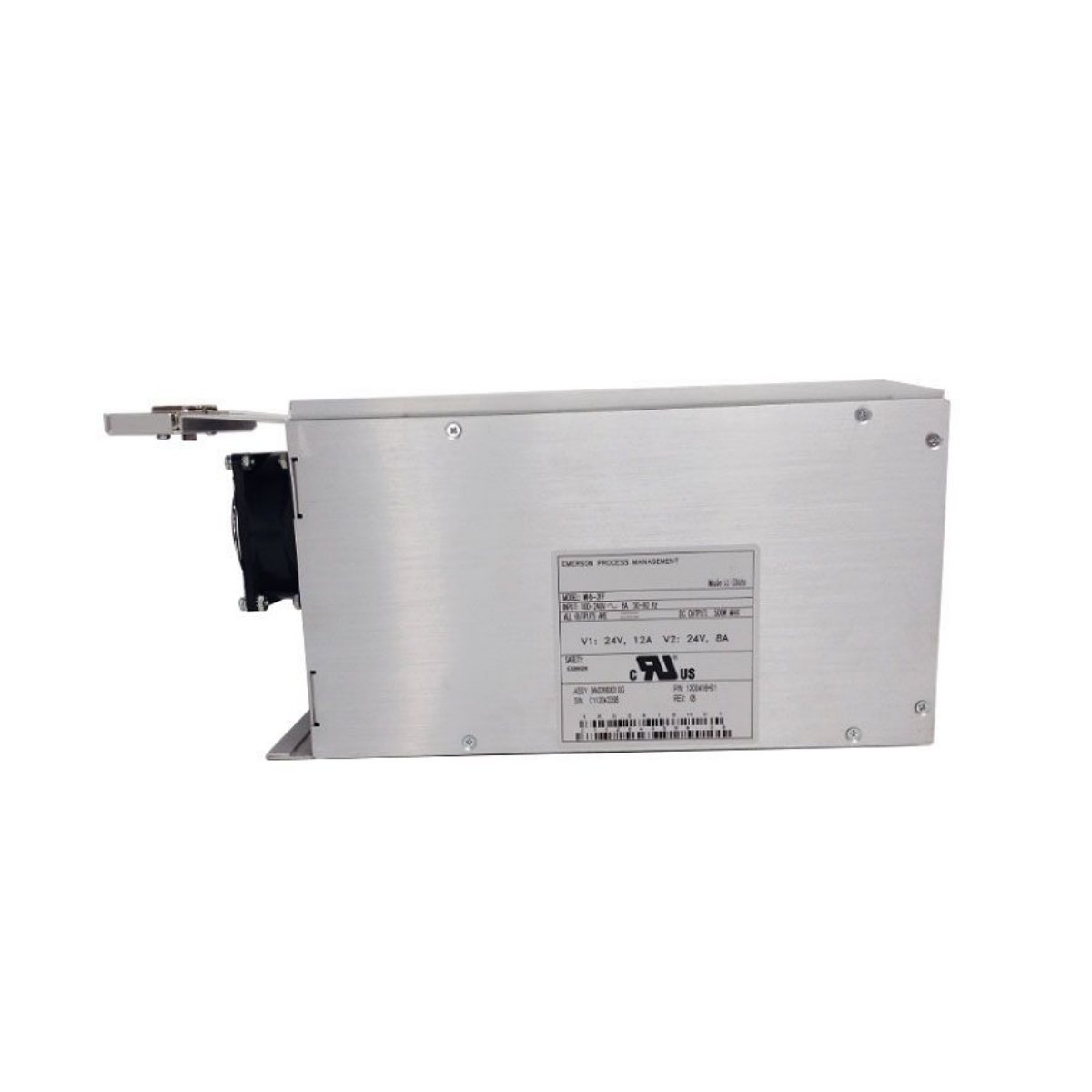

| Output 1 (V1) | 24V, 12A |
| Output 2 (V2) | 24V, 8A |
| Assembly Number | 9N02668010G |
| Serial Number | C111341093 |
| Revision | 08 |
| Country of Manufacture | China |
| Condition | Used, 4 pieces available |
| Reference Number | AE185/3.100 |
Applications and Advantages
The 1X00416H01 WH5-2FF module suits industrial automation, distributed control systems (DCS), and process management applications. Its dual-output design allows simultaneous powering of multiple devices, while the wide AC input ensures adaptability to different environments. Maintenance personnel benefit from easy installation and reliable operation, reducing downtime. Industries such as power generation, chemical processing, and water treatment rely on this module for stable and efficient power delivery, ensuring uninterrupted control system operation.
Dimensions & Origin
- Origin: China
- Dimensions: 19 × 7 × 15 cm
- Weight: 1.5 kg
Details
| Weight | 1.5 kg |
|---|---|
| Dimensions | 190 × 70 × 150 mm |
