Overview

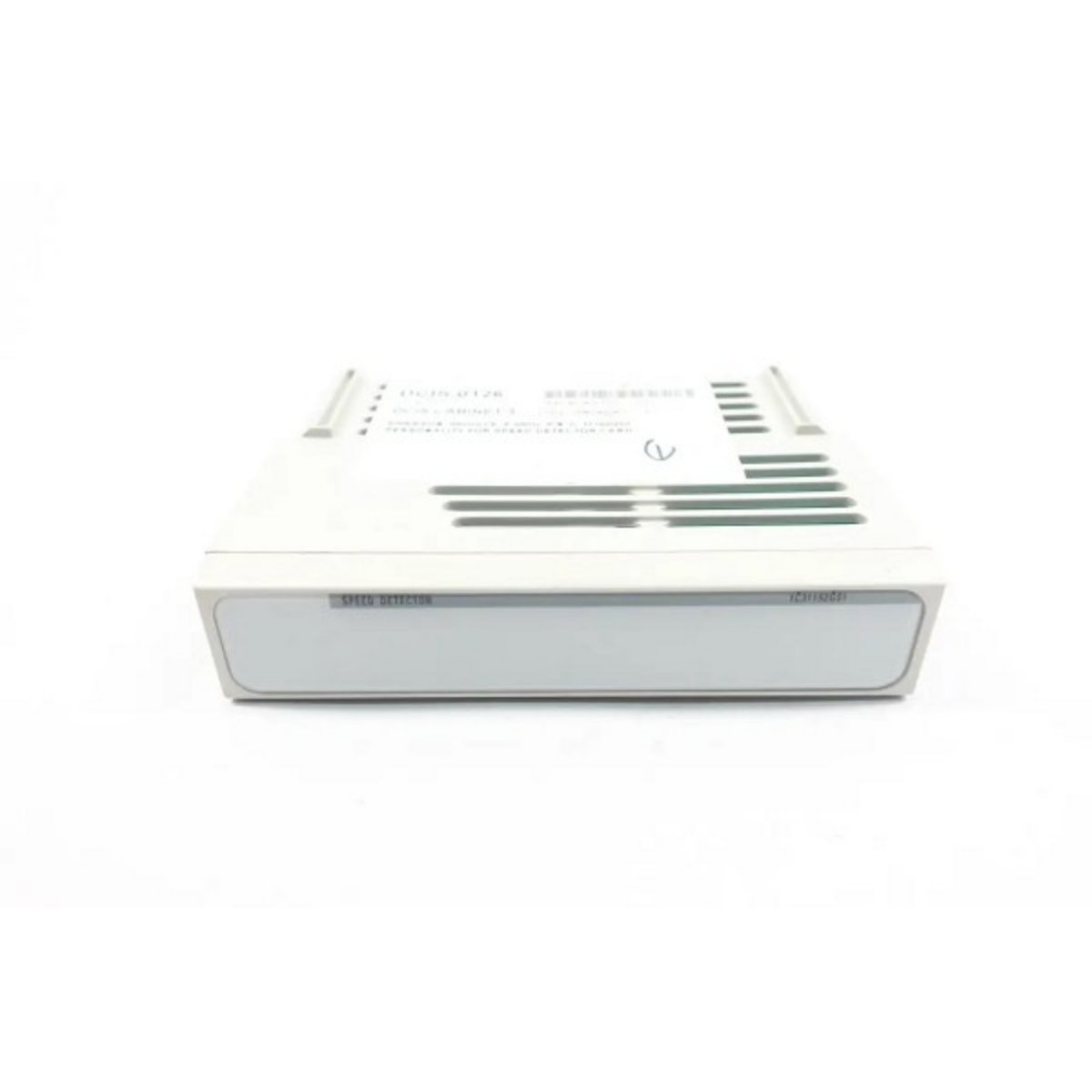

The Emerson Ovation 1C31192G01 Speed Detector Module delivers precise and reliable speed measurement for industrial automation systems. It supports both 32-bit and 16-bit speed outputs, enabling high-accuracy monitoring for turbines, motors, and rotating machinery. Its robust design ensures long-term stability in industrial environments.
Key Features
- High-Precision Measurement: Supports 32-bit and 16-bit speed outputs for detailed rotational monitoring.
- Wide Input Range: Measures speeds from 0.72 Hz up to 65,535 Hz to accommodate various industrial applications.
- Fast Update Rate: 16-bit speed output updates every 5 milliseconds for responsive control systems.
- Robust Electrical Protection: Withstands up to 140 VAC rms or 150 VDC input, ensuring reliable operation.
- Compact Design: DIN-rail mountable, enabling easy integration into existing Emerson Ovation control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Emerson Ovation |
| Model | 1C31192G01 |
| Module Type | Speed Detector Module |
| Channels | 1 |
| 32-Bit Speed Range | 0.72 Hz – 65,535 Hz |
| 16-Bit Speed Range | 200 Hz – 51,200 Hz |
| 32-Bit Resolution | 1/65,535 Hz |
| 16-Bit Resolution | 1 Hz |
| 32-Bit Accuracy | Max 0.0025% or [(25/10⁶)+(1/(24×10⁶×Update Period))]×100% |
| 16-Bit Accuracy | Max 0.0033% of sensor frequency input |
| Differential Input Impedance | 50 kΩ |
| Max Input Withstand Voltage | 140 VAC rms / 150 VDC |
| Max Usable Input Voltage | 200 V peak-to-peak |
| Max Off-State Input Voltage | 0.2 V peak-to-peak |
| Input Duty Cycle | 20% – 80% |
| Power Consumption | 4.8 W typical, 6.25 W max |
| Operating Temperature | 0°C – 60°C |
| Storage Temperature | -40°C – 85°C |
| Humidity | 0% – 95% non-condensing |
| Mounting | DIN-rail mountable |
Applications and Advantages
The 1C31192G01 module enhances industrial automation by delivering high-resolution speed data for motors, pumps, and turbines. Its fast response and wide input range support real-time control and predictive maintenance. Moreover, its robust design tolerates harsh environments, while seamless integration with Ovation Control Systems ensures consistent and accurate operational monitoring. Engineers can leverage this module to improve process efficiency and reduce downtime across industrial facilities.
Dimensions & Origin
- Origin: United States
- Dimensions: 23 × 17 × 6.5 cm
- Weight: 1.2 kg
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 230 × 170 × 65 mm |
