Overview

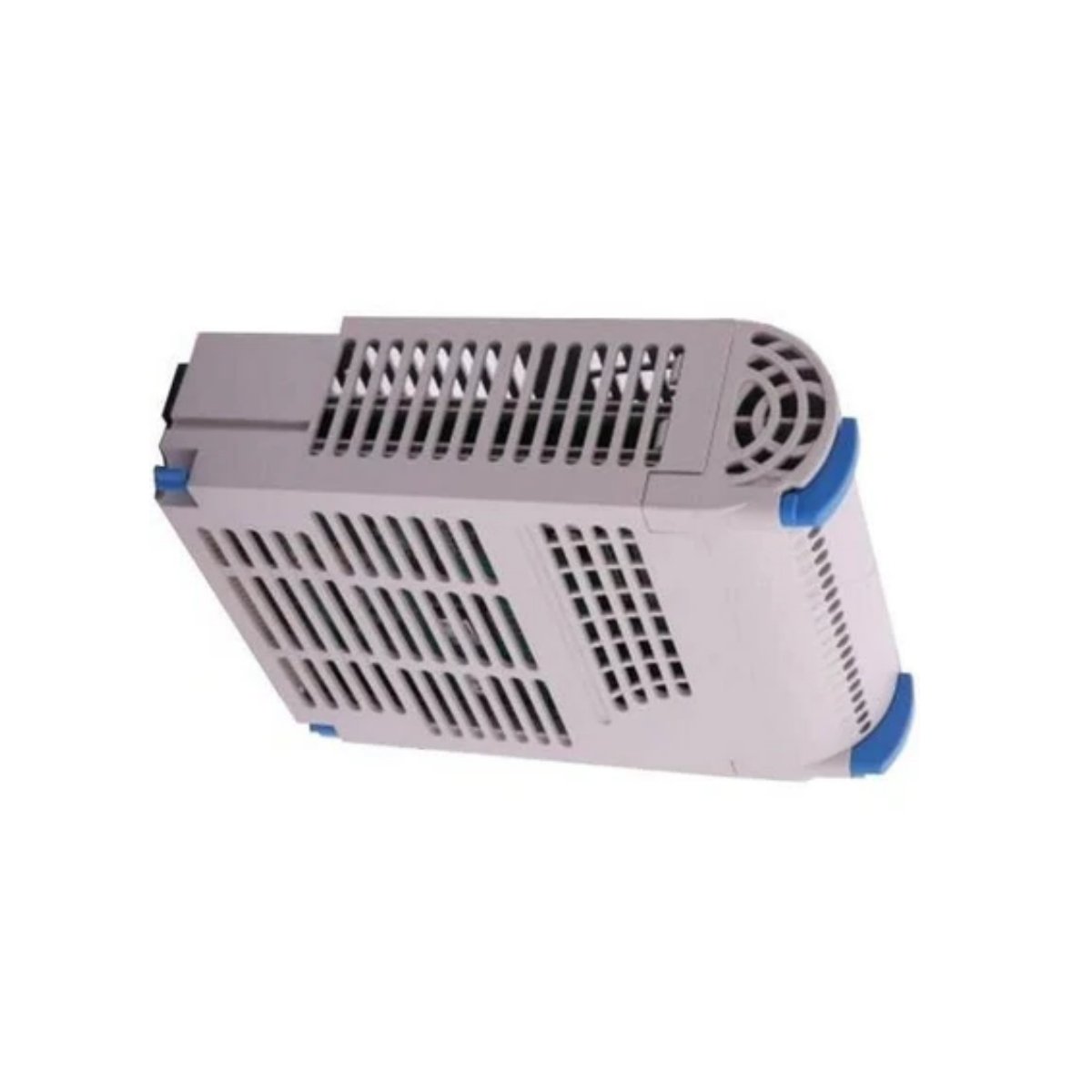

The Emerson Ovation 1C31122G02 Digital Output Module provides reliable high-speed control for industrial automation and process management. It features sixteen independent output channels capable of driving 5–60 VDC loads, supporting precise operation in distributed control systems. Its DIN-rail mountable design ensures easy installation and integration into existing Ovation Control Systems.
Key Features
- Sixteen Independent Output Channels: Each channel delivers up to 0.5A with total module capacity of 8A.
- Wide Output Voltage Range: Supports 5–60 VDC, suitable for diverse industrial devices and actuators.
- Fast Response Time: Less than 1 millisecond per channel, enabling real-time signal control.
- Channel-to-Channel Isolation: 500 VDC isolation enhances reliability and protects sensitive components.
- Efficient Power Consumption: Consumes a maximum of 5W while maintaining robust performance.
- Durable Industrial Design: Operates in temperatures from 0°C to 60°C with 5–95% non-condensing humidity.
- Global Safety Certifications: CE, UL, and cUL certifications ensure compliance with international standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Emerson Ovation |
| Model | 1C31122G02 |
| Module Type | 16-Channel Digital Output Module |
| Output Voltage | 5–60 VDC |
| Output Current | 0.5A per channel, 8A total |
| Number of Outputs | 16 channels |
| Isolation | 500 VDC channel-to-channel |
| Response Time | <1 ms |
| Power Consumption | 5 W maximum |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (W × H × D) | 20 × 10 × 5 cm |
| Weight | 0.35 kg |
| Mounting | DIN-rail mountable |
| Certifications | CE, UL, cUL |
| Compatibility | Ovation Control System |
Applications and Advantages
The 1C31122G02 module is ideal for industrial automation, process control, and factory automation applications. Its sixteen high-speed channels support reliable operation of multiple actuators, valves, and devices simultaneously. Fast response time ensures precise real-time control, while isolation safeguards sensitive equipment from electrical interference. The module’s DIN-rail design simplifies integration, and its broad voltage and temperature tolerance allow operation in diverse industrial environments. It seamlessly integrates with Emerson Ovation Control Systems, enhancing automation efficiency and system reliability.
Dimensions & Origin
- Origin: United States
- Dimensions: 20 × 10 × 5 cm
- Weight: 0.35 kg
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 200 × 100 × 50 mm |
