Overview

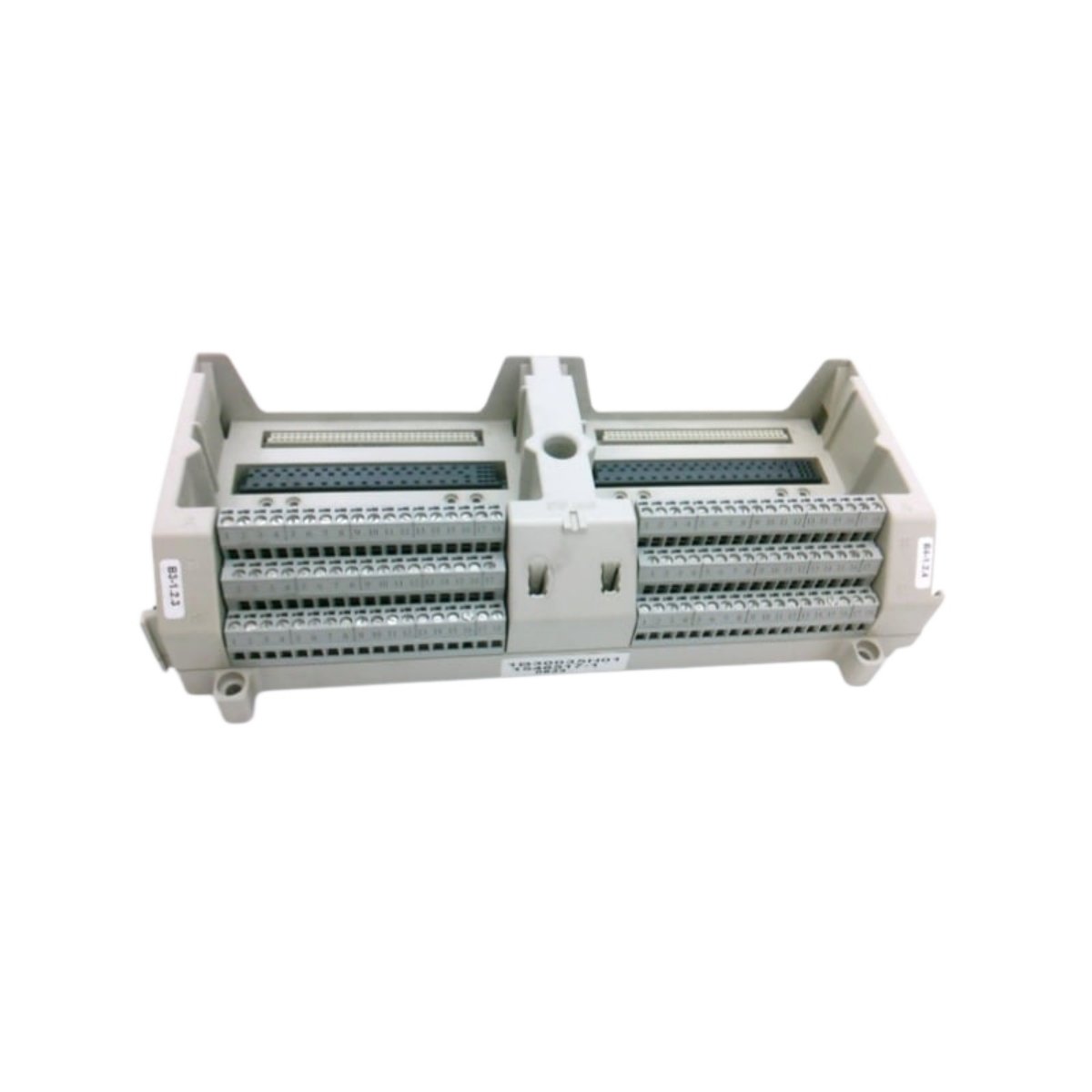

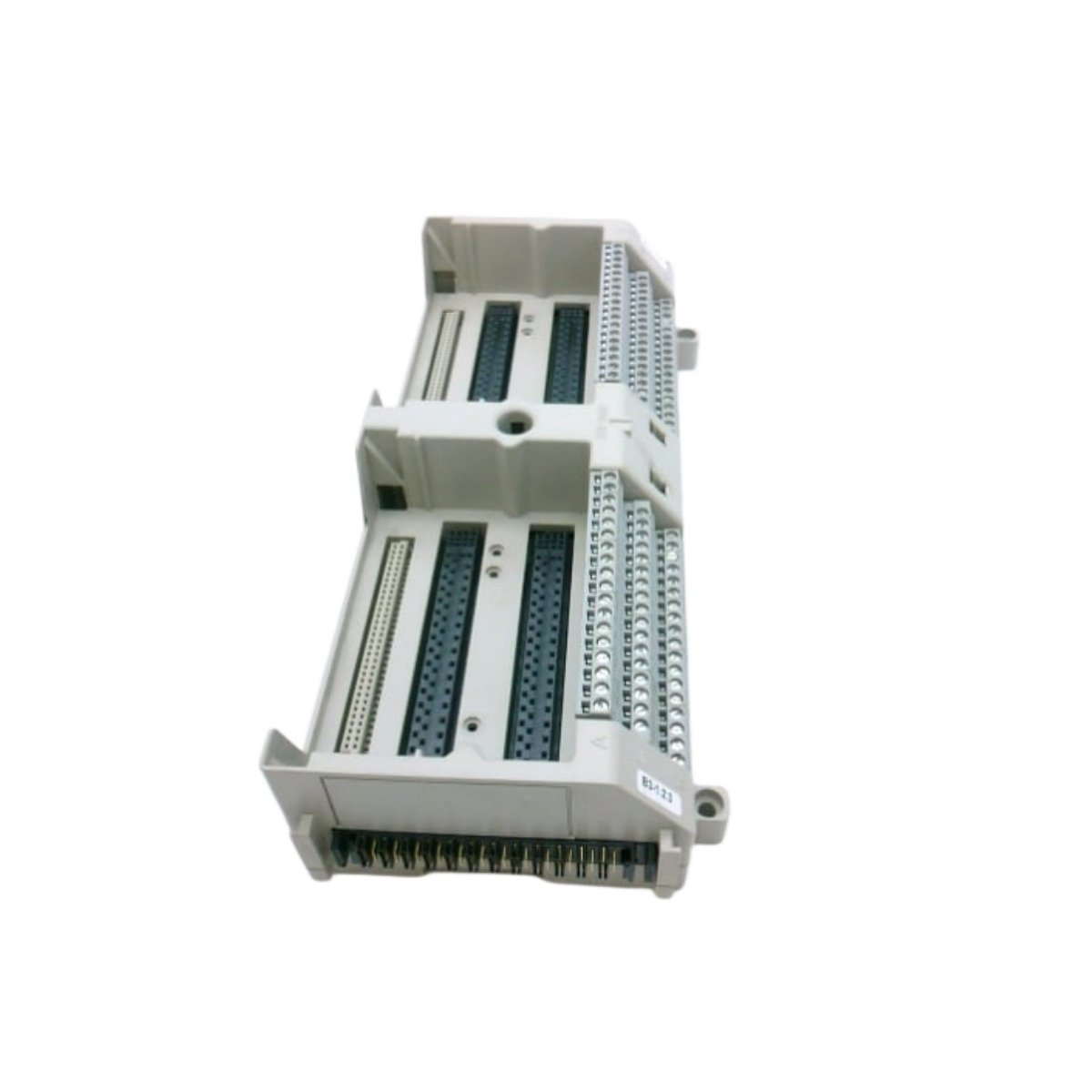

The 1B30035H01 I/O Termination Base from Emerson Ovation provides reliable high-voltage monitoring for industrial automation systems. Moreover, it supports up to two high-voltage input channels, ensuring versatile monitoring capabilities. In addition, the module offers galvanic isolation between high-voltage inputs and low-voltage outputs, enhancing safety and maintaining signal integrity. Its compact design allows integration into space-constrained control panels without sacrificing performance.
Key Features
- Two-slot standard I/O board delivers high-voltage divider functionality for Emerson Ovation control systems.
- Configurable input voltage ranges up to 500 VAC/VDC enable adaptable deployment in various applications.
- Integrated surge protection safeguards connected systems from voltage spikes and transient events.
- High isolation voltage of 2500 VAC enhances operator safety and protects downstream electronics.
- Compact and lightweight design facilitates installation in tight or densely populated control panels.
- Accurate output voltage range of 0–10 VDC provides precise signal representation with ±0.5% full-scale accuracy.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Emerson Ovation |
| Model | 1B30035H01 |
| Module Type | I/O Termination Base |
| Slots | 2 standard I/O slots |
| Input Voltage Range | Up to 500 VAC/VDC |
| Output Voltage Range | 0–10 VDC |
| Accuracy | ±0.5% of full scale |
| Isolation Voltage | 2500 VAC |
| Operating Temperature | -40°C to +70°C |
| Dimensions (W × H × D) | 106.7 mm × 129.5 mm × 25.4 mm |
| Mounting | Standard Ovation I/O module |
Advantages
- Reliable high-voltage monitoring ensures safe and accurate industrial operation.
- Versatile configuration options support diverse automation applications.
- Compact form factor simplifies integration into dense control panel setups.
- Surge protection and isolation maintain system longevity and operational reliability.
Origin, Dimensions, and Weight
- Origin: USA
- Dimensions: 106.7 mm × 129.5 mm × 25.4 mm
- Weight: 220 g
Details
| Weight | 0.22 kg |
|---|---|
| Dimensions | 106.7 × 129.5 × 25.4 mm |
