Overview

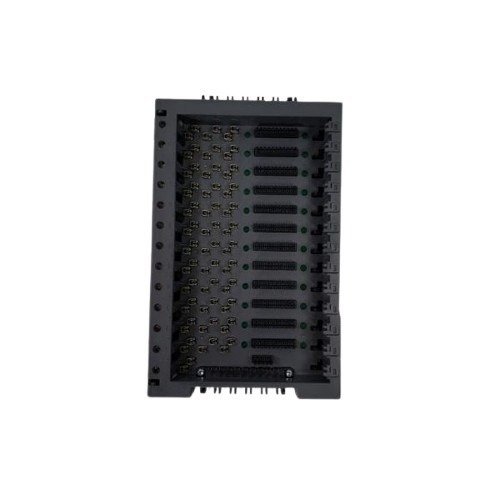

The Emerson KL4201X1-BA1 CHARM Baseplate provides robust power and connectivity for CHARM I/O modules, supporting distributed control systems. Moreover, it withstands harsh industrial environments while ensuring reliable operation. This baseplate simplifies integration, enabling engineers to maintain system performance efficiently.
Key Features
- CHARM Bus Power: 6.3 VDC at 4 A, delivering stable power to connected modules.
- Field Circuit Power: 24 VDC at 10 A for reliable field device operation.
- Environmental Durability: Operates from -40 °C to +70 °C, resistant to vibration and shock.
- Contaminant Protection: Complies with ISA-S71.04 Class G3, ensuring minimal degradation from airborne chemicals.
- Humidity Tolerance: Functions in 5%–95% relative humidity without condensation.
Technical Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -40 °C to +70 °C |
| Shock Resistance | 10g, ½ sine wave, 11 ms |
| Vibration Resistance | 2–13.2 Hz: 1 mm peak-to-peak 13.2–150 Hz: 0.7g |
| Airborne Contaminants | ISA-S71.04 –1985 Class G3 |
| Humidity | 5%–95% non-condensing |
| CHARM Bus Power | 6.3 VDC, 4 A |
| Field Circuit Power | 24 VDC, 10 A |
Typical Applications
This baseplate integrates seamlessly with CHARM I/O modules in industrial process plants. Therefore, it suits applications such as distributed control systems, critical machinery monitoring, and environments with extreme vibration or temperature conditions. In addition, engineers can deploy it for power distribution across multiple CHARM modules.
