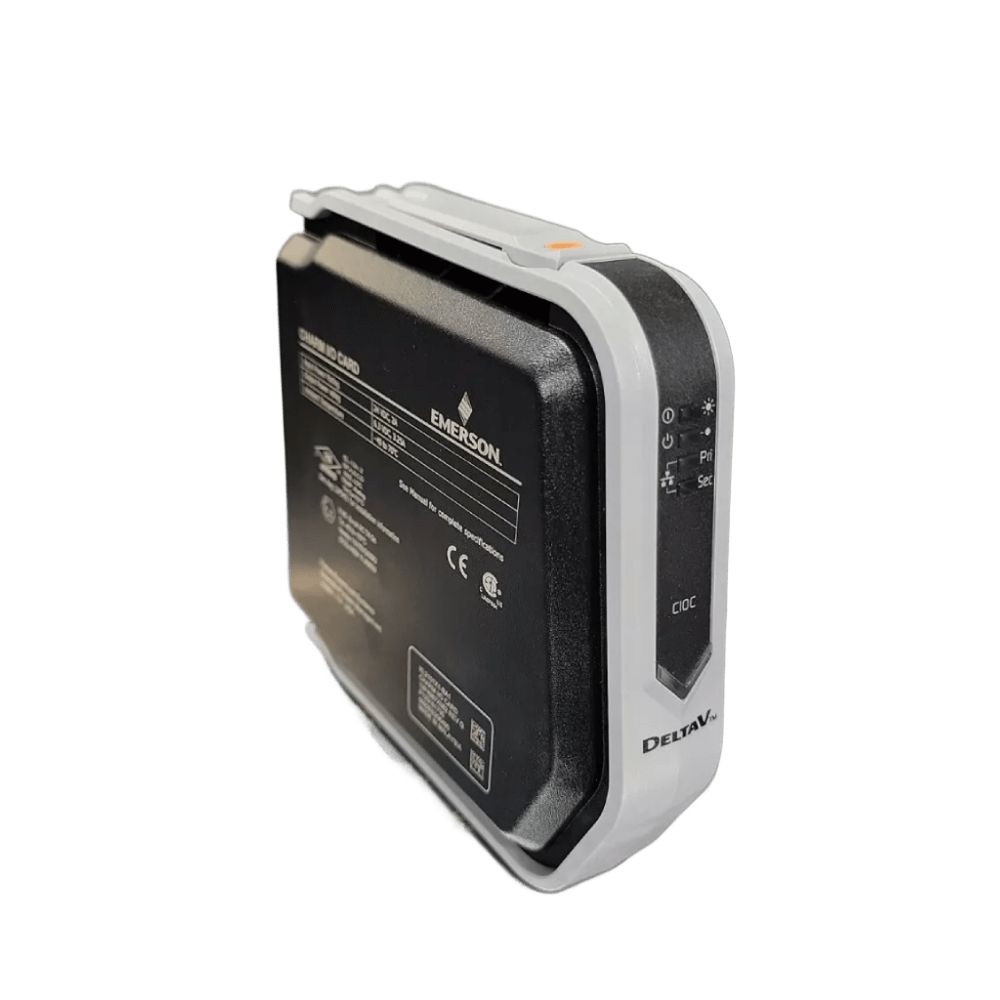

The Emerson KL2101X1-BB1 CHARM I/O Card 2 delivers precise digital I/O performance for DeltaV™ systems. It supports robust communication and reliable control in hazardous areas. This unit integrates seamlessly with your existing infrastructure, ensuring high operational uptime. Moreover, its compact design simplifies installation within the CHARM subsystem.
Key Benefits of KL2101X1-BB1
- Hazardous Area Certified: II 3G Ex ec IIC Gc, FM, IECEx, and UKEX approvals.
- Extreme Environment Tolerance: Operates between -40 °C to +70 °C.
- Vibration & Shock Resistance: Survives 10 g half-sine shock and 0.7 g vibration.
- Airborne Contaminant Protection: Meets ISA-S71.04-1985 G3 standard.
- Reliable Power Consumption: 35 VDC at 1 A ensures stable operation.
Technical Specifications
| Feature | Details |
|---|---|
| Input Power | 35 VDC @ 1 A |
| Ambient Temperature | -40 °C to +70 °C |
| Shock | 10 g half-sine, 11 ms |
| Vibration | 1 mm p-p 2–13.2 Hz; 0.7 g 13.2–150 Hz |
| Humidity | 5–95% non-condensing |
| Certifications | FM, IECEx, UKEX, Class I Div 2, Zone 2 |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
Typical System Integration
The KL2101X1-BB1 integrates effortlessly with DeltaV™ S-Series and CHARMs hardware. It provides dependable I/O for control loops, safety interlocks, and monitoring applications. Furthermore, its installation aligns with Zone 2 hazardous area requirements, minimizing downtime risks.
Support & Maintenance
- No user-serviceable parts; do not disassemble.
- Calibration is not required.
- Always remove power before insertion or removal.
- Refer to manuals 12P2046 and DeltaV™ S-Series installation guides for detailed instructions.
FAQ
Q1: Is this unit brand new and original?
Yes, the KL2101X1-BB1 is fully original Emerson stock, ready to ship.
Q2: How long does shipping take and which carriers are available?
Shipping typically takes 3 days–2 weeks depending on order size, with DHL or FedEx as common options.
Q3: Can I return it if there’s a quality issue?
Yes, Emerson supports returns for defective units within 30 days of delivery.
Details
| Weight | 1 kg |
|---|
