Product Overview

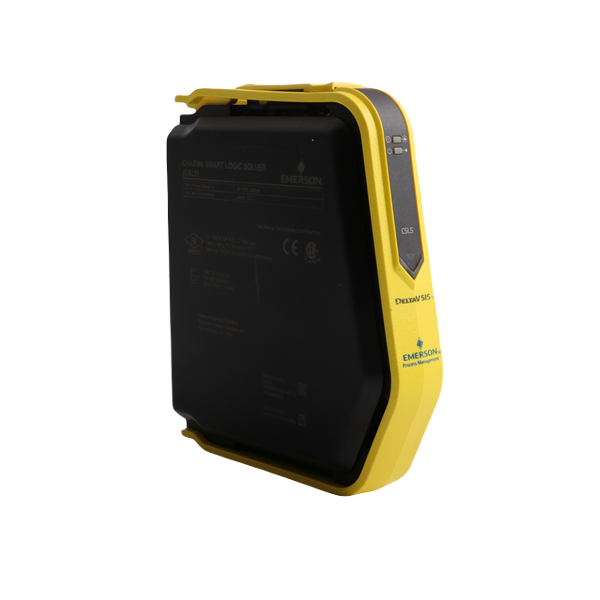

The KL2001X1-BA1 CHARMs Smart Logic Solver (CSLS) offers advanced safety-critical control functions in hazardous atmospheres. Moreover, it is fully certified for ATEX, IECEx, UKEX, and North American Class I Division 2 applications. In addition, the device operates reliably under extreme temperatures and harsh environmental conditions. Its compact design supports integration within standard control cabinets for industrial automation systems.
Key Features & Functional Highlights
- Advanced Safety Functions: Provides robust safety logic operations for critical systems in hazardous areas.
- Wide Certification Coverage: Includes ATEX, IECEx, UKEX, and FM approvals for gas and vapor environments.
- Power Requirements: Operates on +24 VDC at 325 mA for stable and efficient performance.
- Environmental Tolerance: Operates between -40°C and +70°C, withstanding shock and vibration.
- Maintenance-Free Design: No calibration or user-serviceable parts, reducing operational downtime.
- Status and Identification: Clear labeling of serial number, location, and manufacture date supports asset tracking.
Technical Specifications
| Specification Parameter | Value |
|---|---|
| Input Power | +24 VDC, 325 mA |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Shock Resistance | 10g, ½ sine wave, 11 ms |
| Vibration Resistance | 1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Relative Humidity | 5% – 95%, non-condensing |
| Airborne Contaminant Resistance | ISA-S71.04-1985 Class G3 |
| Hazardous Area Certification | ATEX II 3G Ex ec IIC Gc, IECEx, UKEX, FM |
| Approvals | FM17CA0145U, FM17US0286U |
| Maintenance | No user-serviceable parts, calibration not required |
System Integration & Applications
The KL2001X1-BA1 module integrates seamlessly into DeltaV CHARMs systems. Therefore, it is ideal for:
- Hazardous-area control applications requiring advanced safety logic.
- Industrial automation systems with redundant or fail-safe configurations.
- Zones with explosive gases or vapors where ATEX and IECEx compliance is mandatory.
- Integration with other DeltaV S-series or CHARMs hardware for scalable safety solutions.
Moreover, its compact footprint allows flexible installation within standard industrial cabinets.
Details
| Weight | 0.001 kg |
|---|
