Extending DeltaV I/O Capability into Challenging Environments

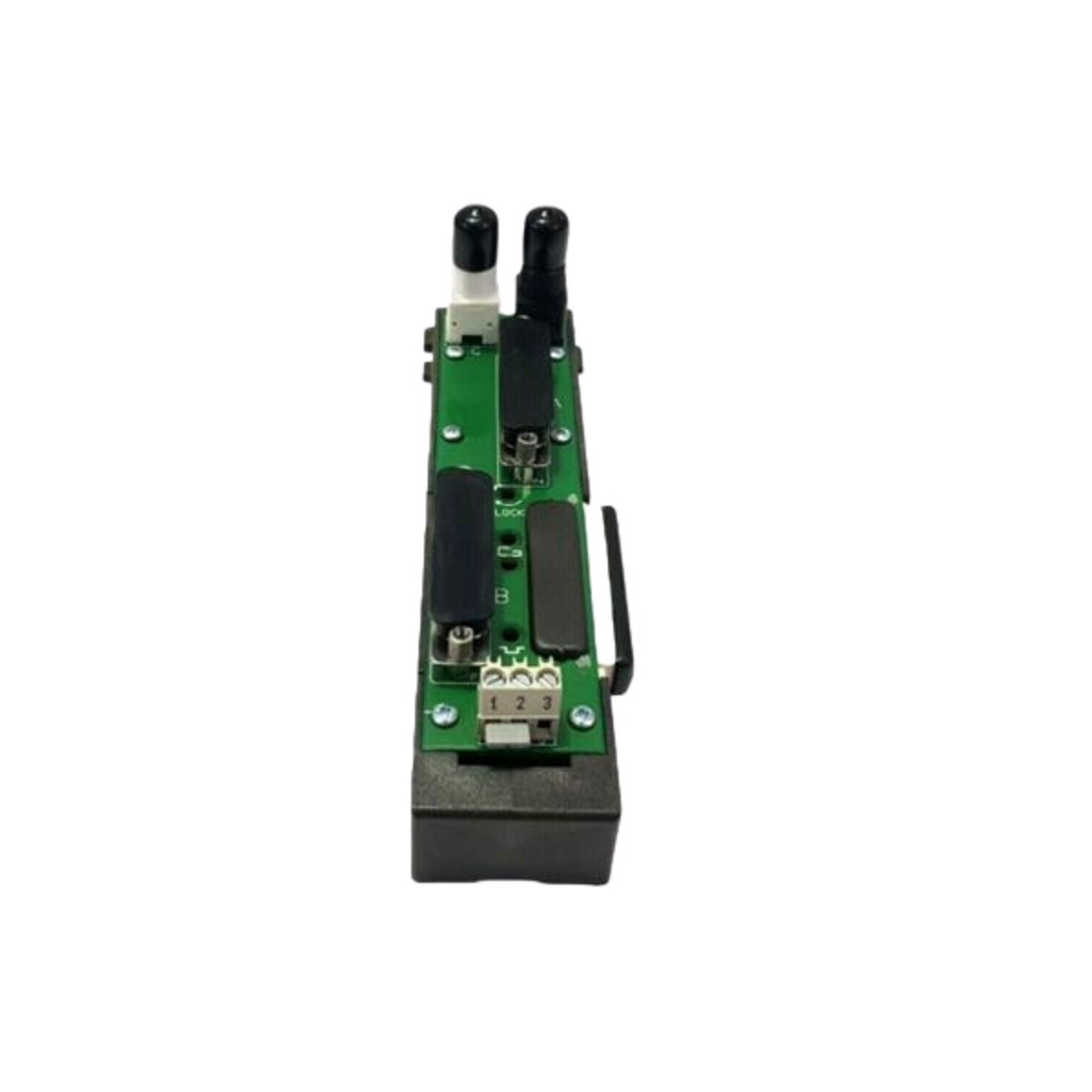

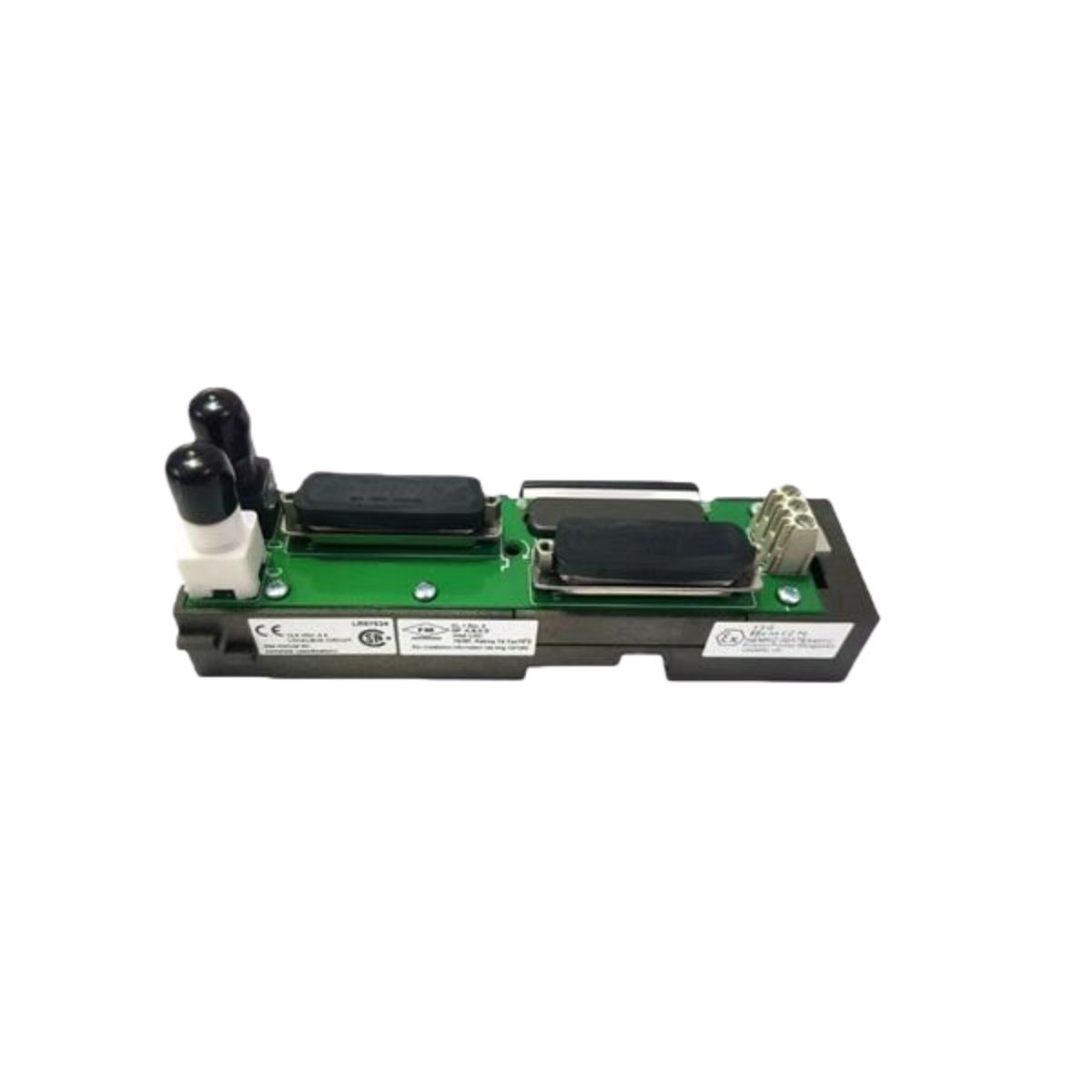

The Emerson KJ4001X1-NB1 12P3368X012 is a single-slot I/O carrier extender for the DeltaV system. This module provides a robust interface for connecting remote I/O modules in difficult locations. Specifically, it enables safe and reliable operation within classified hazardous areas.
Certified for Safe Operation in Volatile Atmospheres
This extender carries certifications for both Division 2 and Zone 0/1 hazardous locations. Consequently, it complies with Class I, Groups A through G requirements for flammable gases and dusts. Therefore, the KJ4001X1-NB1 ensures system safety in volatile industrial processing environments.
Comprehensive Technical Specifications and Connectivity
The Emerson KJ4001X1-NB1 offers a versatile mix of I/O channels and communication protocols. Its detailed technical parameters are summarized in the following table.
| Parameter Category | Specification |
|---|---|
| Manufacturer & Model | Emerson KJ4001X1-NB1 12P3368X012 |
| Product Category | I/O Carrier Extender / Interface Module |
| Compatible System | Emerson DeltaV Distributed Control System |
| Slot Width | 1-wide Carrier |
| Primary Power Supply | 24 VDC (Operating Range: 24 VDC to 230 VDC) |
| Analog Input Channels | 8 channels, 4-20 mA signal type |
| Digital Input Channels | 16 channels, 24 VDC sinking/sourcing |
| Digital Output Channels | 8 channels, 24 VDC |
| Communication Protocols | Ethernet/IP, Modbus TCP/IP, OPC, DeltaV Link |
| Hazardous Area Certification | Class I, Div 2, Groups A,B,C,D,E,F,G; Zone 0/1 |
| Operating Temperature Range | -20°C to +70°C |
| Physical Dimensions (H x W x D) | 100 mm x 120 mm x 30 mm (approx.) |
| Construction | Ruggedized housing for shock, vibration & harsh conditions |
| Installation | Tools-plug-in design for existing DeltaV I/O chassis |
| Primary Interface | High-density electrical connector for field cabling |
Ruggedized Design for Demanding Industrial Installations
This module features a resilient construction from durable industrial-grade materials. Its design withstands significant shock, vibration, and wide temperature swings. Furthermore, the compact dimensions of the KJ4001X1-NB1 facilitate installation in space-constrained panels and enclosures.
Simplifying System Expansion and Integration
The extender enables easy integration of remote I/O without complex engineering. It seamlessly plugs into the standard DeltaV chassis using a tool-less connection. Ultimately, the Emerson KJ4001X1-NB1 provides a flexible and safe solution for expanding control system reach.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 170 × 145 × 65 mm |
